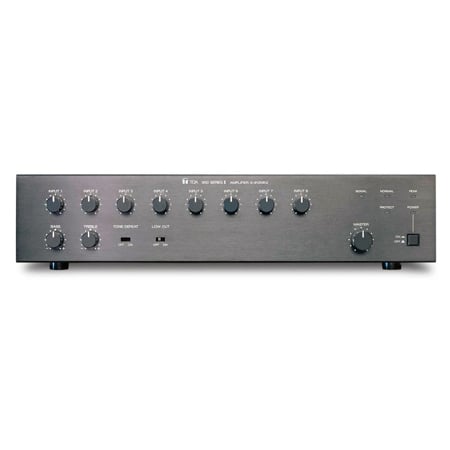

TOA A-912MK2 120 Watt Modular Mixer / Amplifier

ITEM #: A-912MK2 MFG #: A-912MK2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,061.00

Our Price:

$857.00

Availability: In Stock
iAvailability Description Popup


    A-912MK2 - Overview

    The TOA 900 SERIES are widely recognized as the industry standard in installed sound system amplification. When reliability and performance are critical - such as in paging and music distribution for airport, hospital, and industrial sound systems - you can count on the TOA 900 Series to perform consistently, day-in and day-out. This series features the most flexible choice of modular inputs (35) available to the system designer. The A-912MK2 (120W) Six Channel Amp offers 8 input slots and two levels of paging priority.

    High Performance
    The A-912MK2 Modular Mixer/Amplifier is engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation.

    Modular Design
    Eight module slots allow you to easily configure custom configurations choosing from over fifty TOA plug-in modules with an extensive array of features and connector types. You can increase the input capacity by connecting a second mixer or mixer/amplifier to the rear-panel Bridge In/Out jack.

    Versatile Features
    Outputs include transformer isolated 25 V, 70 V and 8 ohm plus a direct low-impedance mode if non-transformer operation is required. Multiple paging priorities are easily configured using optional mute-type modules activated by external switch-closure or mute-send modules. Pre-Out/Power-In jacks allow connection of external signal processing between the mixer and amplifier sections. Other features include protection circuitry, auxiliary output, bass/treble controls and remote master volume terminals. The 900 Series Mixer/Amplifiers are UL and cUL Listed and carry a five year warranty.

    • Features:

      • Modular Eight Channel Mixer/Amplifiers for paging, background/foreground music distribution and music/messaging-on-hold.
      • Proven TOA Quality and Reliability
      • Engineered for High Performance with wide frequency response, very low noise and distortion, and excellent output regulation.
      • Three Models: A-903MK2 (30 W), A-906MK2 (60 W), A-912MK2 (120 W)
      • Eight Module Slots accept any combination of TOA plug-in modules for custom system configurations.
      • 25 V, 70 V and 8 Ohm Transformer-Isolated Speaker Outputs with screw terminal connector and protective cover plate (A-903MK2: 4 ohm).
      • Direct Low-Impedance Output Mode bypasses output transformer.
      • Dual Mute Bus permits multiple levels of paging priority using optional mute-type modules.
      • External Mute Terminals for activating mute function with external switch closure.
      • Remote Master Volume Terminals for control with an external 10k ohm linear-taper potentiometer.
      • Individual Channel and Master Volume Controls.
      • Bass/Treble Tone Controls with tone defeat switch.
      • Low Cut Switch to limit low frequency response.
      • Auxiliary Output for connecting an external mixer or recording device.
      • Insert Jacks for connecting external signal processing.
      • Bridging Input/Output for input expansion or recording device.
      • Normal, Clip, Power, Protect, and Signal Indicators provide unit status.
      • Rear Panel AC Convenience Outlet for powering external equipment
      • Turn-On Delay disconnects output during power-up.
      • Over-current and Thermal Protection Circuitry prevents potential damage from overload, short-circuit and overheating.
      • Volume Control Security Knobs Included (4)
      • Optional Rack-Mount Kit, MB-25B
      • UL / cUL Listed
      • Five Year Warranty

    • Specifications:

      • Type: 8-channel mixer power amplifier
      • Power Requirement: AC mains, 120 V, 60 Hz
      • Power Consumption: 180 W
      • Output Power: 120 W RMS
      • Power Band Width: (D) 20 ~ 20,000 Hz, 0.5% THD, (T) 50 ~ 20,000 Hz, 0.5% THD
      • Frequency Response: (D) 20 ~ 20,000 Hz, ±1 dB, (T) 20 ~ 15,000 Hz, ±1 dB, (T) 20 ~ 20,000 Hz, +1 dB, -3 dB
      • T.H.D: 0.02% at 1 kHz, rated output
      • Inputs: Eight Input Ports: Each port accepts any input modules. One Bridging Input/Output
      • Input Sensitivity /Impedance: Input Port #1 to #8: 100 mV/10 kΩ
      • Bridging Input/Output: 100 mV/3.3 kΩ
      • Preamp OUT /Power Amp IN: 1000 mV into 600 Ω/1000 mV, 10 kΩ
      • Outputs(T)=Transformer (D)=Direct: Main (T): 8 Ω, 25 and 70 volts, balanced, Main (D): 4 Ω, unbalanced, Aux: 10 kΩ, 1 V
      • Output Regulation(1kHz): (D) Less than 0.5 dB, no load to full load, (T) Less than 1.0 dB, no load to full load
      • S/N Ratio(Band Pass 20 ~ 20,000 Hz) Tone defeat switch on: Master volume min: 90 dB, Master volume max: 77 dB, Power amplifier only: 105 dB
      • Tone Controls: Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
      • Controls: 8 Input gain control 1 Master gain control 1 Bass control, 1 Treble control 1 Power ON/OFF switch 1 Tone defeat switch, 1 Low-Cut switch (60 Hz, 6 dB/octave)
      • Indicators: 1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
      • Protection: Self-protection, with AC fuse (inside)
      • Connectors: Input No.1 to No.8: Card-edge connector, Bridging, Mixer preamp. output, Power amp. input, Aux output: RCA phono jack, Output: Screw-terminal strip, Mute, Remote VR: Screw-terminal strip, AC outlet: 3-pin grounding type, AC power cord/plug: SJT, 3-prong type
      • Temperature Range: 12°F ~ 140°F
      • Finish: Black
      • Dimensions(WxHxD): 16.54" x 3.90" x 14.09"
      • Weight: 25.13 lb

    • Warranty:

      • 5 Years

    • GTIN:

      0192223056862
