Atlona AT-OME-EX-KIT Omega 4K/UHD HDMI Over HDBaseT TX/RX with USB - Control and PoE

ITEM #: ATNO-OME-EX-KIT MFG #: AT-OME-EX-KIT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ATNO-OME-EX-KIT

AT-OME-EX-KIT - Overview

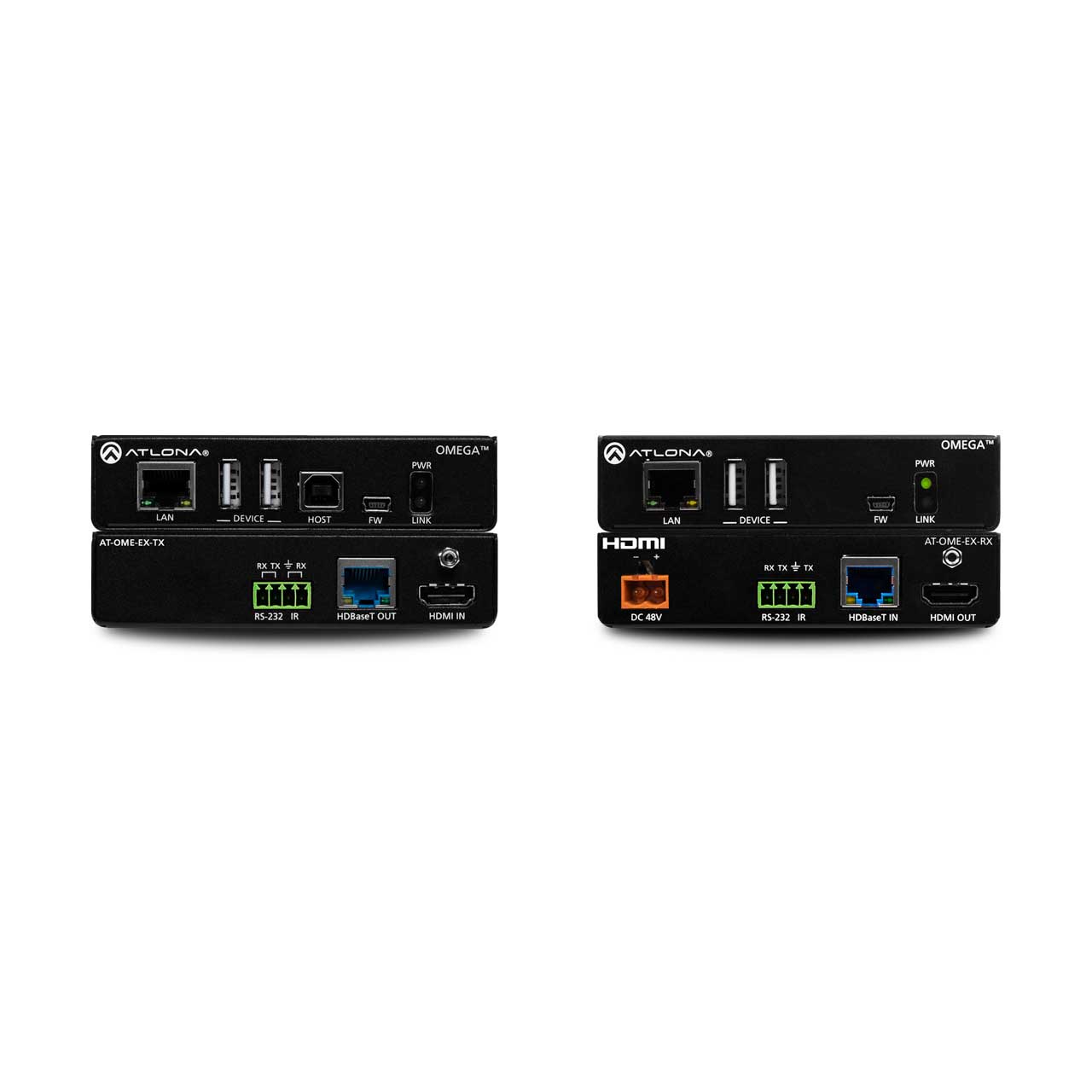

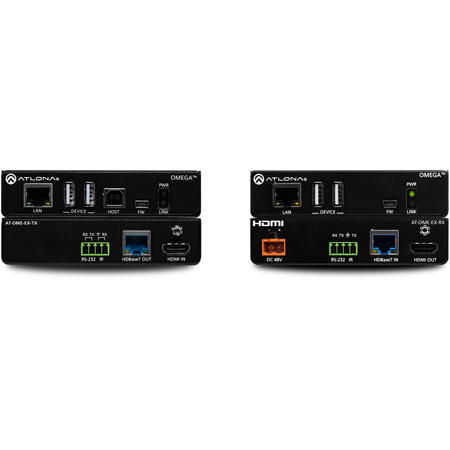

The Atlona AT-OME-EX-KIT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the OmegaT Series of integration products for modern AV communications and collaboration, the OME-EX-KIT is HDCP 2.2 compliant and extends IR, RS-232, and IP control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX transmitter includes a USB 2.0 host interface for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. The OME-EX-RX receiver provides two USB interfaces for devices such as a camera, soundbar, or display. The transmitter and receiver are available separately, for use with other Omega Series integration products.

USB Extension for Video Conferencing with Zoom, Skype for Business, Microsoft Teams, and More
The OME-EX-KIT features integrated USB extension over HDBaseT up to 330 feet (100 meters). This capability, plus interfacing for host PCs and USB peripherals makes the OME-EX-KIT ideal for video conferencing and UC (unified communications) platforms such as Zoom, Skype® for Business, Microsoft® Teams®, Cisco® Webex®, BlueJeans, and GoToMeeting®. Available from Atlona is the AT-HDVS-CAM PTZ camera with USB interface.

Applications

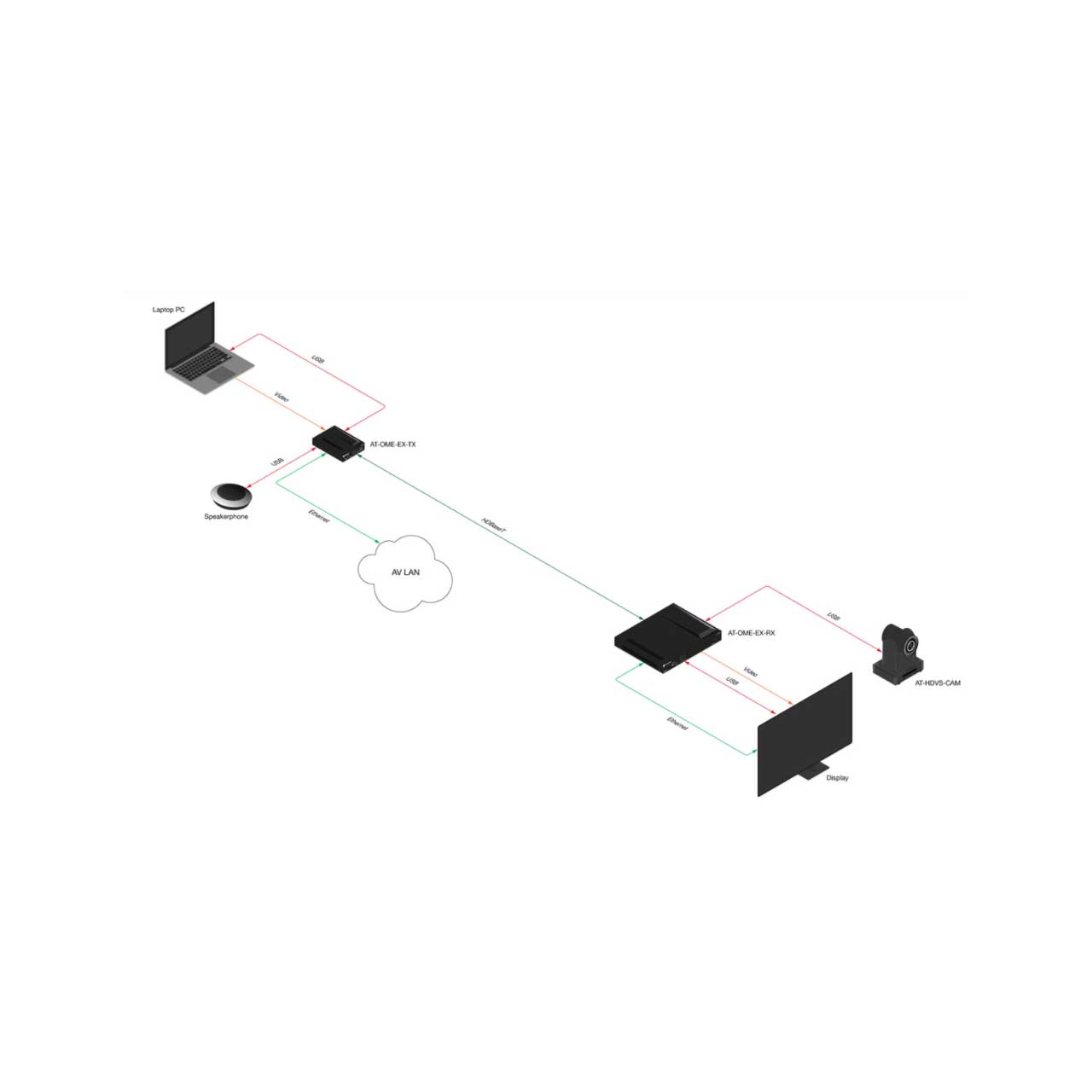

Video conferencing - The OME-EX-KIT is ideal for soft codec and web-based conferencing applications, with the ability to integrate with a PC and speakerphone or microphone at a meeting table, and a camera or soundbar at the wall-mounted display.
Interactive displays - The OME-EX-KIT can also provide AV and USB extension for a touch-enabled display, allowing remote PC control at a meeting table or other location.

The OME-EX-KIT incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The receiver remotely powers the transmitter over HDBaseT. The Ethernet ports on the transmitter and receiver are for IP pass-through.

  • Features:

    • HDBaseTTM extender kit for HDMI®, Ethernet, power, control, and USB
    • USB 2.0 interfacing and extension up to 330 feet (100 meters)
    • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
    • HDCP 2.2 compliant
    • Transmitter powered by receiver over HDBaseT
    • Also available: AT-OME-EX-KIT-LT (no Ethernet, 70 meter extension)


  • Specifications:

    • Video
    • HDMI Specification: HDMI 2.0, HDCP 2.2
    • TMDS Clock: 300 MHz
    • UHD/HD: 4096x2160(DCI)@60*/30/24 Hz, 3840x2160(UHD)@60*/50/24/25/30 Hz, [email protected]/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz
    • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit
    • * 4K/UHD @ 60 Hz only supports 4:2:0.

      Audio
    • Pass-through: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolbyr Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmosr, DTSr, DTS-HD Master AudioT, DTS:X
    • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
    • Bit Depth: Up to 24-bit

      USB
    • Signal: 2.0
    • Maximum Data Rate: 120 Mbps

      Control
    • CEC: Pass-through
    • RS-232: Pass-through from control system to sink device; supports baud rates from 2400 to 115200
    • IR: Pass-through from control system to sink device
    • IP: Pass-through from control system to sink device up to 100 Mbps over HDBaseT

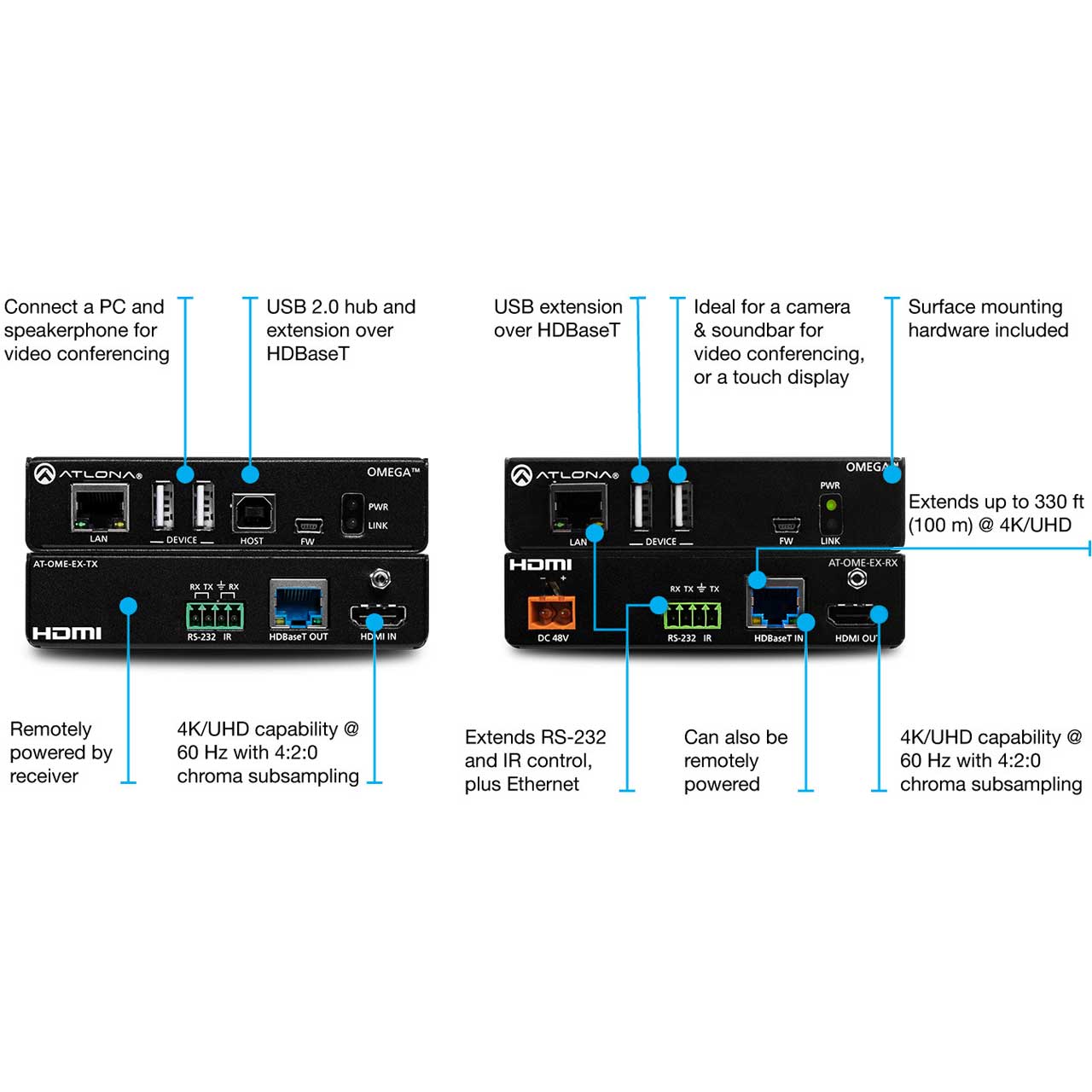

      Connectors
    • HDMI IN: 1 - Type A, 19-pin female (transmitter)
    • HDMI OUT: 1 - Type A, 19-pin female (receiver)
    • FW: 1 - mini-USB (transmitter / receiver)
    • HDBaseT IN: 1 - RJ45 (transmitter)
    • HDBaseT OUT: 1 - RJ45 (receiver)
    • HOST: 1 - USB Type-B (transmitter)
    • DEVICE: 2 - USB Type-A (transmitter / receiver)
    • LAN: 1 - RJ45, 10/100 Mbps (transmitter / receiver)
    • RS-232 / IR: 1 - captive screw, 4-pin (transmitter / receiver)
    • DC 48V: 1 - 3-pin DIN (receiver)

      Indicators and Controls
    • PWR LED indicator: 1 - LED, green
    • LINK LED indicator: 1 - LED, yellow
    • Resolution / Distance: 4K/UHD - 1080p
    • HDMI IN/OUT: 15' (5m) 30' (10m)
    • CAT5e: 295' (90m) 330' (100m)
    • CAT6/6a/7: 330' ((100m) 330' (100m)

      Power
    • Consumption: 32.35W
    • USB Power: 2.5W per USB device interface
    • External Power Supply (Receiver): Input: 100 - 240 V AC, 50/60Hz
    • Output: 48 V, 0.83 A DC
    • Safety: CE, FCC, cULus

      Environmental
    • Operating Temperature: 0° to 122°F (0° to 50°C)
    • Storage Temperature: -4° to 140°F (-20° to 60°C)
    • Operating Humidity (RH): +20 to 90%, non-condensing
    • TX Dimensions (HxWxD):
      Unit: 1.02 x 4.29 x 5" (26 x 109 x 127mm)
      Power Supply: 1.42 x 1.81 x 4.41: 36 x 46 x 112mm)
    • RX Dimensions (HxWxD):
      Unit: 1.02 x 4.29 x 5" (26 x 109 x 127mm)
      Power Supply: 1.42 x 1.81 x 4.41" (36 x 46 x 112mm)
    • Weight:
      TX: 0.89Lbs (406g)
      RX: 1.91Lbs (870g)
    • Safety: CE, RoHS, FCC


  • GTIN:

    0846352006105
