    TP-580TXR - Overview

    HDBaseT 1.0 transmitter

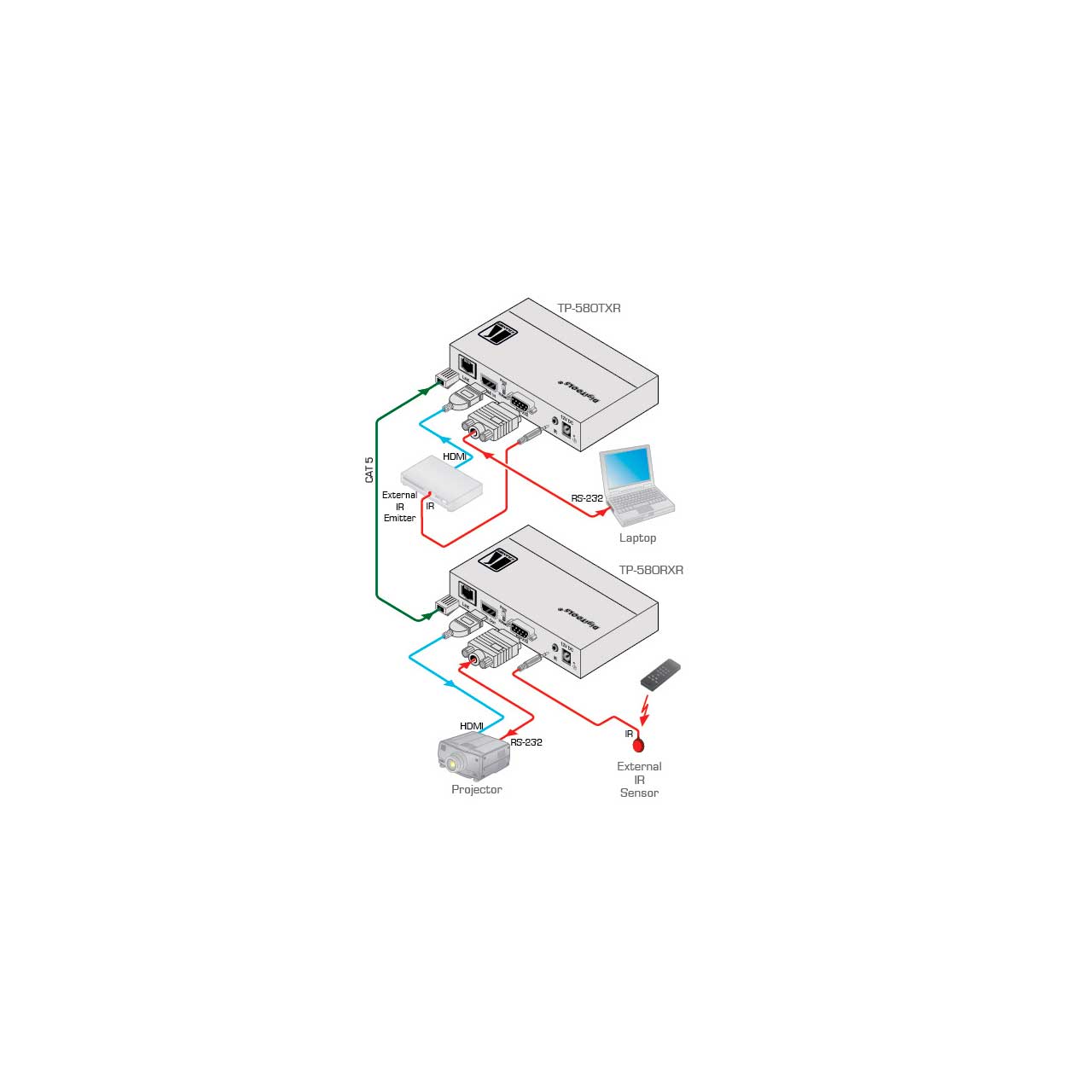

    The Kramer TP-580Txr is a high-performance, extended-reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair. The TP-580Txr converts all input signals into the transmitted HDBaseT signal. When combined with the KR-TP-580RXR receiver (sold separately) it extends video signals to up to 100m (330ft) over CAT copper cables at up to [email protected] (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

    Perfect for:
    Long-distance AV and LAN signal extension for multi-room, large dividable auditoriums and lecture hall connectivity
    AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities

    • Features:

      • High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-580Txr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
      • HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant signal. Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display.
      • I-EDIDPro Kramer Intelligent EDID Processing - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
      • Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
      • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
      • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

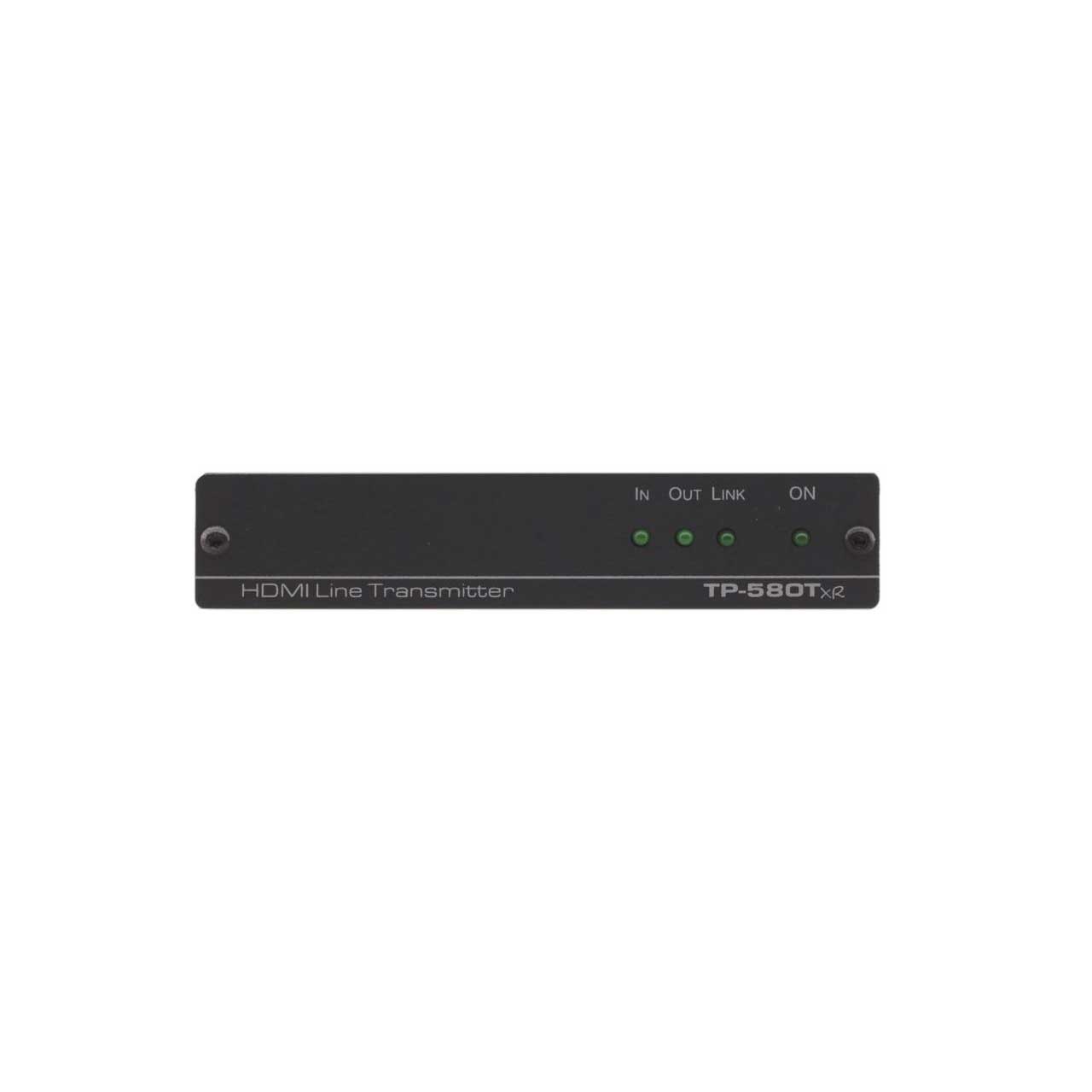

      • Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment.
      • Easy Installation - Compact DigiTOOLS fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
    • Specifications:

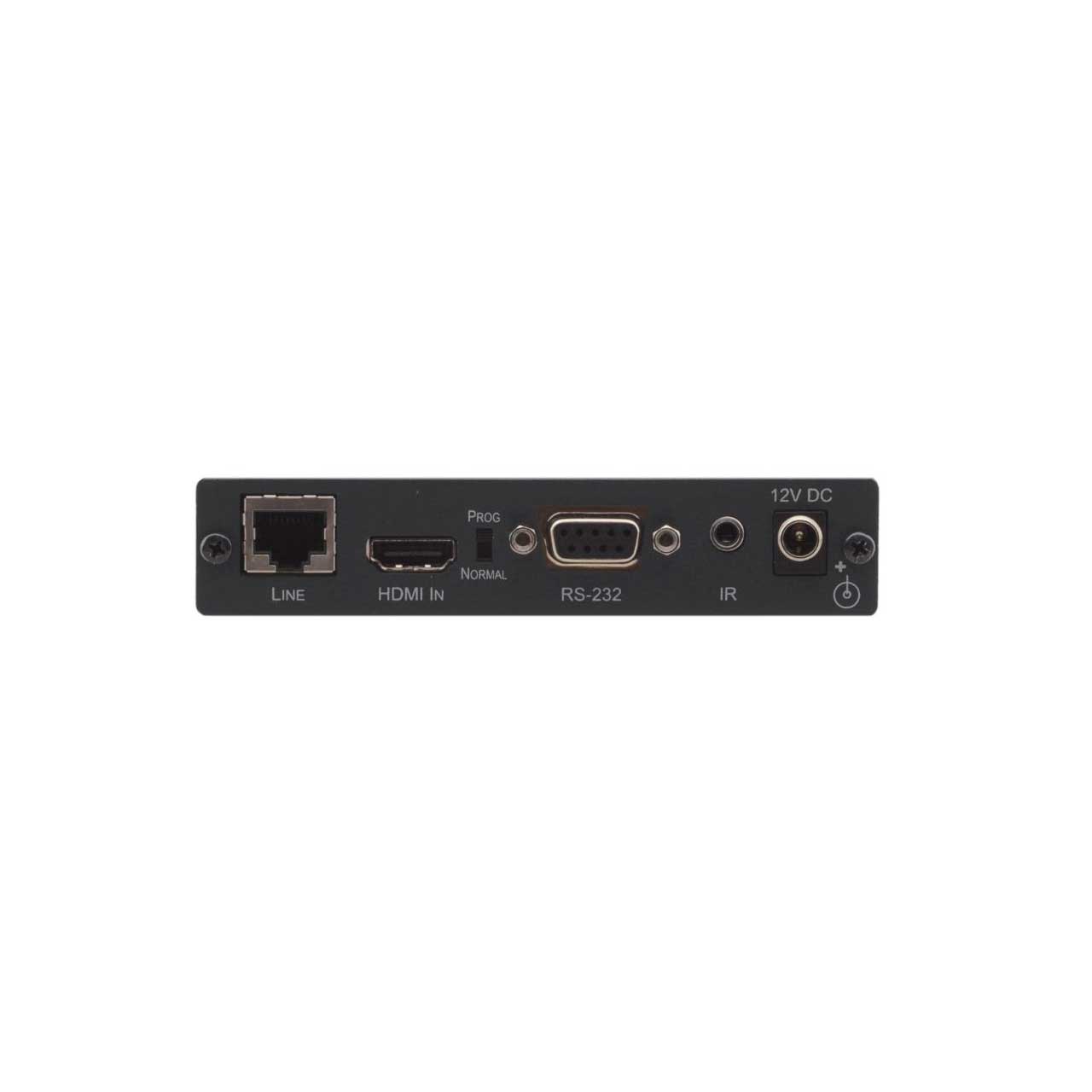

      • 1 HDMI on an HDMI connector

      • 1 HDBT on an RJ-45 female connector

      • 1 IR on a 3.5mm mini jack for IR link extension
      • 1 RS-232 on a 9-pin D-sub connector for serial link extension and device firmware upgrade

        Extension Line:
      • HDBaseT 1.0 compliant
      • Up to 100m (330ft) at 4K @60Hz (4:2:0)
      • Up to 130m (430ft) at full HD (1080p @60Hz 36bpp)
      • Up to 180m (590ft) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp)
      • Note: When using Kramer HDBaseT cables

      • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
      • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
      • HDMI 2.0 and HDCP 2.2 signal compliance

        Extended RS-232:
      • 300 to 115200 baud rate

        Control RS-232:
      • 115200 baud rate

        Power Source:
      • 12V DC, 2A

        Power Consumption:
      • 12V DC, 295mA

      • DigiTools size, aluminum type

      • Convection ventilation

        Operating Temperature:
      • 0° to 40°C (32° to 104°F)

        Storage Temperature:
      • -40° to +70°C (-40° to 158°F)

      • 10% to 90%, RHL non-condensing

        Included Accessories:
      • Power supply

        Product Dimensions:
      • 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

        Product Weight:
      • 0.2kg (0.4lbs) approx.

        Shipping Dimensions:
      • 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H

        Shipping Weight:
      • 0.7kg (1.6lbs) approx.
    • Item Includes:

      • TP-580TXR
      • Power Supply
    • Warranty:

      • Limited 7 Year Warranty
    • GTIN:
