Avenview HDM-SPLITPRO-4A 4 x1 Multiviewer Scaler
  • Avenview HDM-SPLITPRO-4A 4 x1 Multiviewer Scaler
  • Avenview HDM-SPLITPRO-4A 4 x1 Multiviewer Scaler
  • Avenview HDM-SPLITPRO-4A 4 x1 Multiviewer Scaler
  • Avenview HDM-SPLITPRO-4A 4 x1 Multiviewer Scaler

Questions? Ask a Markertek Expert:
800-522-2025 Email

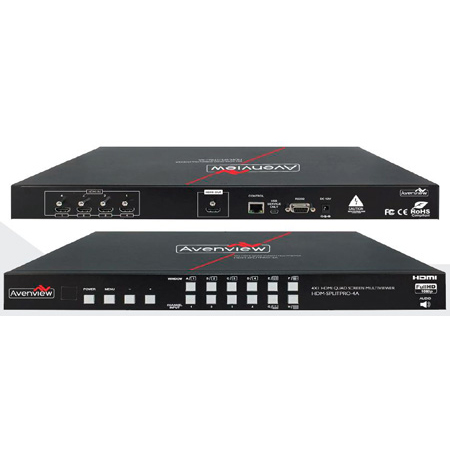

Avenview HDM-SPLITPRO-4A 4 x1 Multiviewer Scaler

Manufacturer: Avenview Corp

Item #: AVW-HDMSPLTPRO4A   •   MFG #: HDM-SPLITPRO-4A




Our Price:$2,999.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





This 4 x1 Multiviewer Scaler was developed for the growing demand in the security, videoconference and sporting events.

This 1U HDMI device can accept 4 HDMI input digital sources and then combine, (4) four video signals onto a single HDMI HD Monitor The user can easily manage each input via the Menu settings and create any layout and position of any of the 4 (four) Inputs on a single Monitor. This device supports full range of video resolutions up to [email protected] (RB) or Full HD1080p and audio supported up to 8-channel LPCM with 192 kHz sampling rate for both input and output. Audio channels can be selected to playback with input or can be muted.

Seamless Switching, Fade In Out - This device can input any 4 HDMI input digital sources and then combine, (4) four video signals onto a single HDMI HD Monitor. The user will benefit with from its processing power to seamlessly switch between the 8 different Hot key function via, IR Remote, Telnet, Rs232 or Front Panel buttons.

Zoom In/out - This device can Zoom In/Out any 4 HDMI input digital sources and then combine, (4) four video signals onto a single HDMI HD Monitor. This device can be configured using the OSD, IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired layout configuration.

PIP,POP, Overlay - This device can input any 4 HDMI digital sources and then combine, (4) four video signals onto a single HDMI HD Monitor, which the user can select Picture In Picture (PIP) , Picture on Picture (POP) or Overlay with the OSD, IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired layout configuration.

Channel Size and Position - The user can easily change the individual channel size and choose different position and layout on the single monitor with the OSD, IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired layout configuration.

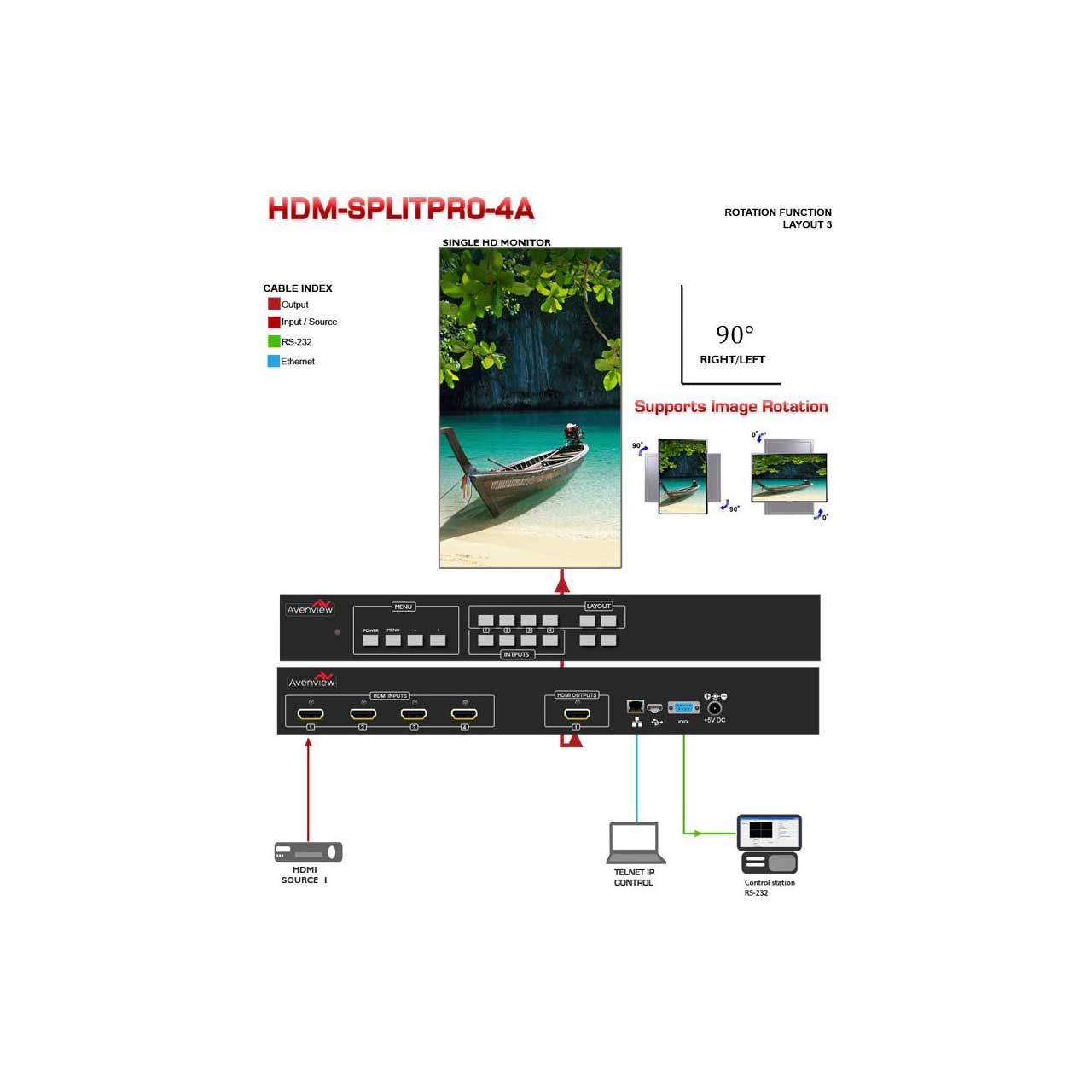

Rotation (90° & 180°) & Mirror -The user can easily Rotate the image 90° left and right also Mirror the image. This device can be configured with the OSD, IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired layout configuration.

Chromakey - This device can input 4 HDMI digital sources but only utilize (2) two Inputs for this technique layering two images video streams together based on color hues and chroma range. Where IN1 is the background and IN 2 is the top image. This device can be configured with the OSD, IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired layout configuration.

It is commonly used weather forecast broadcasts example a news presenter;is usually seen standing in front of a large CGI map during live television newscasts, though in actuality it is a large blue or green background. When using a blue screen, different weather maps are added on the parts of the image where the color is blue. If the news presenter wears blue clothes, his or her clothes will also be replaced with the background video. A complementary system is used for green screens. Chroma keying is also used in the entertainment industry for special effects in moviesand videogames. The advanced state of the technology and much commercially availablecomputer software, such as Autodesk Smoke Final Cut Pro Pinnacle Studio Adobe After Effects, and dozens of other computer programs, makes it possible and relatively easy for the average home computer user to create videos using the "Chromakey" function with HDM-SPLITPRO-4A.


  • Features

    • Seamless switching and Fade In Out between input channels and combined images on single HD Monitor;
    • Zoom IN/Out the (4) four HDMI Input Channels;
    • Supports PIP, POP, PAP and Multi-windows layout configurations;
    • Rotation (90° left & right and 180°) functions;
    • Supports Chromakey Function;
    • Mirror the (4) four HDMI Input Channels;
    • 8 Preset Hot keys for easy control and design layouts;
    • 4 Custom Favorite saved layout buttons via the IR Remote;
    • Input /Output resolution supported supports full range of video resolutions up to [email protected] (RB) or Full HD1080p;
    • Audio Supports LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/Dolby TruHD & DTS-HD;
    • Fine tuning and adjustments of contrast, brightness, Saturation and hue;
    • Auto EDID detect from the source;
    • USB for Service Mode and Firmware upgrade;
    • Supports OSD, RS-232, Telnet, IR Remote and Front panel buttons;
    • Factory Reset;
    • 1RU Size

  • Specifications

    • HDCP COMPLIANCE: Yes
    • VIDEO BANDWIDTH: 225 MHz (6.75Gbps)
    • HDMI INPUT CABLE DISTANCE: Up to [email protected] bits
    • HDMI OUTPUT CABLE DISTANCE: Up to [email protected] bits
    • SUPPORTED RESOLUTIONS: PC -VGA, XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200)
    • [email protected]
    • AUDIO SUPPORT: LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/Dolby TruHD & DTS-HD
    • INPUT: 4 x HDMI19 Pin Female type connector
    • 1 x RJ45/RS-232 1xMini USB service only
    • OUTPUT: 1 x HDMI 19 Pin Female type connector
    • USB CONNECTOR: Type A Mini USB
    • RJ45 CONNECTOR: WE/SS 8P8C with 2 LED indicators
    • SWITCHING SPEED: ±8 kV (air-gap discharge)
    • ±4 kV (contact discharge)
    • WEIGHT: 4.85 lbs
    • DIMENSIONS (L X W X H): 17.16" x 10" x 1.7"
    • POWER SUPPLY: 12V/3A DC (US/EU standards, CE/FCC/UL certified)
    • POWER CONSUMPTION: 18W
    • ENVIRONMENTAL
    • OPERATING TEMPERATURE: 32° ~ 104°F (0° to 40°C)
    • STORAGE TEMPERATURE: -4° ~ 140°F (-20° ~ 60°C)
    • RELATIVE HUMIDITY: 20~90% RH (no condensation)
