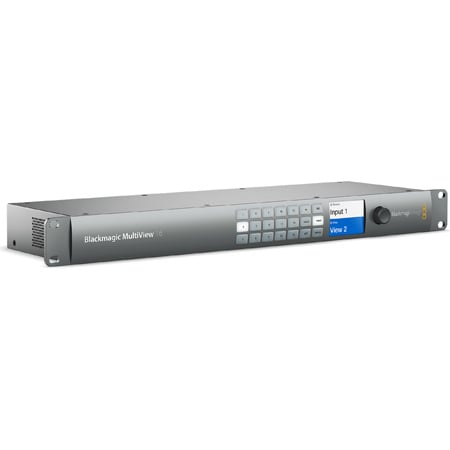

Blackmagic Design HDL-MULTIP6G/16 MultiView 16 Video Multiviewer for 16-Channels of SDI

ITEM #: BMD-MULTIVIEW16 MFG #: HDL-MULTIP6G/16

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$1,575.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    HDL-MULTIP6G/16 - Overview

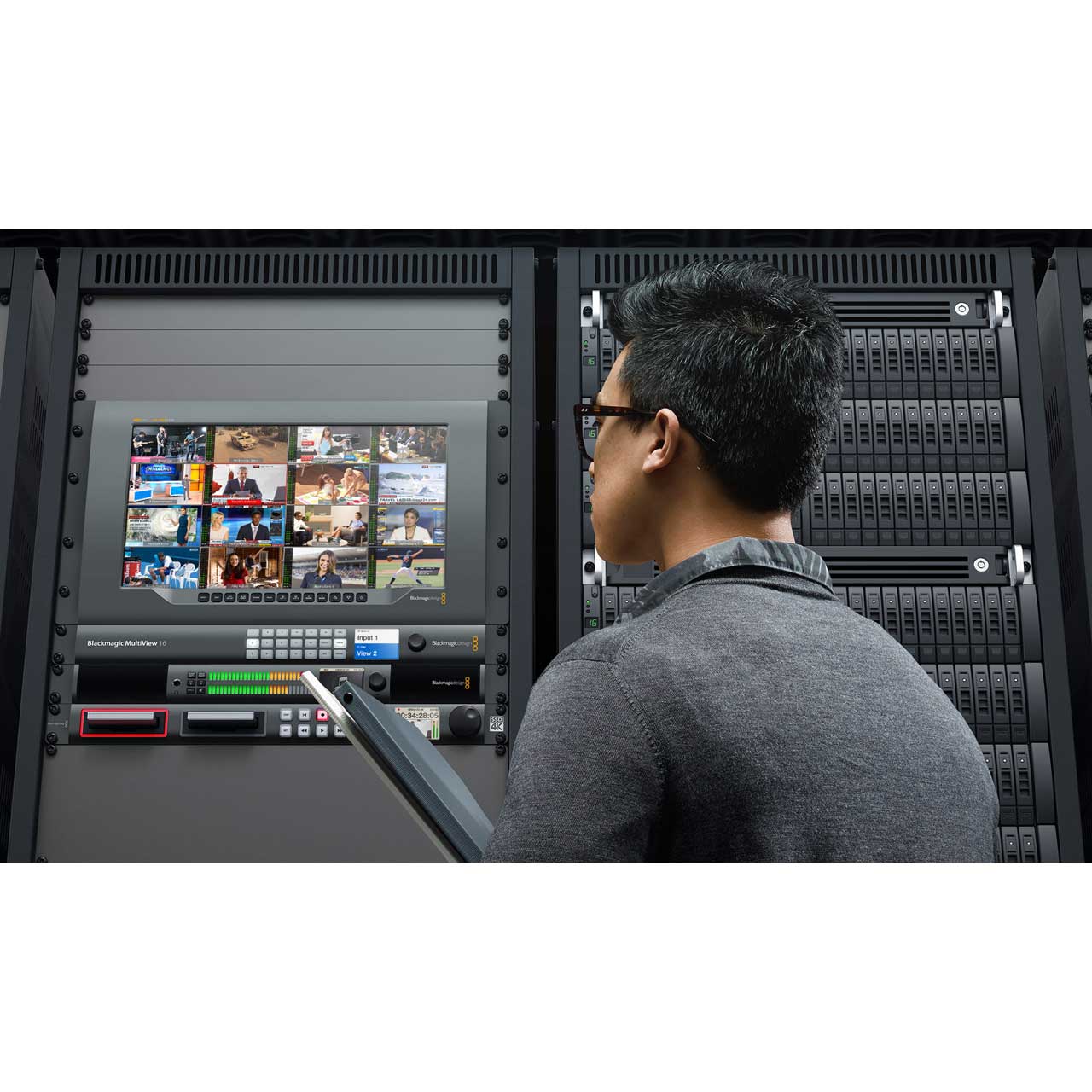

    Simultaneously view up to 16 independent SD, HD and Ultra HD sources!

    The Blackmagic Design MultiView 16 outputs both 1080p HD and native Ultra HD over SDI and HDMI monitors, making it possible to use professional broadcast monitors or the new massive Ultra HD consumer televisions for incredibly sharp, high resolution multi view monitoring that is twice the resolution of traditional HD multi viewers. Customers can choose layouts from 2x2 for 4 sources, 3x3 for 9 sources and 4x4 for 16 sources.


    Blackmagic MultiView 16 includes sixteen multi rate 6G-SDI inputs with separate loop thru that are compatible with existing SD, HD and Ultra HD equipment. All 16 inputs feature automatic frame re-synchronization, so each view is like an independent video monitor, regardless of the input standard. That means customers can mix and match up to 16 different video standards all at the same time!

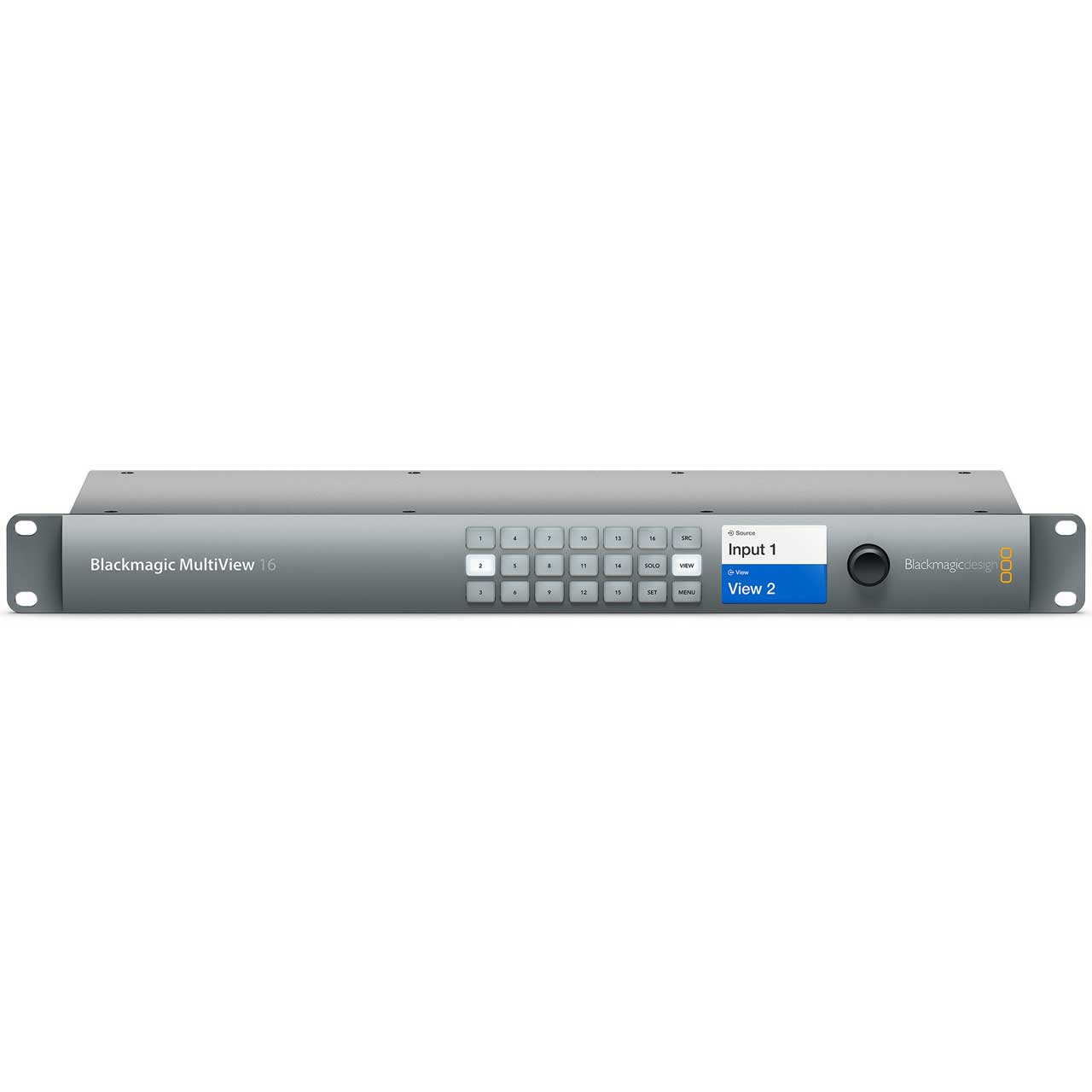

    MultiView 16 is perfect for larger installations because it has 16 independent 6G-SDI inputs so you can connect any combination of SD, HD or Ultra HD sources and monitor them all simultaneously on a single display! Router style controls on the front panel, along with the LCD and spin knob, let you adjust settings, route sources to different views, add overlays and more. Output can be set to a 2x2, 3x3 or 4x4 grid, and you can even SOLO any source full screen!

    • Features:

      • Multi source monitoring designed for broadcasters
      • Mix any combination of SD, HD and Ultra HD sources
      • High Resolution Monitoring
      • Custom labels, tally, audio meters and more!
      • Supports all of your SD, HD and Ultra HD equipment!
      • Create customized views with even more sources!

    • Specifications:

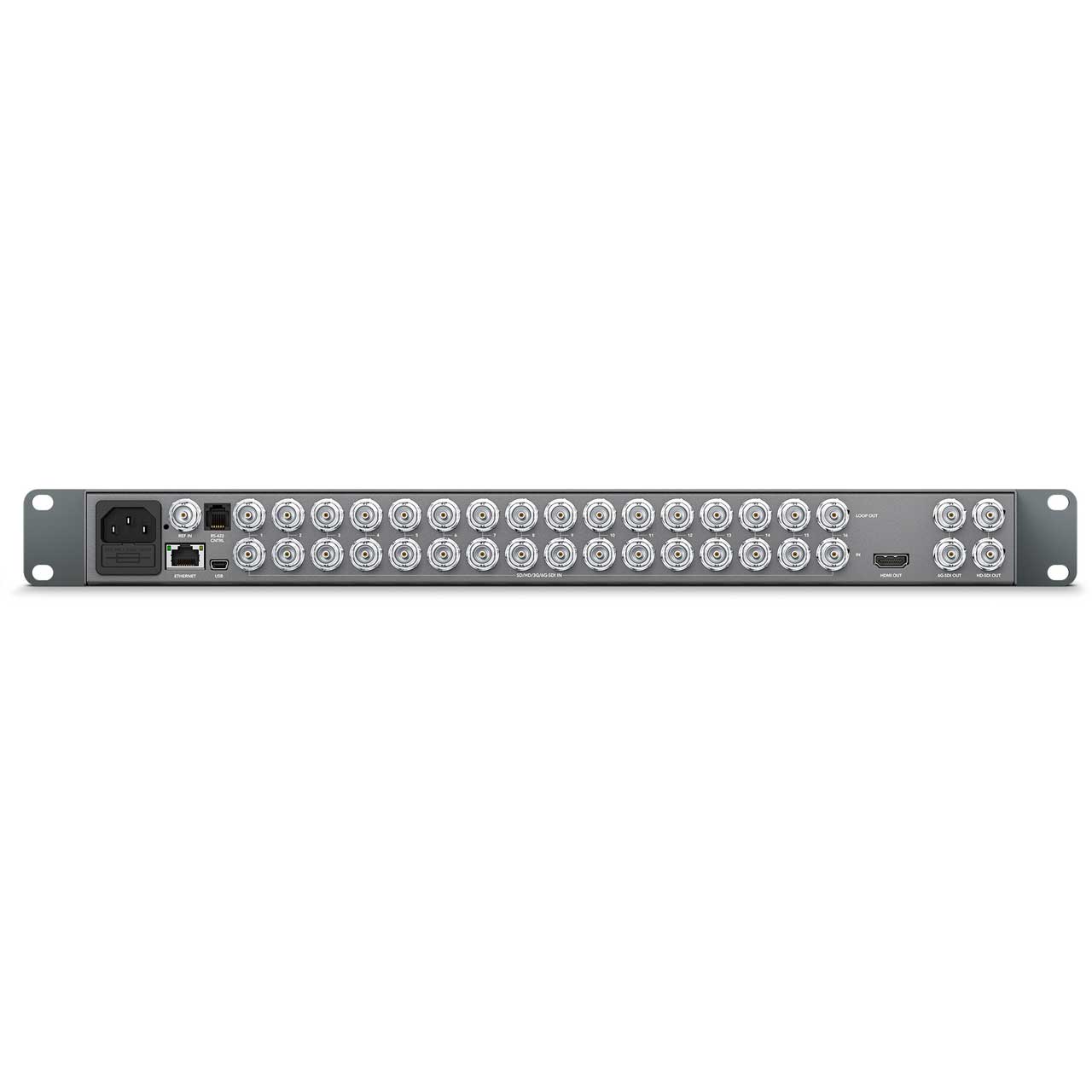

      • Connections
      • SDI Video Inputs: 16 x 10-bit SD-SDI, HD-SDI and 6G SDI.
      • SDI Video Outputs: 16 x 10-bit SD-SDI, HD-SDI and 6G SDI.
      • SDI Rates: 270Mb, 1.5G, 3G, 6G.
      • SDI Video Multi View Outputs: 2 x 10-bit HD-SDI, 2 x 10-bit 6G SDI.
      • HDMI Video Multi View Outputs: 1 x HDMI type A connector. Output supports EDID of the monitor.
      • SDI Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G SDI video.
      • Reference Input: Black Burst and Tri-Sync for SD, HD and 4K.
      • Multi Rate Support: Auto detection of SD, HD or 6G SDI. Simultaneous viewing of 4K, HD and SD video.
      • Updates : USB 2.0 high speed (480Mb/s) interface or via Ethernet.
      • Configuration: Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.

        Standards
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
      • 4K Video Standards: 4K DCI 24p
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU R BT.656 and ITU R BT.601.
      • Audio Meters: Each view, VU standard.
      • Source Routing: Yes
      • SDI Video Sampling: 4:2:2 and 4:4:4.
      • SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
      • SDI Color Precision: 10-bit 4:2:2 and 4:4:4.
      • SDI Color Space: YUV or RGB for inputs, YUV for outputs.
      • SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, and 6G SDI on each input so that each input can be running a different television standard.
      • SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.

        Control

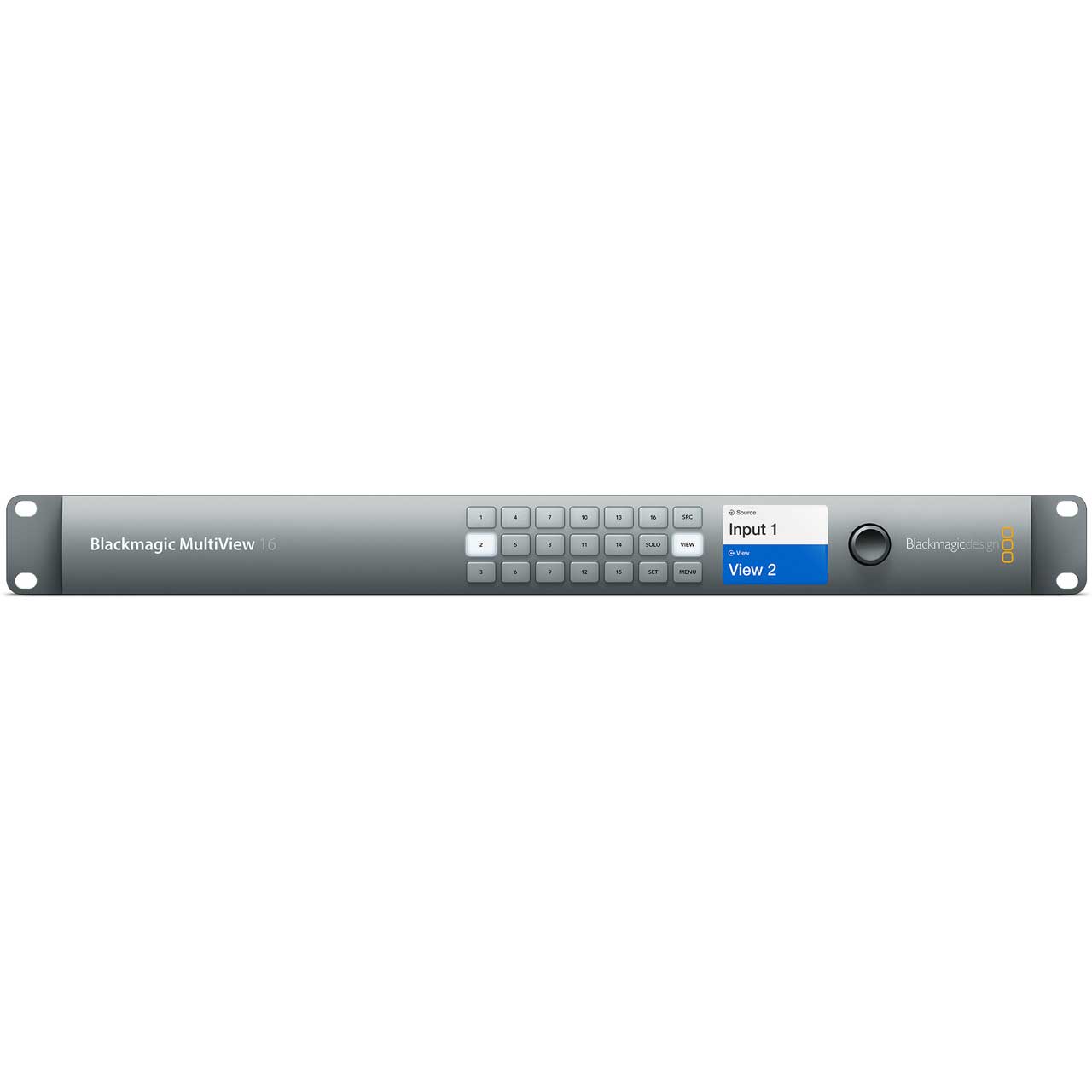

      • Built in Control Panel: 16 buttons for local control of source routing with 5 buttons and scroll wheel for menu control. 2.2 inch color display.
      • External Control Panel: Includes Blackmagic Videohub software control panel for Mac OS and Windows for routing sources to views. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet: Videohub Control Protocol.
      • RS-422 Control: RJ9 for external control.
      • Display: Built in 1.5-inch LCD for menu settings.

        Software
      • Software Control: MultiView software included free for Windows™ and Mac™
      • Internal Software Upgrade: Via included updater application.
      • Operating Systems: Mac 10.11 El Capitan, Mac 10.12 Sierra or later. Windows 8.1 and 10.
      • Physical Installation: 1 rack unit size. Less than 6 inch deep.

        Power Requirements
      • Power Supply: IEC power cable required, 100 - 240V AC input.
      • Power Fail Protection : MultiView 16 settings preserved and restored instantly at power on.

        Environmental Specifications
      • Operating temperature: 0° to 40° C (32° to 104° F)
      • Storage temperature: -20° to 45° C (-4° to 113° F)

    • Item Includes:

      • Blackmagic MultiView 16
      • SD card with software and manual

    • Warranty:

      • 12 month Limited Manufacturer's Warranty.

    • GTIN:

      9338716002850
