Blonder Tongue BAVM-860-SAW CH7 Channelized Audio/Video Modulator Saw Filtered

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Blonder Tongue BAVM-860-SAW CH7 Channelized Audio/Video Modulator Saw Filtered

    Item #: BAVM-860-SAW-7   •   MFG #: BAVM-860-SAW-7








    Channels:





    Share!

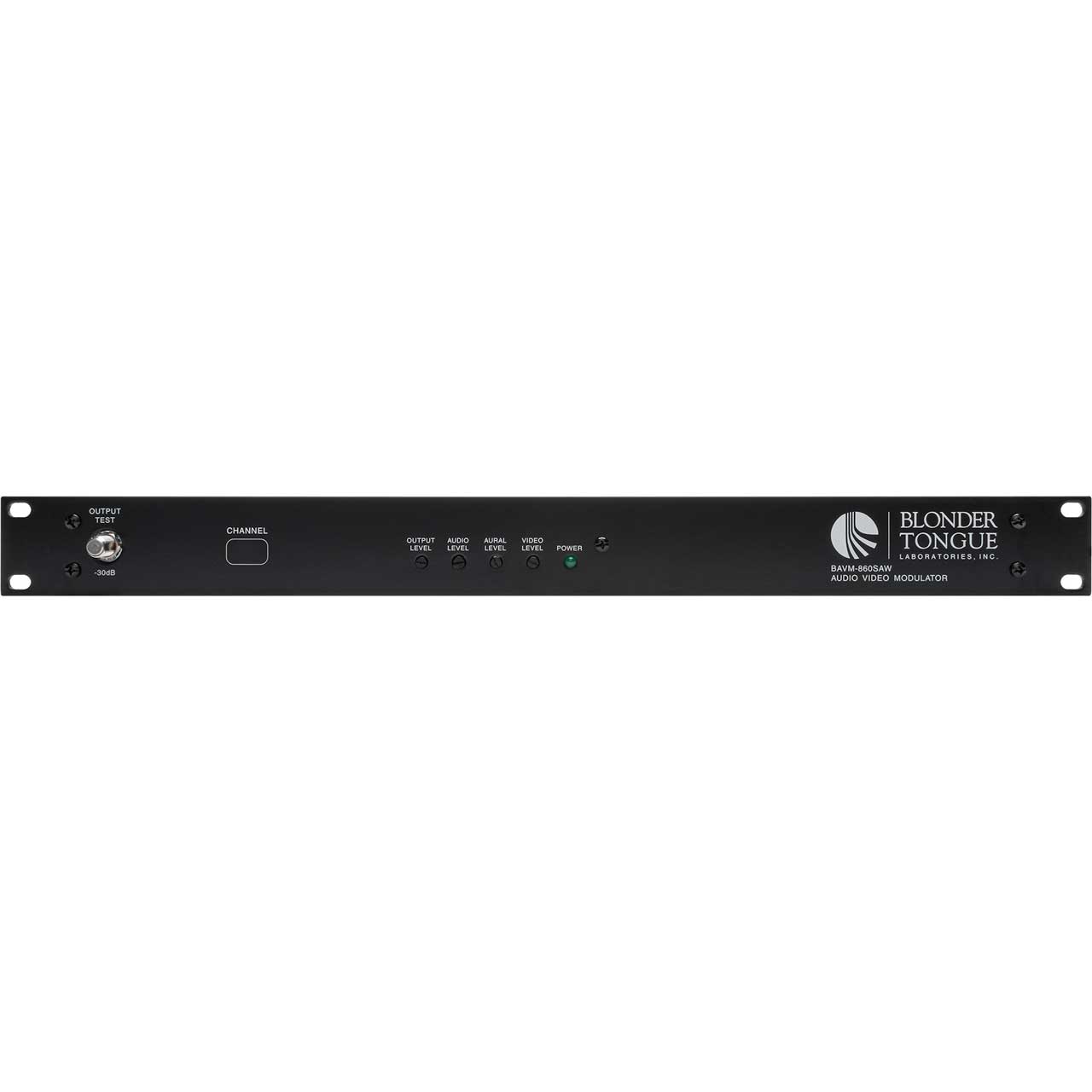

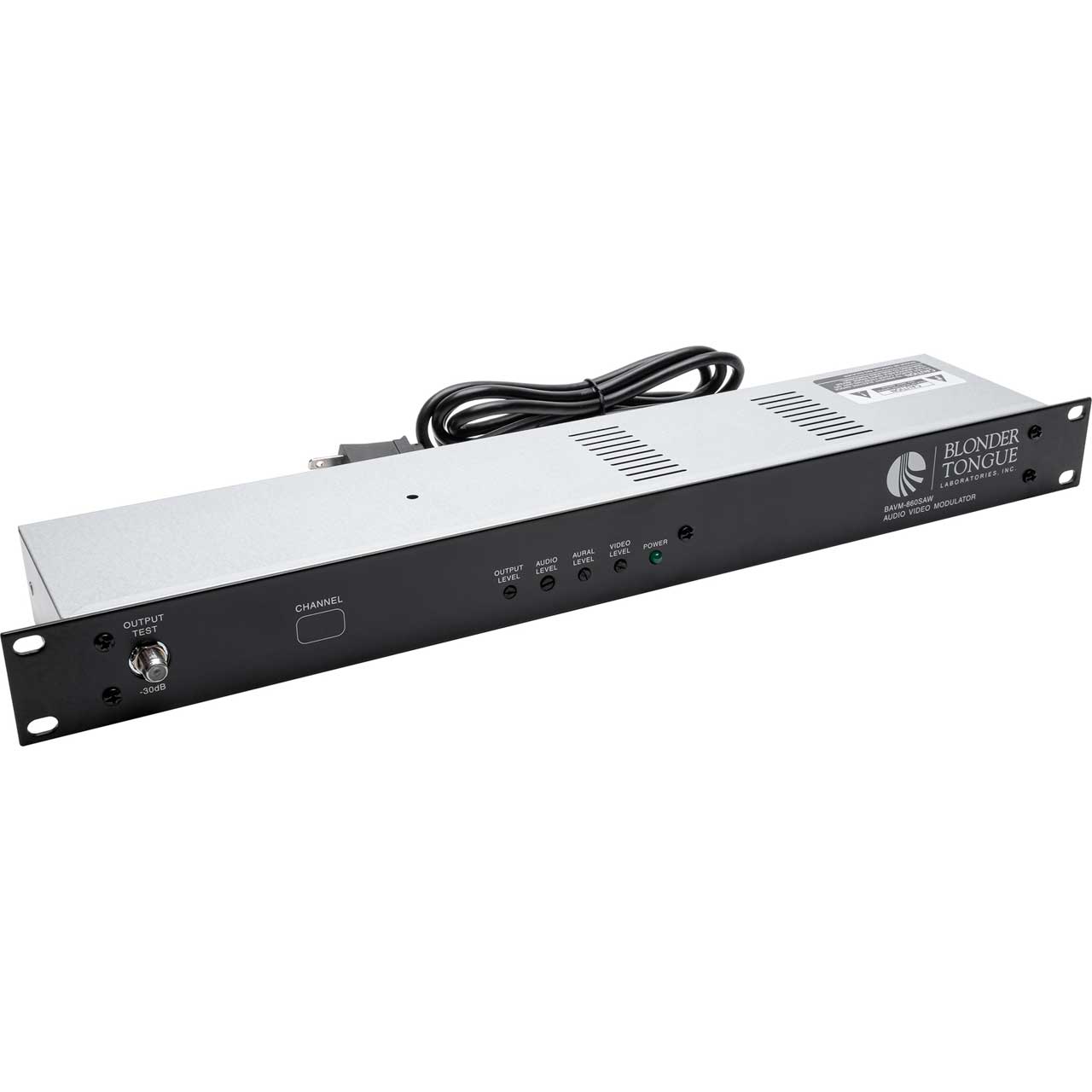

    The Blonder Tongue BAVM-860SAWis an economical commercial quality TV modulator. It provides a +55 dBmV RFoutput on any specified CATV channel from 2 to 135 (54 to 860 MHz). HRC and IRC frequency plans are also available. TheBAVM-860SAW is ideal for placing A/V program sources such as satellite receivers,VCR's, DVD's, cameras or TV demodulators onto standard 6 MHz NTSC TV channels for broadband distribution. The BAVM-860SAWfeatures IF SAW filtering with built-in FCC group delay pre-distortion assuring excellent adjacent channel performance and color operation. The modulator complies with FCC 21006 with +/- 5 KHz visual carrier stability and required frequency offsets on all aeronautical channels. For BTSC stereo applications, a field-defeatable audio preemphasis network is provided making theBAVM-860SAW compatible with any outboard stereo generator that provides a composite baseband output. A -30 dBoutput test point and all user controls are provided on the front panel.


    • Features

      • Meets FCC Docket 21006 Aeronautical Frequency Offset Requirements
      • Fully Compatible With BTSC Encoded Stereo Audio
      • Front Panel Accessible Level Controls for Easy Set-Up and Adjustments
      • Low Cost High Performance ChannelizedAudio/Video Modulator
      • AC Convenience Outlet

    • Specifications

      • RF
      • Frequency Range: CATV Channels 2 to 135
      • Output Level: 55 dBmV, Min
      • Output Level Range:
      • 15 dB, Continuously Adjustable by Front
      • Panel Output Level Control
      • Audio/Video Carrier Ratio Control:-7 dB to -20 dB,
      • Frequency Tolerance:
      • ±10 kHz - Standard Channels
      • ±5 kHz FCC 21006 Offsets
      • Audio Carrier Frequency Setting:
      • ±1 kHz, Max
      • 4.5 MHz Above Video Carrier
      • RF to Video Response from Fv -0.5 MHz toFv +4.2 MHz: 1 dB P/V
      • Broadband Noise -90 dBC
      • Spurious Output in 50 . 860 MHz Range@ +55 dBmV Output: -60 dBc
      • Output Match (Return Loss): 12 dBc
      • Vestigial Sideband Response:
      • @Channel Edge -20 dB
      • @Adjacent Channel -40 dB

        Video
      • Input for 87.5% Modulation:0.7V to 2.5 V P-P
      • Video Input Return Loss: 18 dB
      • Video Carrier-To-Noise Ratio in 4 MHzBandwidth: 62 dB
      • P-P Video to 60 Hz RMS Hum Ratio: 60 dB
      • Differential Gain at 87.5% Modulation: < 5%
      • Differential Phase at 87.5% Modulation: < 5°
      • Group Delay: 170 ± 50 nS

        Audio
      • Input Impedance: 10K Ohm, Unbalanced
      • Input for 25 KHz Peak Deviation: 140 mV RMS
      • Audio Frequency Response:
      • ±1.0 dB
      • (50 Hz to 15 KHz ref to std 75 msecPre-emphasis)
      • 4.5 MHz Intercarrier Stability: ±5.0 kHz

        General
      • Power Requirements:105-130 VAC, 60 Hz, 10.5 W
      • Temperature Range: 0 to +50°C

        Mechanical
      • Dimensions (W x H x D):
      • 19 x 1.75 x 3 in.
      • 482.6 x 44.45 x 76.2 mm
      • Line Cord:
      • 3 Wire Grounded,
      • 3 Wire Convenience Outlet
      • Weight: 4 lbs., 1.81 kg

        Connectors

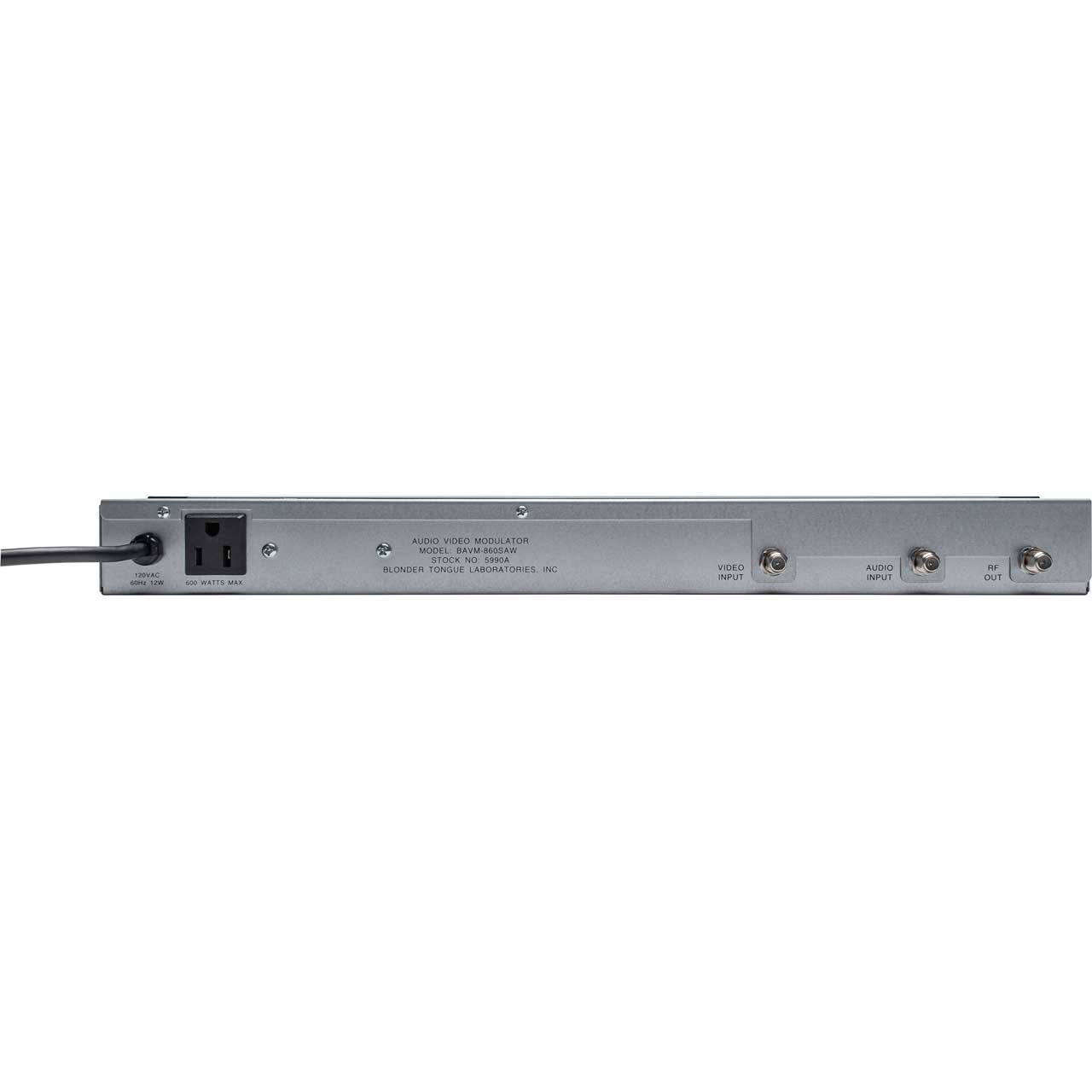

      • Audio In: F Female
      • Video In: F Female
      • RF Out: F Female
      • RF Output Test - 30 dB: F Female
