CAD 2600VP DSP Variable Polar Pattern Hanging Microphone DSP Compatible - Black


    CAD 2600VP DSP Variable Polar Pattern Hanging Microphone DSP Compatible - Black

    Manufacturer: CAD Audio

    Item #: CAD-2600VP-DSP   •   MFG #: 2600VP DSP



    This item is no longer available.
    Ask a Markertek Expert if you need assistance finding an appropriate substitute.

    800-522-2025Email





    Item unavailable. Please select another option.

    Items similar to the CAD-2600VP-DSP

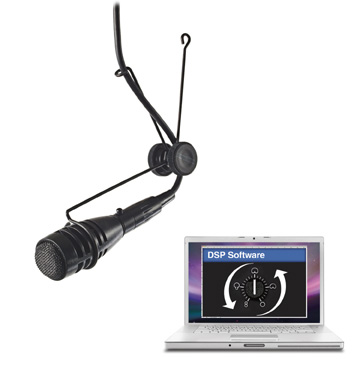

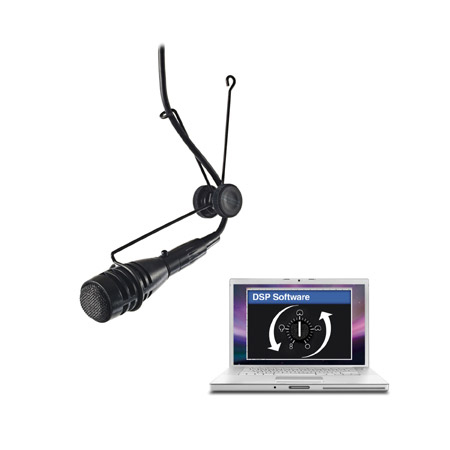

    The 2600VP is a continuously-variable pattern condenser overhead microphone system with remote polar control through a Digital Signal Processor (DSP). The variable polar pattern with remote control allows the user to precisely adjust the shape of the pick-up pattern for best performance from within a DSP. Utilizing a two-conductor shielded cable (max length 2,000 feet) between the microphone head and the DSP unit, the polar pattern of the microphone can be adjusted in real time without changing capsules, microphone positions, or inducing noise in the audio chain.

    Special attention has been given to the frequency response and sensitivity of the microphone while utilizing the variable-pattern control to precisely alter the shape of the pick-up pattern. The large diameter, low-noise elements produce a frequency response of 40Hz to 20KHz.

    The 2600VP has been designed to resist interference from devices such as cell phones, two-way communication devices and lighting apparatus. Utilizing our RF Resistant Architecture, the 2600VP meets the stringent RF standards set by the European Union (see the specification section for more information).

    The 2600VP comes complete with 30' (9.1m) of two-conductor shielded cable terminated with a TA3F type connector and XLRM-type connector. Also included with the microphone system is a 3-pin XLRF connector on a stainless steel duplex wall plate, exclusive articulating steel hanger, and anti-twist thread and rods.


    • Features

      • Continuously-variable polar pattern controllable from within a DSP
      • Includes adapter cable (XLR-F to Phoenix-type) for use with Biampr Digital Signal Platform
      • 30' cable for suspending microphone element
      • Includes a counter poise string, exclusive articulating steel hanger, and anti-twist thread
      • RF (radio frequency) Resistant Architecture

    • Specifications

      • Operating Principle : Condenser
      • Polar Pattern : Continuously-variable
      • Frequency Response : 40Hz - 20KHz
      • Sensitivity : -29dBV (35mV) @ 1Pa
      • Impedance : 135 ohms
      • Self Noise : 22dBA
      • Maximum SPL : 110dB, 1%THD, 1KHz
      • Power Requirements : P48, 8mA
      • Attenuator : 20dB
      • Hi-Pass : 135Hz, 6dB/oct
