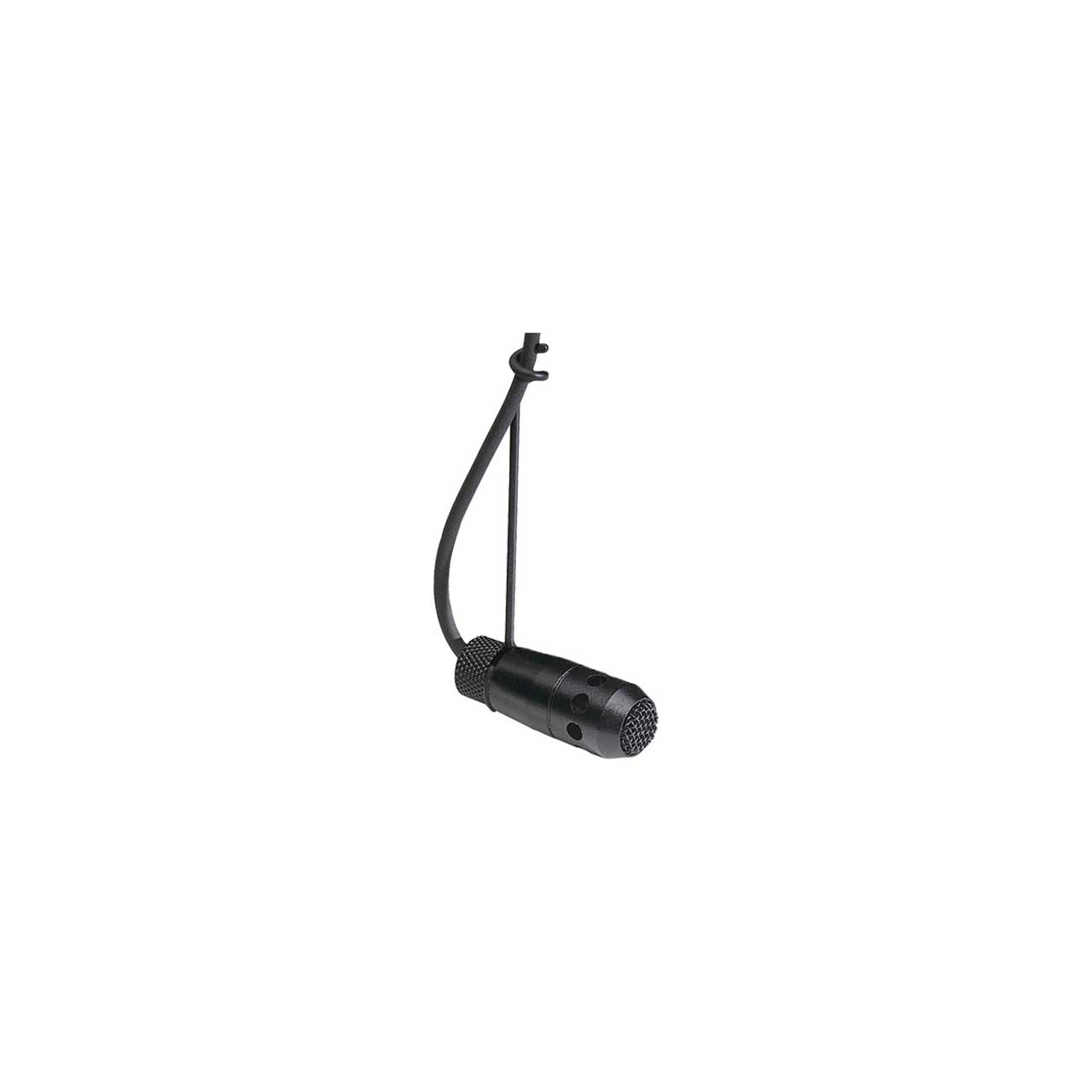

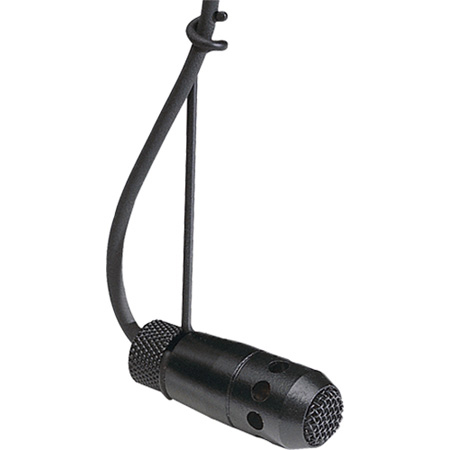

Electro Voice RE90H Hanging Choir Condenser with In-Line Preamp XLR Connector - Black

ITEM #: TX-RE90H MFG #: 17473112

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    17473112 - Overview

    The Electro-Voice RE90H and RE90HW are part of the RE Series Architectural Microphone Group, and are highly-shielded from RFI/GSM thanks to EV's exclusive RF Shield technology. The RE90H and RE90HW are back-electret condenser hanging microphones providing an extended, flat frequency response with a controlled cardioid polar pattern for high-quality sound reinforcement. The RE90H is specifically designed for live pickup of choirs, instrumental and vocal groups, and theater. The size and color of the transducer and cable allow the microphone to blend in with its surroundings. RE90H's low self-noise and high-output signal level combine to produce low-noise, sound-reinforcement and recording. Exceptionally high sensitivity, a uniform cardioid polar response, and smooth frequency response make the RE90H ideally suited for distant sound pick-up. The cardioid polar pattern is precisely controlled and is highly effective in suppressing feedback without coloration of sound. Power for the RE90H is obtained from any phantom source supplying 9 to 52 volts. The RE90H is furnished with 25 feet of black (RE90H) or white (RE90HW) miniature braided shielded cable. The design of the cable ensures the microphone's horizontal position will be held stable without the need for fish-line tethering. The RE90H is easily aimed at the performance with the supplied steel wire hanger and holding nut. The wire hanger attached to the microphone element and cable can be bent to aim the microphone in the vertical plane. To position the microphone on the horizontal plane, loosen the holding nut on the back of the microphone and slightly twist the microphone on the wire holder (clockwise rotation rotates the RE90H to the left; counterclockwise rotation rotates the RE90H to the right). Secure this position by tightening the holding nut.
    Note: For fixed installations, allow the microphone cable to hang for at least 24 hours so the cable can completely relax and establish a set. This allows the microphone to be accurately positioned over a choir, stage, or orchestra.

    • Features:

      • Non-reflecting black (RE90H) or low-gloss white (RE90WH) with matching cable.
      • Shielded pre-amp is highly-resistant to electrical noise and radio frequency interference.

      • 25-ft. braided, shielded cable maintains microphone's position (not rotation)
      • Cardioid polar pattern
      • Three-pin male XLR-type output connect or fits with female bulkhead XLR-type connector
    • Specifications:

      • Generation Element: Condenser, back electret
      • Frequency Response (see Figure 1): 75 Hz to 15,000 Hz
      • Polar Pattern: Cardioid Sensitivity,
      • Open Circuit Voltage, 1 kHz: 27 mV/pascal
      • Power Level, 1 kHz (0 dB =1 mW/pascal): -30.4 dB
      • Clipping Level (1% THD): 120 dB SPL
      • Equivalent Noise: 25 dB SPL A weighted
      • Dynamic Range: 95 dB
      • Output Impedance, 1 kHz: 200 ohms
      • Power Requirements: 9 to 52 V dc phantom supply
      • Current Consumption: 2.0 mA
      • Polarity: Pin 2 positive, referenced to pin 3,with positive pressure on the diaphragm
