Gepco DS604 4-Pair 110 Ohm 26 AWG Digital Audio Cable Per Foot

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

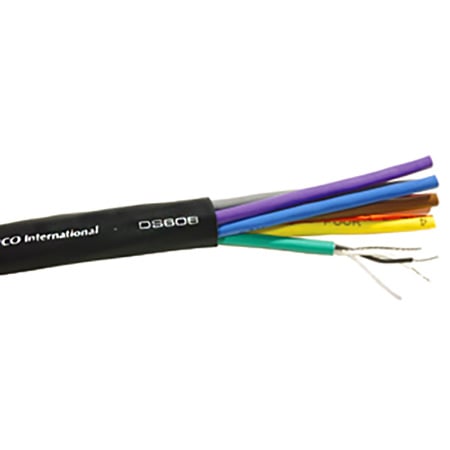

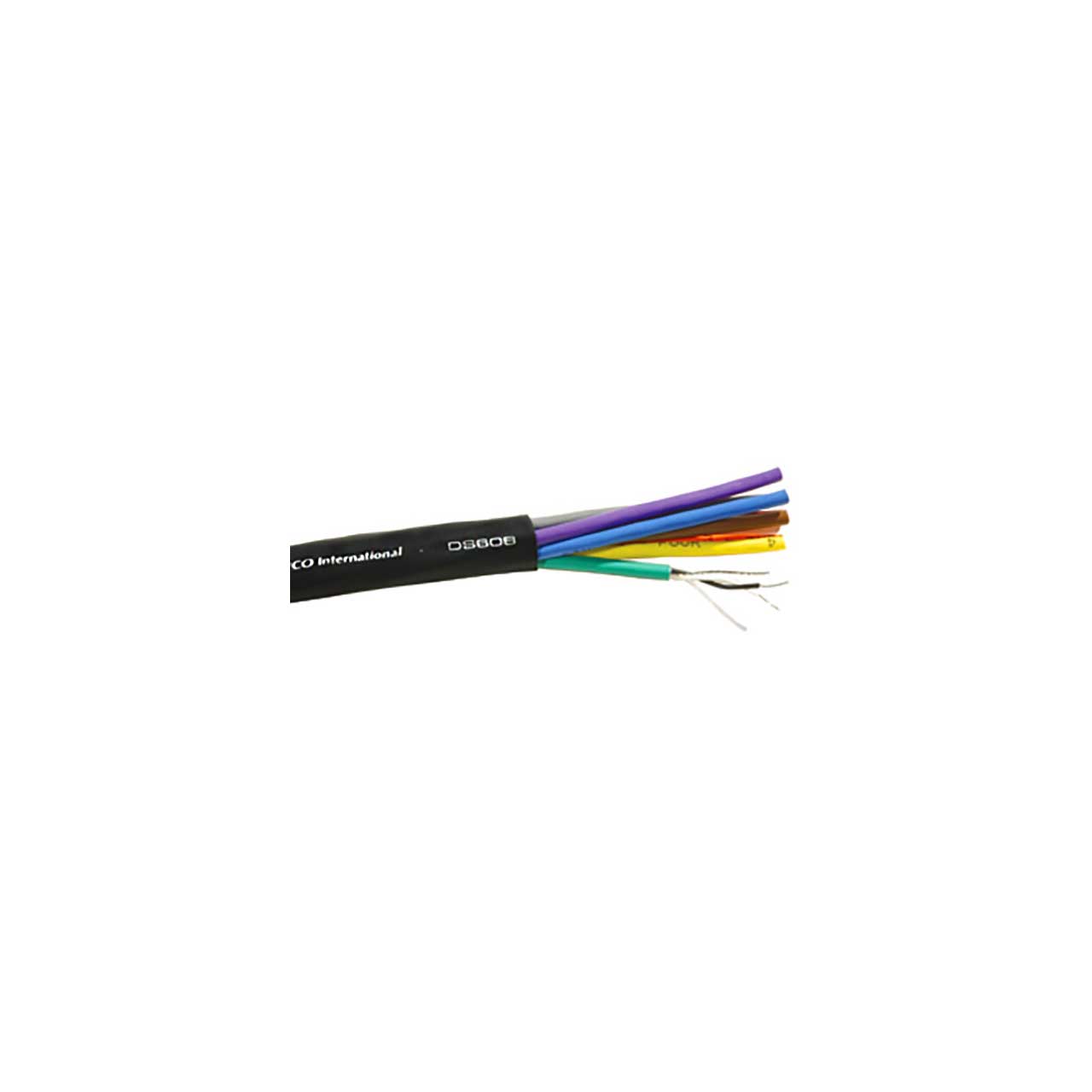

    Gepco DS604 4-Pair 110 Ohm 26 AWG Digital Audio Cable Per Foot

    Manufacturer: Gepco

    Item #: DS604-FT   •   MFG #: DS604-FT








    Lengths:





    Share!





    The thin profile 110 Ohm DS6 series of AES/EBU digital audio multi-pair features low attenuation, an extended 25 MHz Bandwidth, and a precision 110 Ohm impedance. Color coded and alphanumerically printed pairs facilitate easy channel identification and minimize crosstalk, while the GEP-FLEX master jacket is both flexible and easy to pull through conduit. The smaller diameter makes this series ideal for use with XLR or multi-pin type connectors (such as DB25 or Elco). The DS6 series is ideal for applications such as rack wiring, portable snakes, multi-pin breakout cables, patchbay harnessing, or short to medium length permanent installation. The DS6 series is characterized up to 25MHz for 192kHz transmission.


    • Features

      • Thin Profile
      • Extra-flexible
      • Precision 110 Ohm Impedance
      • 25MHz Bandwidth for 192kHz Sampling Rates
      • Foam Polypropylene Dielectric
      • Stabilizing Polyethylene Rod
      • Individually Shielded & Jacketed Pairs
      • Color Coded & Alphanumeric Pair Identification
      • CM Rated

    • Specifications

      • Impedance: 110 Ohms
      • Capacitance: 14 pF/ft between conductors, 27 pF/ft between one conductor and other tied to shield
      • Cond. DCR: 38.5 Ohm/Mft
      • Drain DCR: 23.8 Ohm/Mft
        Attenuation
      • 1MHz: 1.25
      • 3MHz: 1.85
      • 6MHz: 2.40
      • 12MHz: 3.16
      • 25MHz: 4.20
