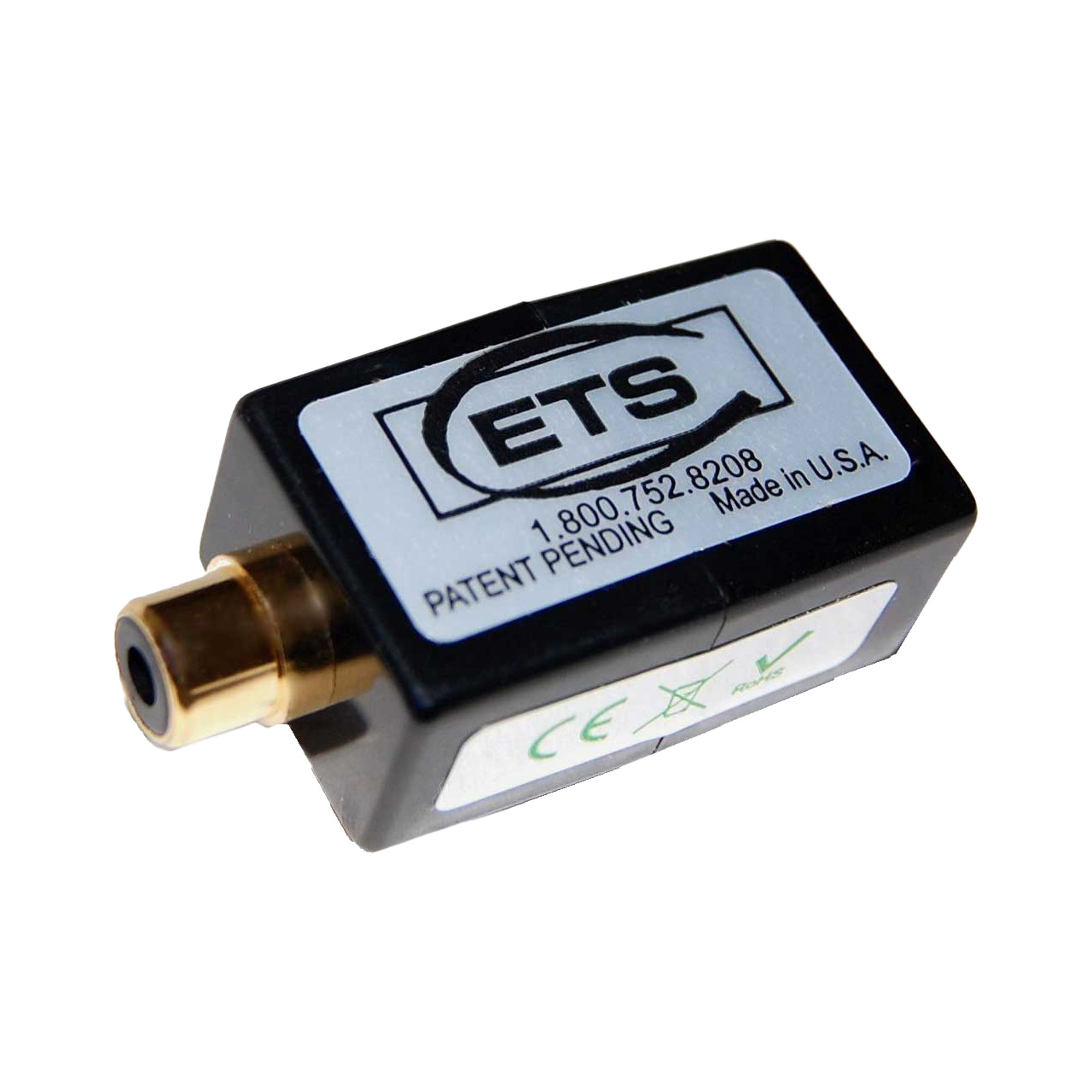

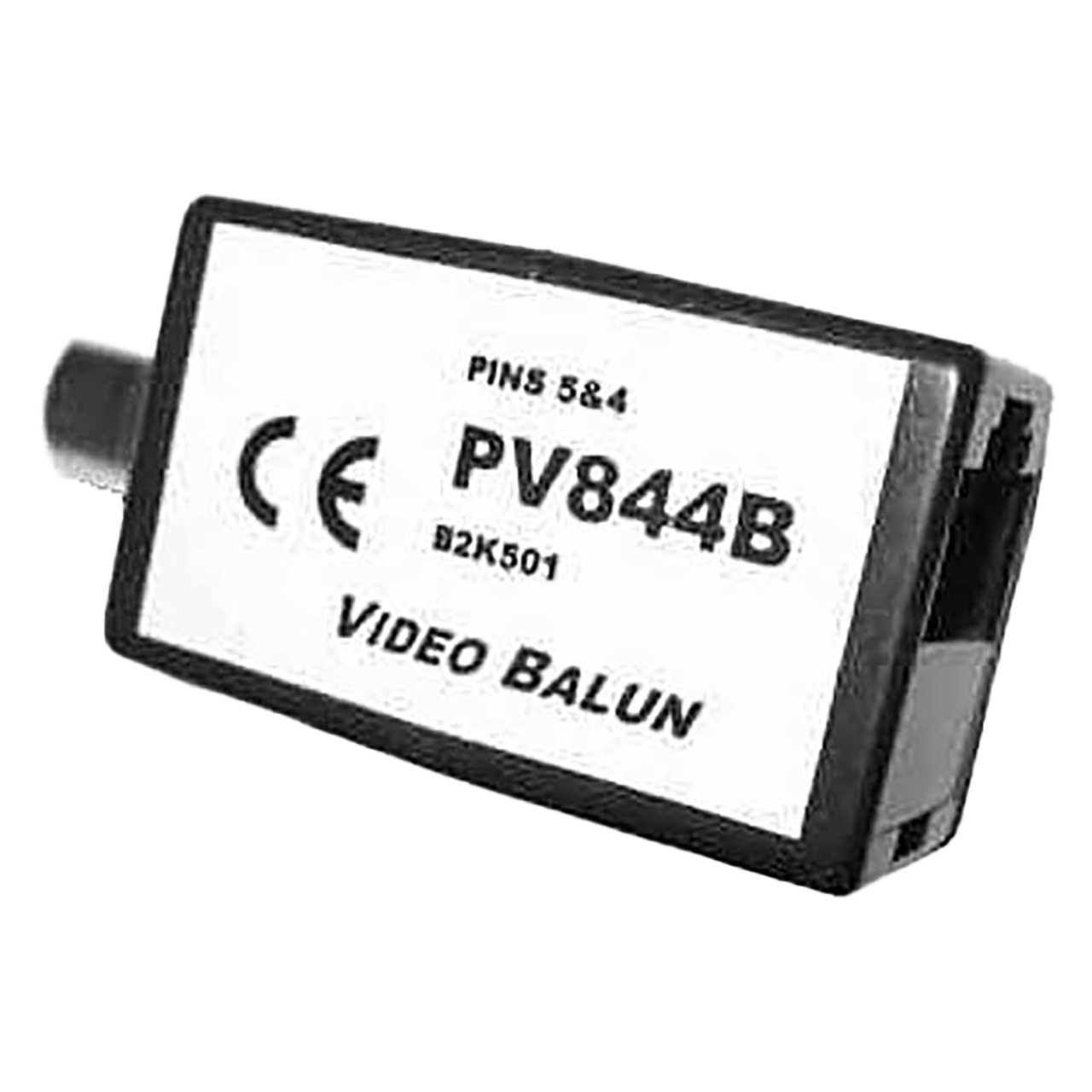

ETS PV844B Composite Video Over CAT5 Extended Baseband Balun - RCA Jack to RJ45 Pins 5 & 4
  • ETS PV844B Composite Video Over CAT5 Extended Baseband Balun - RCA Jack to RJ45 Pins 5 & 4
  • ETS PV844B Composite Video Over CAT5 Extended Baseband Balun - RCA Jack to RJ45 Pins 5 & 4
Questions? Ask a Markertek Expert:
800-522-2025 Email

ETS PV844B Composite Video Over CAT5 Extended Baseband Balun - RCA Jack to RJ45 Pins 5 & 4

Item #: ETS-PV844B   •   MFG #: PV844B


List Price:$38.95
Our Price:$32.95

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



The ETS PV840 Extended Baseband Video Baluns grant you the freedom to use UTP instead of costly coax to transmit baseband video signals throughout your facility, with better signal characteristics, and at a lower cost. Depending upon the application, it may be possible to utilize previously installed wiring with a corresponding dramatic reduction in the costs of installation.

The PV840 Series of baluns supports color video at distances in excess of 330 meters depending upon cable type. Black and white signals will typically be supported up to 750 meters.

Please Note! All ETS baluns in this series are sold individually. Pairs are required!
Only pairs of the same type will work together.These cannot be mixed and matched! i.e. a PV843 will only work with another PV843!

Some of these part#'s indicate specific pin#'s. This indicates which pins in the unit are wired that carry the composite signal thus allowing installers or engineers to wire other components to the open pins as needed.

The pin#'s are indicated as "positive" first and "negative" second. The PV843 has the "pos" signal carried over pin 7 while the "neg" is carried over pin 8. The PV844 has the positive signal on pin 4, negative signal on pin 5 and the PV844B has the positive signal on pin 5, negative signal on pin 4. etc.etc... Here is a list of the entire ETS PV840 series.....

EBV: a.k.a. "Extended Baseband Video"

PV843: EBV Balun MBNC to RJ45 jack, pins 7, 8.
PV844: EBV Balun RCA jack to RJ45 jack, pins 4, 5.
PV844B: EBV Balun RCA jack to RJ45 jack, pins 5, 4.
PV845: Quad Baseband Video Balun FBNC to RJ45, all pins.
PV846: Dual Baseband Video Balun, FBNC to RJ45 5,4 & 7, 8.
PV847: Quad Baseband Video Balun, RCA jacks to RJ45, all pins.
PV848: EBV Balun, MBNC to RJ45 jack pins 5, 4.
PV849: EBV Balun, FBNC to RJ45 jack, pins 5, 4.
PV848SL: EBV Balun, MBNC to Screwless Clamp Terminal Block.
PV848S: EBV Balun, MBNC to Screw Terminal.
PV849SL: EBV Balun, FBNC to Screwless Clamp Terminal Block.
PV849S: EBV Balun, FBNC to Screw Terminal.
PV845S: Quad Video/EBVB, FBNC to Screw Term, all pairs used.
PV842SL: F Connector to Screwless Clamp Terminal Block.

  • Features

    • Uses UTP for longdistance signal transmission with superior performance and easy, low-cost installation
    • Greater stability with wider bandwidth (0 to 60 MHz)
    • Rugged plastic cases
    • Made in USA
    • 100% tested
    • ALL Baseband Video Applications
    • Security and Surveillance
    • Video Terminals, Displays
    • Institutional Systems
    • Corporate Facilities
  • Specifications

    • Bandwidth: Flat to 60 MHz
    • Connectors: RCA Female to RJ45 jack
    • Crosstalk: >50dB
    • Media: Category 5 or better
    • Distance 1200 ft - color; 2500 ft - B/W
    • Dimensions: 46mm x 25mm x 19mm
    • Net Weight 0.02 kg
