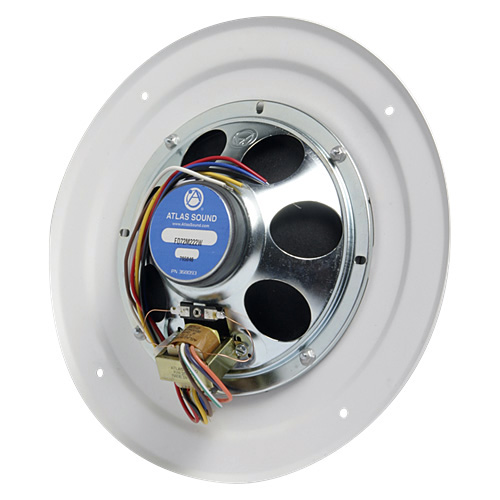

Atlas FD72M222W Pre-assembled Baffle 5 oz Loudspeaker 25/70.7V-4W Xfmr
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Atlas FD72M222W Pre-assembled Baffle 5 oz Loudspeaker 25/70.7V-4W Xfmr

    Manufacturer: Atlas Sound

    Item #: FD72M222W   •   MFG #: FD72M222W


    List Price:$48.99
    Our Price:$38.99

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.



      Model FD70M222W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V transformer and screw type grill.

      The FD70M222W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

      Speaker / transformer is factory installed on a M222W baffle featuring a contoured trim ring. Construction is of one-piece .030 aluminum. Finish is textured white.

      • Features

        • Aluminum contoured baffle
        • Attractive white finish
        • Easy to order speaker/transformer/grill assembly
        • Mounts to standard tile bridges, enclosures, and plaster rings
        • Suited for any commercial paging or BGM application
      • Specifications

        • Depth 2 5/8" (6.6675 cm)
        • Diameter 8" (20.32 cm)
        • Shipping Weight 3.17 lbs (1.44 kgs)
        • Frequency Response 50 Hz - 18 Khz, ± 1.5dB
        • Power Taps 25/70.7V
        • Speaker Type Treated Paper
        • Dispersion 105°
        • Sensitivity 97dB Peak, 94dB Average
