Liberty RGB5C-PLN Plenum Cable 1000ft Roll 5 X 26 MHR CL2P - Black
  • Liberty RGB5C-PLN Plenum Cable 1000ft Roll 5 X 26 MHR CL2P - Black
  • Liberty RGB5C-PLN Plenum Cable 1000ft Roll 5 X 26 MHR CL2P - Black

Questions? Ask a Markertek Expert:
800-522-2025 Email

Liberty RGB5C-PLN Plenum Cable 1000ft Roll 5 X 26 MHR CL2P - Black

Manufacturer:

Item #: LWC-RGB5C-PLN   •   MFG #: RGB5C-PLN



List Price:$2,218.00
Our Price:$1,996.20

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.


Share!

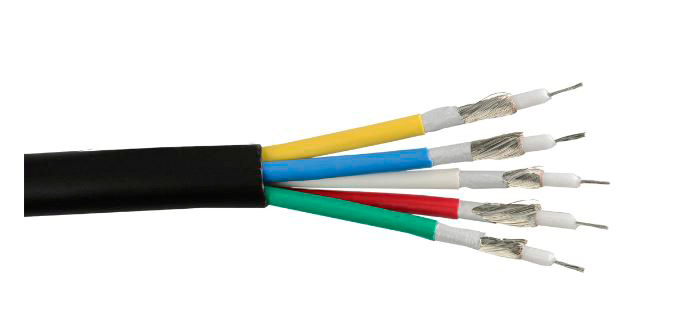

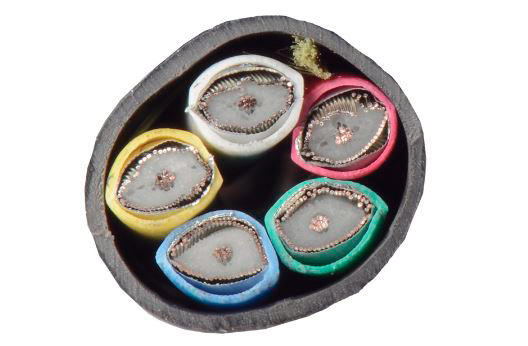

RGB cable with five 26 AWG stranded core dual shielded mini-high resolution coaxial cables jacketed under an
overall jacket
NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for
installations and applications in accordance with NEC articles 725, 800 and 820.


  • Features

    • 5 Mini high resolution stranded 26 AWG coaxes
    • Planetary cabled under one single jacket
    • Soft and flexible plenum PVC alloy jacket
    • NEC CMP, CEC CMP FT6, RoHS compliant
    • 1000 foot spools

  • Specifications

    • Conductor:
    • 26 AWG
    • 7-strand tinned annealed bare copper conductors
    • Diameter: 0.018" | 0.46mm

    • Electrical:
    • DC resistance: 41.0 O / 1000' | 134.48 O/KM
    • Shield DCR: 13.1 O / 1000' | 42.97 O/KM
    • Mutual capacitance: 16.0 pF/FT | 52.48 pF/M
    • Impedance: 75 ± 3 O
    • Velocity of Propagation: 83%
    • Voltage rating: 300V
    • SRL 5-450 MHz: -17 dB

    • Insulation:
    • Foam fluoropolymer
    • Wall thickness: 0.026" | 0.66mm
    • Diameter: 0.070" | 1.78mm

    • Regulatory:
    • NEC: CMP 75°C
    • CEC: CMP FT6 60°C
    • EU RoHS 2002/95/EC Compliant

    • Shield:
    • Each coaxial cable
    • 100% aluminum/poly tape
    • 95% 52/38 AWG tinned copper spiral serve shield
