Canare GS-6 Guitar/Instrument Cable Per Foot - Black

ITEM #: GS-6 BK MFG #: GS-6 BK

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2.19

Our Price:

$0.89

Availability: In Stock
iAvailability Description Popup


    GS-6 BK - Overview

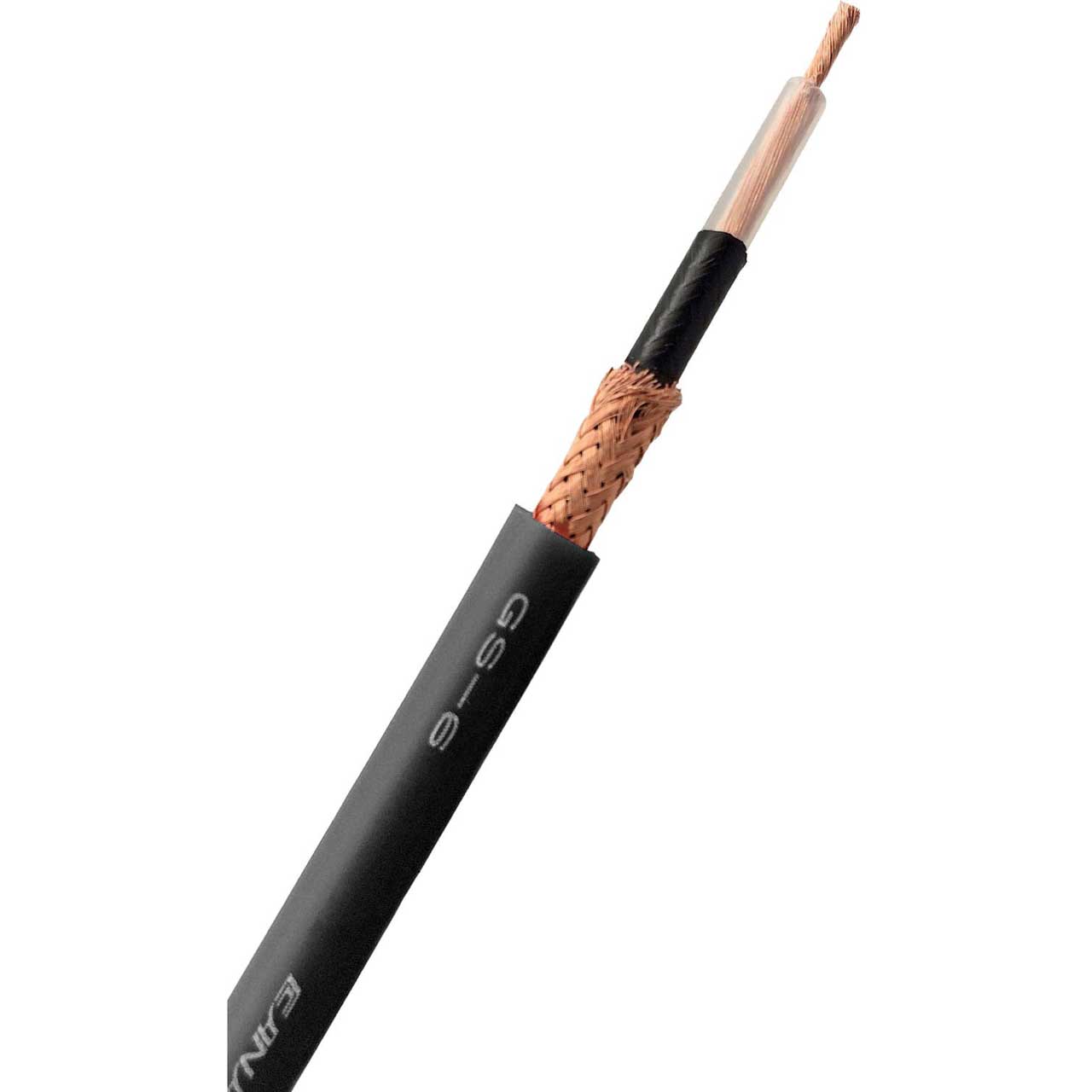

    Canare's GS-6 is a specially designed Oxygen Free Copper 18 AWG cable for connecting Guitar/Bass or Keyboards to amps, mixers, effects pedals and all outboard signal processing gear. Low capacitance and low series resistance provides improved frequency response (flat to 50kHz). A bright, ringing characteristic sound is preserved, even when using HI-Z guitar pickups with long cable runs. The proprietary double Carbon/Braid Copper shield construction eliminates micro-phonic handling noise, especially on stage where amps are often set at maximum volume levels. Also highly recommended for Amp Head to Speaker Cabinet leads.

    Note: Connectors not included

    Important Wiring Note:
    Canare GS-4 and GS-6 utilize a specially designed Conductive Carbon Plastic Shield to protect against undesirable microphonic handling noise. This inner sleeve can cause a short circuit if allowed to come in contact with the OFC center conductor. Please be very careful when stripping cable and remove this material from exposed insulation before soldering.

    Applications:

  • Electronic Instruments
  • Hi-Fi Interconnects
  • Test Probes
  • Audio Patch Cords
  • AMP to Cabinet Leads
  • Stays Flexible even in Sub-Zero Weather
  • Oxygen Free Copper Conductor & Shield
  • Reduced Microphonic Handling Noise
  • Low Capacitance & Resistance
    • Features:

      • Stays Flexible even in Sub-Zero Weather
      • Oxygen Free Copper Conductor & Shield
      • Reduced Microphonic Handling Noise
      • Low Capacitance & Resistance
      • Unbelievable durability/flexibility/low noise
      • .228" O.D.
      • Colors: Black , Blue, Orange, Red & Yellow (Specify)
      • Available per foot or in a 656ft roll

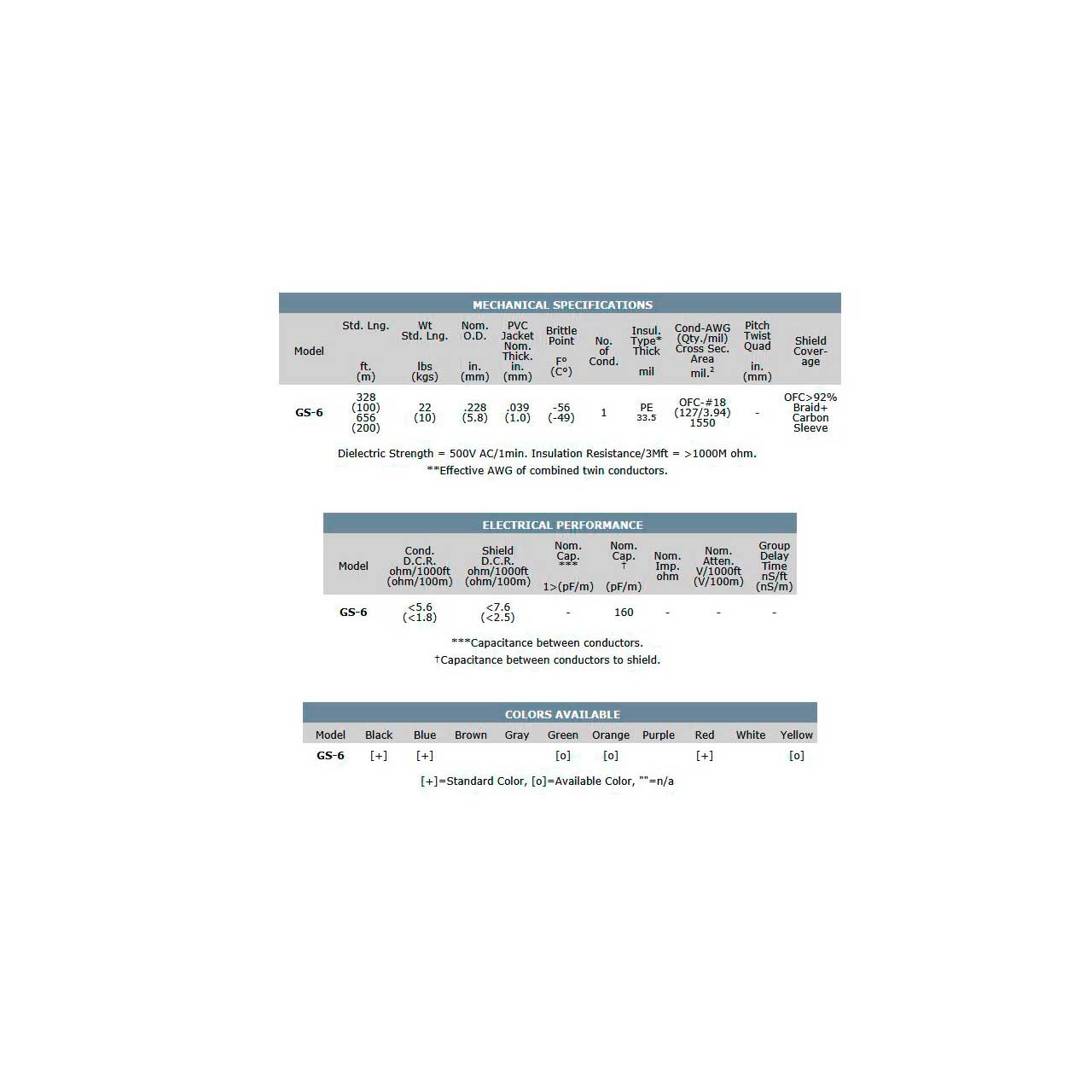

    • Specifications:

      • Mechanical Specs
      • Nom O.D. (in/mm): .228 inch (5.8mm)
      • PVC Jacket Nom. Thick. in. (mm): .039 (1.0mm)
      • Brittle Point F° (C°): -56 (-49)
      • No. of Cond.: 1
      • Insul. Type* Thick mil: PE / 33.5
      • Cond-AWG (Qty./mil) Cross Sec. Area mil.: OFC-#18 (127/3.94) 1550
      • Shield Coverage: OFC>92% Braid+ Carbon Sleeve

        Electrical Performance
      • Cond. D.C.R. ohm/1000ft (ohm/100m): <5.6 (<1.8)
      • Shield D.C.R. ohm/1000ft (ohm/100m): <7.6 (<2.5)
      • Nom. Cap. (pF/m): 160
