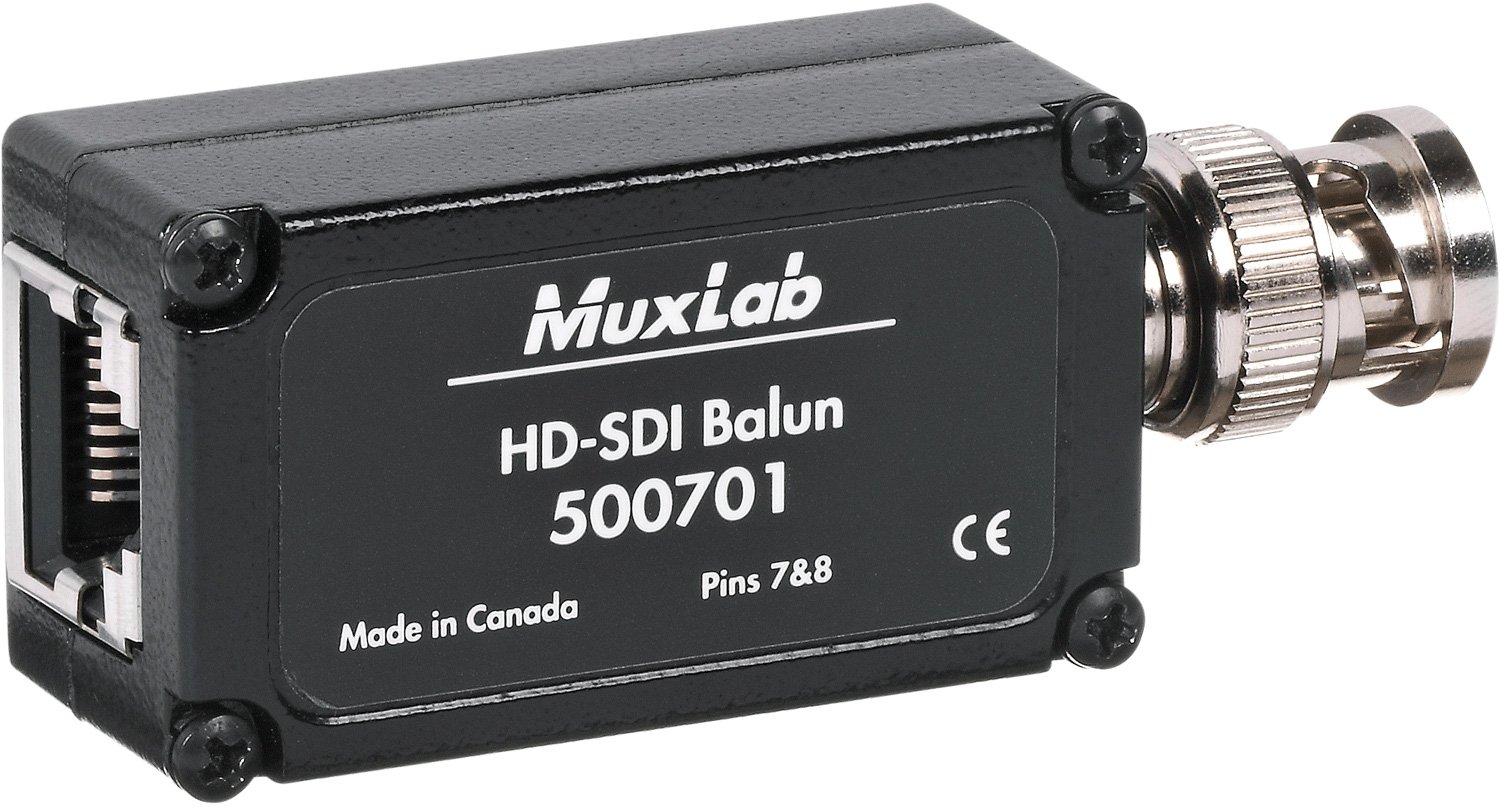

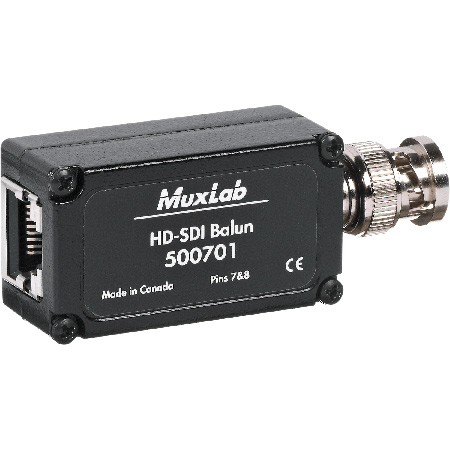

MuxLab 500701 HD-SDI Balun

Manufacturer: MuxLab Inc

Item #: MUX-500701   •   MFG #: MUX-500701

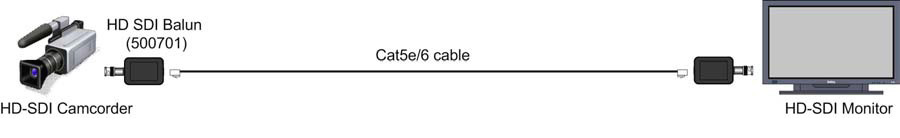

The HD-SDI Balun (500701) allows one HD-SDI signal to be transmitted up to 150 ft (45m) via Cat5e cable at HD resolution in a point-to-point configuration. The HD-SDI Balun supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment.

  • Features

    • Supports SD, HD and 3G resolutions
    • Up to 150 ft (45m) via Cat5e cable @ HD
    • Up to 400 ft (120m) via Cat5e cable @ SD
    • Supports Cat5e/6 cable
    • Cast aluminum enclosure for EMI/RFI shielding
  • Warranty

    • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products
