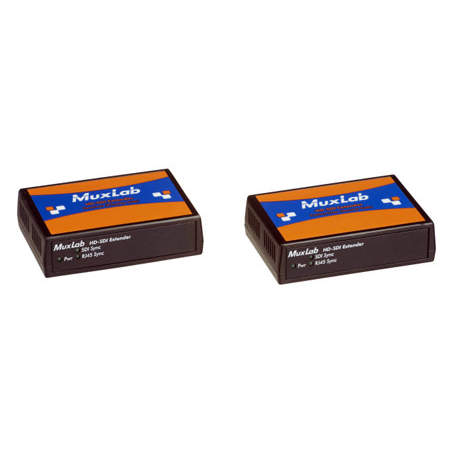

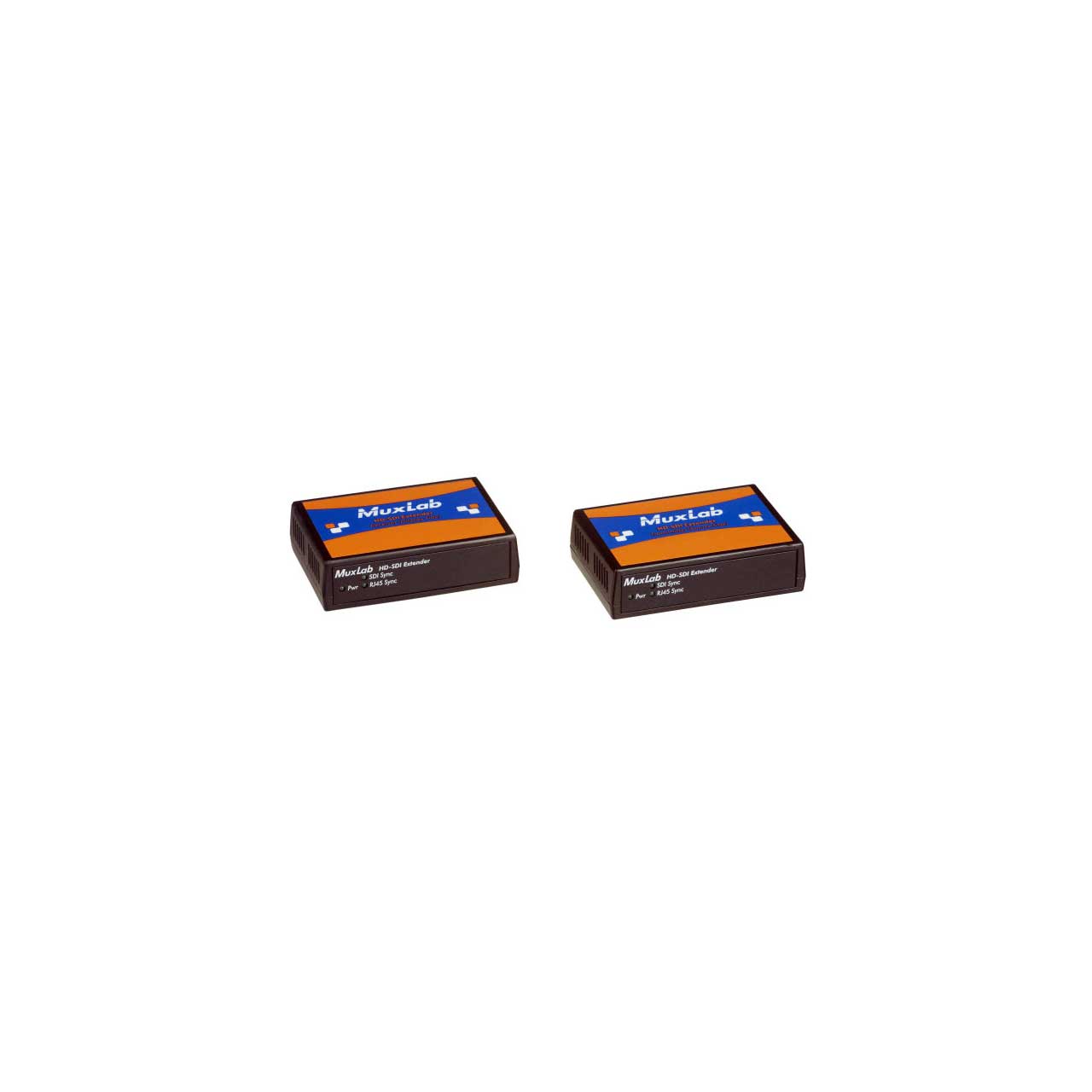

MuxLab 500702 LongReach HD-SDI over Cat5 Extender Kit

ITEM #: MUX-500702 MFG #: 500702

free ship

List Price:

$1,298.00

Our Price:

$889.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


500702 - Overview

The LongReach HD-SDI Extender Kit (model 500702) features LED diagnostics for sync, signal detect and supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video within television facilities and between professional video equipment. Up to 500 ft.

  • Features:

    • Supports SDI-SMPTE 259M-C (270Mbps) HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps) HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps)
    • Up to 500 ft via Cat5e/6 at all resolutions
    • LED diagnostics; sync, signal detect
    • Cast aluminium enclosure
    • 2 year warranty

  • Specifications:

    • Environment: SDI single link: SD, HD & 3G.
    • Devices: Monitors or any equipment supporting SDI single link.
    • Standard supported: SMPTE 259M (270Mb/s), SMPTE 292M & SMPTE 424M.
    • Bit rates: 270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection).
    • Format tested: SD: 525i, 59.94 Hz & 625i, 50 Hz
    • HD: 1035i, 60 Hz & 1080i, 50 Hz & 1080p, 30 Hz & 1080i, 60 Hz &
    • 1080p, 25 Hz & 1080i, 50 Hz & 1080p, 24 Hz & 720p, 60 Hz
    • 3G: 1080p, 4:2:2, 10b, 60Hz & 1080p, 4:2:2, 10b, 50Hz &
    • 720p, 4:4:4:4, 10b, 60Hz & 720p, 4:4:4:4, 10b, 50Hz &
    • 1080p, 4:4:4:4, 10b, 30Hz & 720p, 4:4:4:4, 10b, 30Hz &
    • 1080p, 4:4:4:4, 10b, 25Hz & 720p, 4:4:4:4, 10b, 25Hz &
    • 1080p, 4:4:4:4, 10b, 24Hz & 720p, 4:4:4:4, 10b, 24Hz &
    • 1080i, 4:4:4:4, 10b, 30Hz & 1080i, 4:4:4:4, 10b, 25Hz &
    • 1080p, 4:4:4, 12b, 30Hz & 1080p, 4:4:4, 12b, 25Hz &
    • 1080p, 4:4:4, 12b, 24Hz & 1080i, 4:4:4, 12b, 30Hz &
    • 1080i, 4:4:4, 12b, 25Hz & 1080p, 4:2:2, 12b, 30Hz &
    • 1080p, 4:2:2, 12b, 25Hz & 1080i, 4:2:2, 12b, 30Hz &
    • 1080i, 4:2:2, 12b, 25Hz
    • Indicators:
    • Power
    • SDI Sync
    • RJ45 Link
    • Connectors On each unit:
    • One BNC 75 ohm female.
    • One RJ45S for Cat5e/6 unshielded twisted pair.
    • One power connector, 2mm.
    • Maximum Distance:
    • UTP Cat 5e: 500 ft (150 m) UTP Cat 6: 500 ft (150 m) for 500702
    • Maximum distance applies for all format and speed between boxes. On
    • the SDI side, the use of an equalizer at input and a clock regenerator at
    • output allow to reach the maximum distance on coax.
    • RJ45 Pin Configuration:
    • Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straight-through wiring.
    • RJ45 Link
    • Pin 1 (R) Pin 2 (T)
    • Pin 3 (R) Pin 6 (T)
    • Pin 4 (R) Pin 5 (T)
    • Pin 7 (R) Pin 8 (T)
    • Cables (Not included): One straight Cat 5e/6 twisted pair cables required.
    • Two 75 ohm coaxial cables with 75 ohm BNC required.
    • Power Supply (Included): Two 100-240V/5-12VDC 15W power supplies with interchangeable blades for NA, Europe and UK.
    • Power Consumption: Transmitter: 4 Watts Receiver: 8 Watts
    • Dimensions 4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
    • Weight 2.5 lb. (1.1 kg)
    • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0

  • Warranty:

    • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products

  • GTIN:

    0627699007020
