Optical Wavelength Labs KIT-Z2-D2ST ZOOM 2/Dual OWL ST Multimode Fiber Test Kit

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

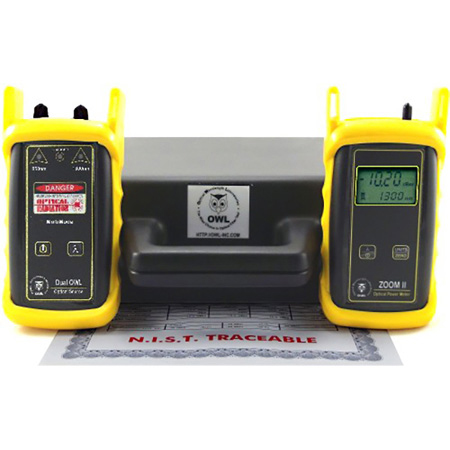

    Optical Wavelength Labs KIT-Z2-D2ST ZOOM 2/Dual OWL ST Multimode Fiber Test Kit

    Item #: OWL-KIT-Z2-D2ST   •   MFG #: KIT-Z2-D2ST



    List Price:$635.00
    Our Price:$574.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      The ZOOM II / Dual OWL Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode networks.

      The ZOOM II (Zeroed Output Optical Meter) is an economical fiber optic power meter. It provides accurate
      testing of multimode fiber cables. The 4-digit 7-segment LED display shows power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The ZOOM II comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule.

      The Dual OWL is our 850/1300nm NIST traceable multimode light source. Its dual wavelength outputs are temperaturestabilized for accurate measurements. The Dual OWL has two connector options: ST or SC.


      • Features

        • Economical option for quick attenuation and loss testing of multimode networks at 850 and 1300nm
        • Easy-to-read 4-digit 7-segment LCD display
        • Store reference values for calibrated wavelengths
        • Intuitive 2-button interface on both units
        • On-screen wavelength, measurement units, and low battery
        • indicator
        • NIST traceable

      • Specifications

        • ZOOM II Optical Power Meter
        • Detector: InGaAs 1mm
        • Calibrated Wavelengths: 850nm, 1300, 1310nm, 1550nm
        • Measurement Range: +5 to -60 dBm (standard)
        • Accuracy1: ±0.15 dB
        • Linearity1: ±0.20 dB
        • Resolution: 0.01 dBm
        • Battery Life: up to 250 hours
        • Operating Temperature: 0 to 55°C
        • NIST Traceable: Yes
        • Battery Capacity Display: Yes
        • Connector: 2.5mm Universal
        • Width: 2.75"
        • Height: 4.94"
        • Depth: 1.28"
        • Weight: 154g
        • Conforms to the Harmonized European Standards EN 61326-1 and EN 61010-1.

          Dual OWL Multimode Light Source
        • Launch Method: LED
        • Connector: ST
        • Center Wavelength (850nm): 850 ±30nm
        • Center Wavelength (1300nm): 1290nm min;1350nm max
        • Spectral Width (FWHM; 850 nm): 60 nm
        • Spectral Width (FWHM; 1300nm): 170 nm
        • Output Power: -20.0 dBm
        • Initial Accuracy: 0.1 dB
        • Fiber Type: Multimode
        • Battery Life: 40 hours
        • Battery Capacity Display: Yes
        • Operating Temperature: 0 to 55° C
        • Storage Temperature: 0 to 75° C
        • Width: 2.75"
        • Height: 4.94"
        • Depth: 1.28"
        • Weight: 154g

      • Item Includes

        • Power Meter: ZOOM II
        • Light Source: Dual OWL
        • Accessories: Product manuals
        • 9-volt batteries
        • NIST certificate
        • Carrying case
        • Protective rubber boots
