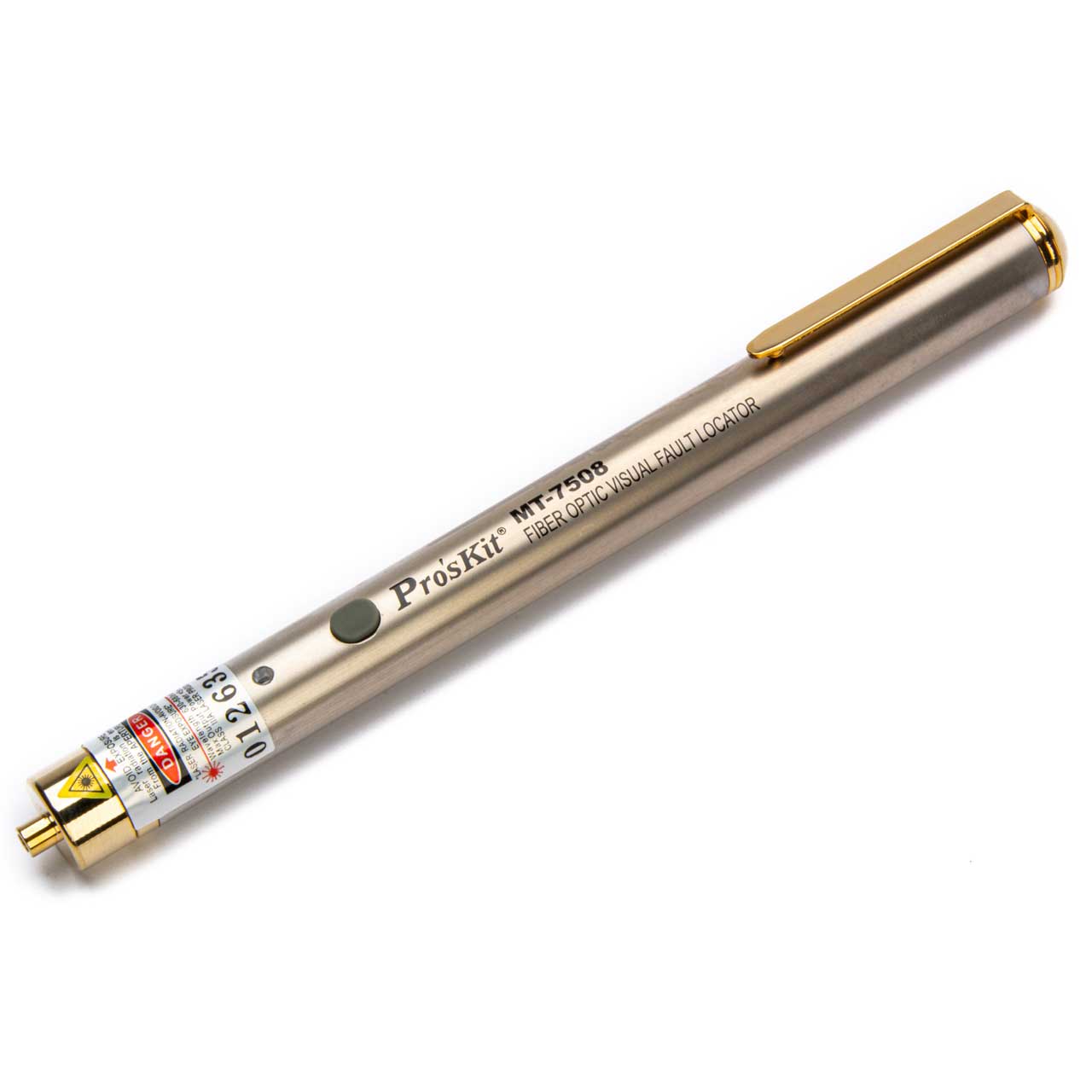

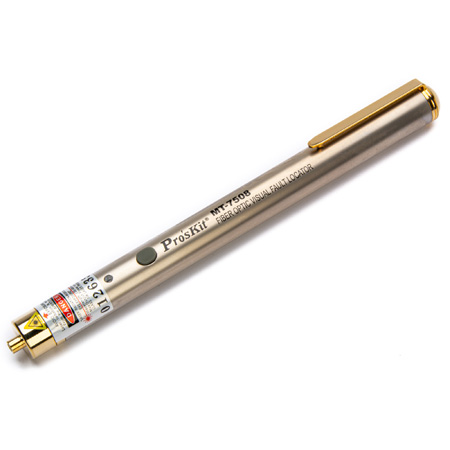

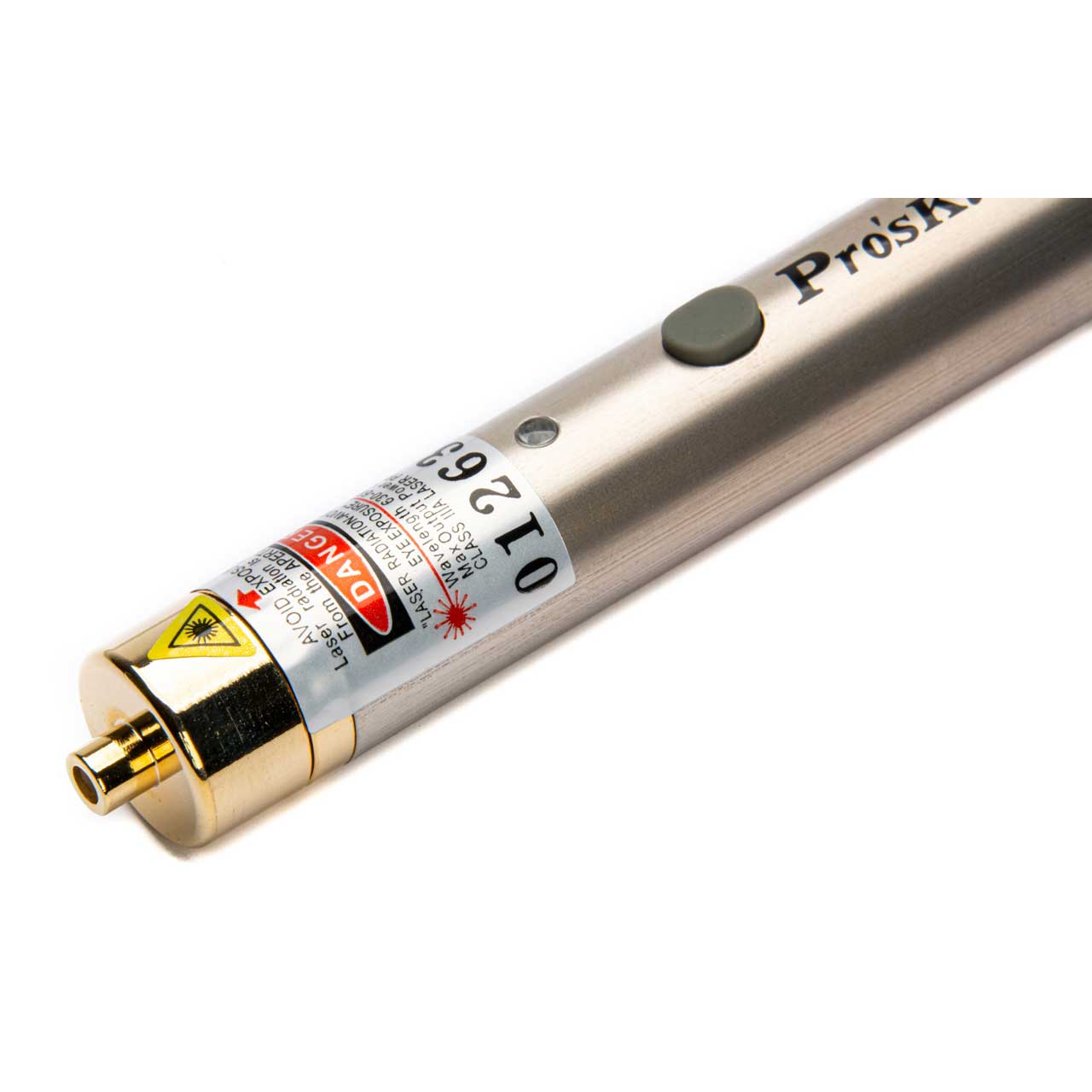

Eclipse 902-186N Visual Fault Locator & Light Source for ST/SC & 2.5mm Fiber Connectors & Cables

ITEM #: MT-7508 MFG #: MT-7508

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$126.21

Our Price:

$113.59

Availability: In Stock
iAvailability Description Popup


    MT-7508 - Overview

    The Eclipse 902-186 Fiber Optic Laser Tester is a light source used to locate breaks and misconnections in fiber optic cables. It is an ideal instrument to find the broken or bent patch cords, especially in fiber identification among ribbon or bunched optic fiber pigtails during the installation, in which identifying fiber from end to end may be troublesome or time-consuming. It as a 635nm Class III A laser source with an output power of 5mW and it can be used on SM (single mode) fibers.

    The 902 186 projects a highly visible red light into a fiber optic cable. The operator simply looks at the length of cable and where light is seen, there is a break. Equipped with a high-power, extra long-life, 635nm Class III A laser diode, it operates in a Continuous mode. Any breaks will be seen as a conspicuously glowing red light point.

    WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

    • Features:

      • Simple, versatile, and user-friendly design
      • Rugged, compact, and splash proof copper housing
      • Three operation modes available: "CW" (Continuous wave output), "Pulse" and "Off" modes
      • Continuous wave output mode (CW) for steady fault illumination
      • Pulse mode helps to locate faults under high ambient light conditions
      • Support 2.5mm connectors (for PC/FC/SC/ST)
      • The button switch permits easy one handed operation
      • Handy, pocket pen design
      • 2 AAA-size alkaline batteries provide 50 hours of continuous operation

    • Specifications:

      • Body: Copper
      • Laser Class: Class 3A laser diode
      • Nominal Wavelength: 650nm ± 10nm
      • Operating Temp.: 0 ~ 40°C
      • Storage Temp.: 0 ~ 50°C
      • Dimensions: Length 160 ± 2mm, Diameter 13.5mm
      • Batteries: 2 x AAA (Not Included)

    • GTIN:

      0617293015163
