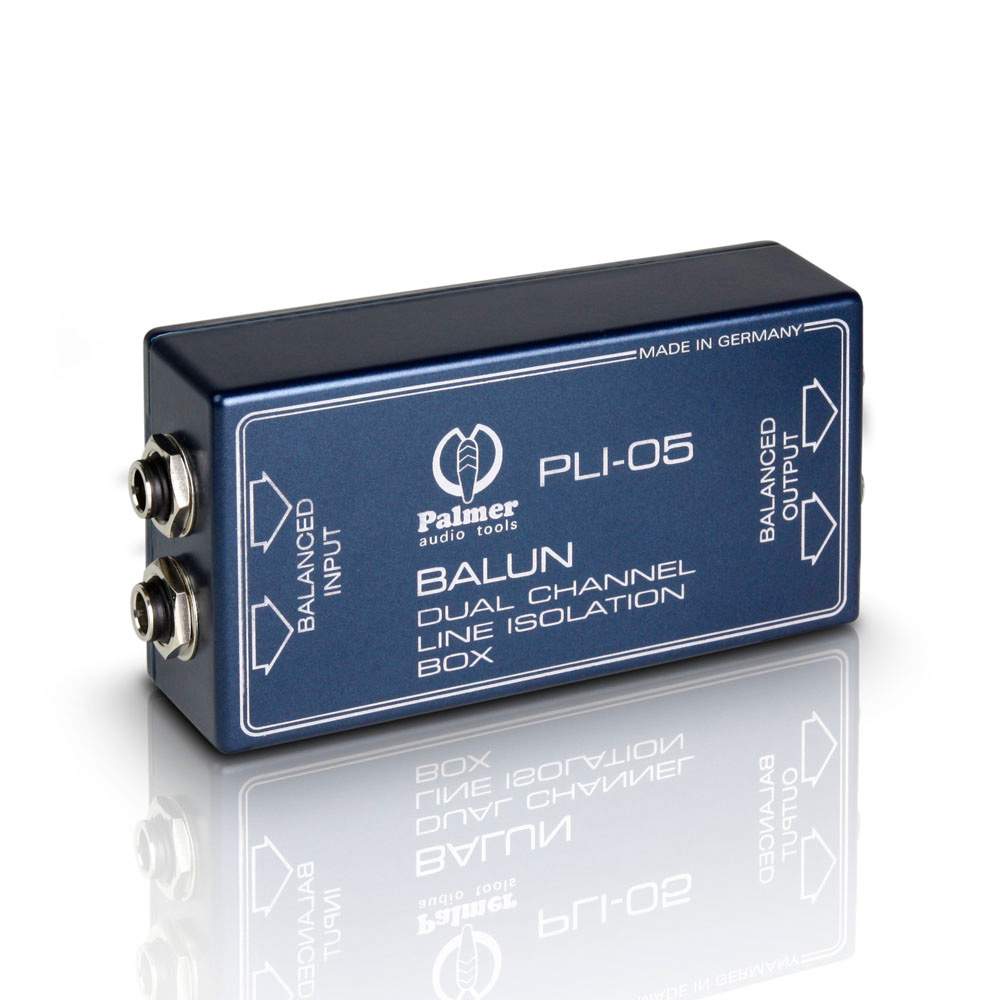

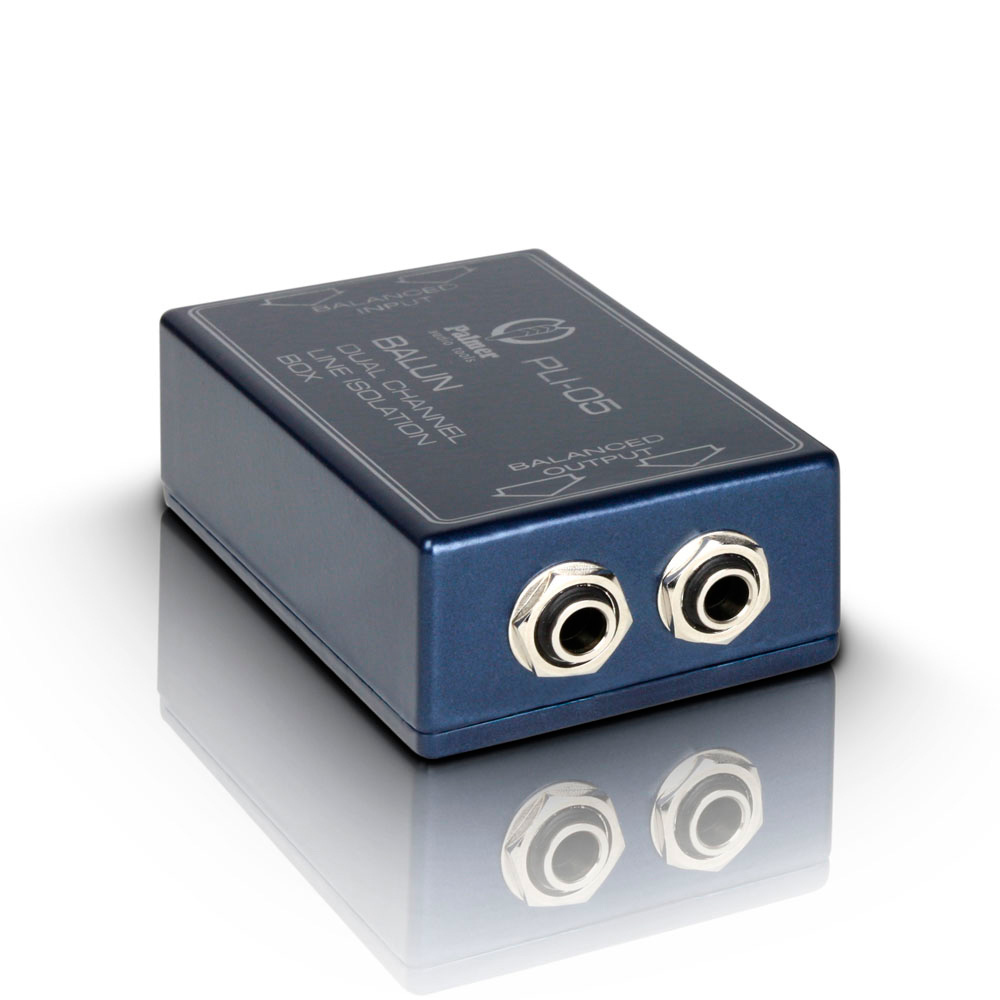

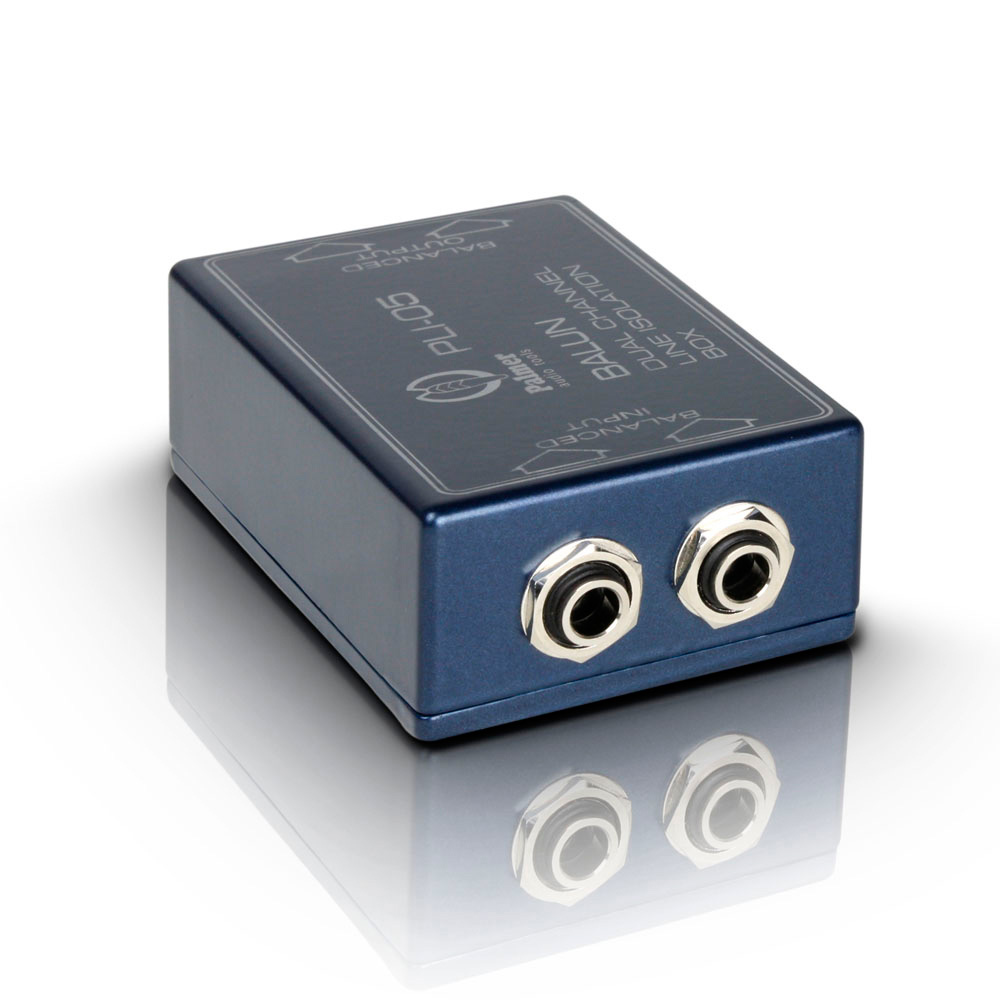

Palmer Audio PLI05 Line Isolation Box 2 Channel
  • Palmer Audio PLI05 Line Isolation Box 2 Channel
  • Palmer Audio PLI05 Line Isolation Box 2 Channel
  • Palmer Audio PLI05 Line Isolation Box 2 Channel

Questions? Ask a Markertek Expert:
800-522-2025 Email

Palmer Audio PLI05 Line Isolation Box 2 Channel

Manufacturer: Palmer Audio

Item #: PLM-PLI05   •   MFG #: PLI05



List Price:$280.95
Our Price:$169.95

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    Balanced or unbalanced isn't the question here. BALUS stands for Balanced-Unbalanced. Due to the stereo TRS jacks used in the PLI05, it can cope with both balanced and unbalanced signals. The PLI05 is so to say the PLI02's little sister. Both boxes can be used to convert balanced to unbalanced and both use so called line isolating transformers to realize a galvanic separation. They are connected between mains powered devices to reliably prevent ground loop hum. The PLI02 was designed for use with XLR connections and for low impedances (600 Ohms). The PLI05 on the other hand with its jack connector is better for higher impedances. It covers a wide range from 600 Ohms to over 10 k Ohms. The attached diagrams for harmonic distortion, frequency- and phase characteristics demonstrate this quite clearly. To prevent loss of level make sure that your input impedance is not higher than the output impedance. Both devices are suitable for high levels of up to +20dBu.


    • Features

      • For balanaced and unbalanced signals + Can tranform unbalanced signals to balanced

    • Specifications

      • Product type: line isolator
      • Type: passive
      • Channels: 2
      • Inputs: 2
      • input connectors: 2 x 6.3 mm TS
      • input type: balanced/unbalanced (depending on TS/TRS connection)
      • input impedance: 10k Ohm(s)
      • max. input level: + 6 dBu
      • Outputs: 2
      • output connectors: 6.3 mm Jack
      • output type: balanced/unbalanced (depending on TS/TRS connection)
      • output impedance: 600 Ohm(s)
      • max. output level: + 6 dB
      • transformer balanced: yes
      • Ratio: 1:1
      • Frequency response: 20 - 20.000 Hz
      • cabinet material: die-cast aluminium
      • Cabinet / Housing surface: powder coated
