Palmer Audio PPB10 Press Patch Box 10-channel

ITEM #: PLM-PPB10 MFG #: PPB10

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PLM-PPB10

PPB10 - Overview

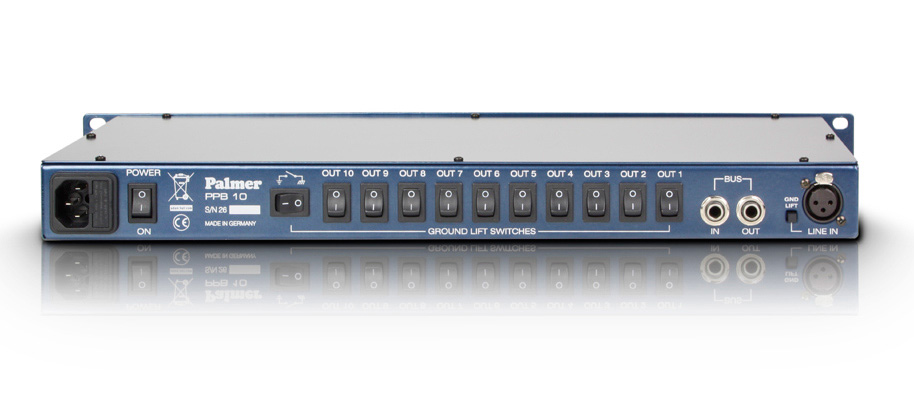

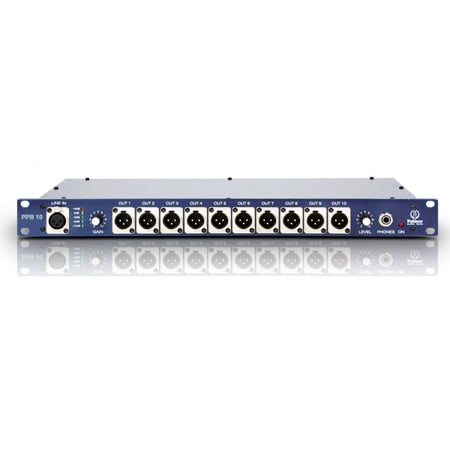

The PPB10 is a compact version of the well known and established PPB20 from Palmer. The PPB10 is a 10 channel audio splitter for press conferences and other applications. On a transformer split basis, one line input is split out to ten outputs.

  • Features:

    • 10 Channel press patch box + All inputs and outputs are balanced transformer isolated + Units are cascadable


  • Specifications:

    • Product type: splitter
    • Type: line split
    • split type: 1 in 10
    • Channels: 1
    • Inputs: 1
    • input connectors: XLR
    • max. input level: + 20 dB
    • adjustable input: yes
    • number of split-outputs per canal: 10
    • THRU outputs/channel: 1
    • max. output level: + 4 dB
    • output connectors: XLR
    • adjustable output: no
    • transformer isolated outputs: yes
    • controls: Power, phones level, input gain, ground lift
    • power supply: integrated (115 / 230 V)
    • cabinet material: sheet steel
    • Cabinet / Housing surface: powder coated


  • GTIN:

    4049521079566
