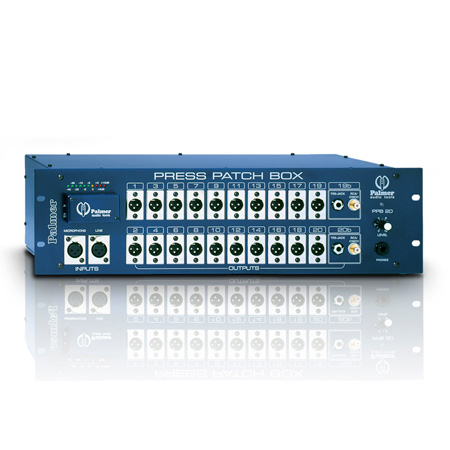

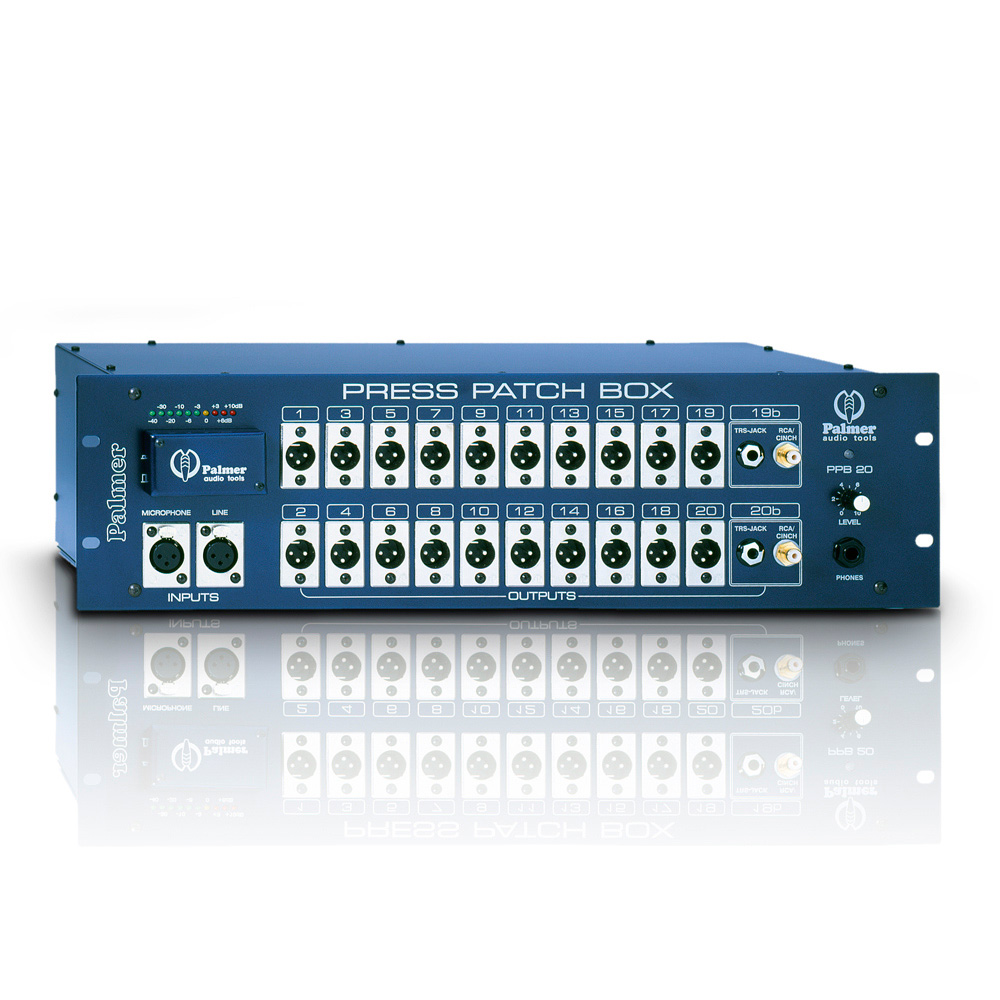

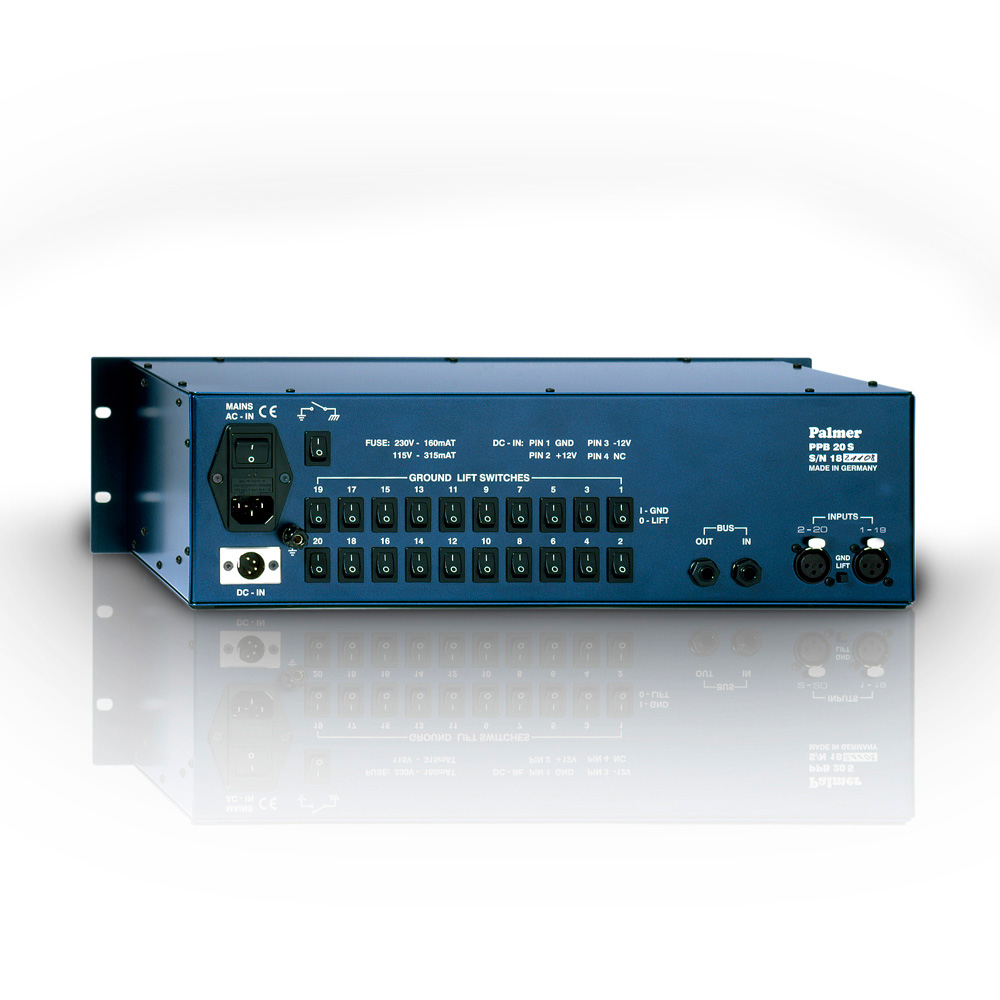

Palmer Audio PPB20S Press Patch Box 10-channel stereo / 20-channel mono

ITEM #: PLM-PPB20S MFG #: PPB20S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PLM-PPB20S

PPB20S - Overview

A stereo version of the PPB20 is also available. Instead of having one microphone and one line input the stereo version has two line inputs. The first input is split on to the upper row of outputs i.e. on to the odd channels whereas the second line input is split on to the lower row of outputs, i.e. the even channels.

  • Features:

    • 10 Channel stereo / 20 Channel Mono press patch box + All inputs are balanced transformer isolated + Separate inputs for mic and line signals


  • Specifications:

    • Product type: splitter
    • Type: mic & line split
    • split type: 2 in 10 + 10
    • Channels: 2
    • Inputs: 2
    • input connectors: XLR
    • max. input level: + 20 dB
    • adjustable input: yes
    • number of split-outputs per canal: 10
    • THRU outputs/channel: 1
    • max. output level: + 20 dB
    • output connectors: 6.3 mm Jack, RCA, XLR
    • adjustable output: no
    • transformer isolated outputs: yes
    • controls: input gain, phones level, mic/line switch, ground lift, attenuator, Power
    • power supply: integrated (115 / 230 V)
    • cabinet material: sheet steel
    • Cabinet / Housing surface: powder coated


  • GTIN:

    4049521049552
