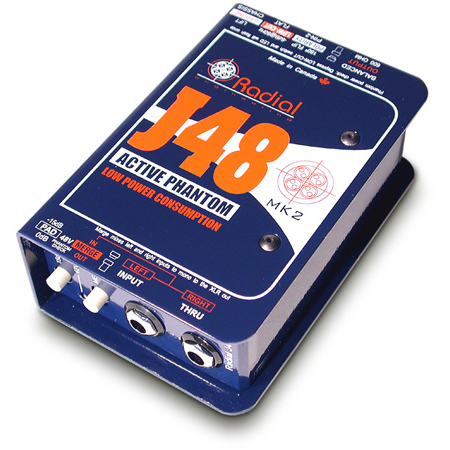

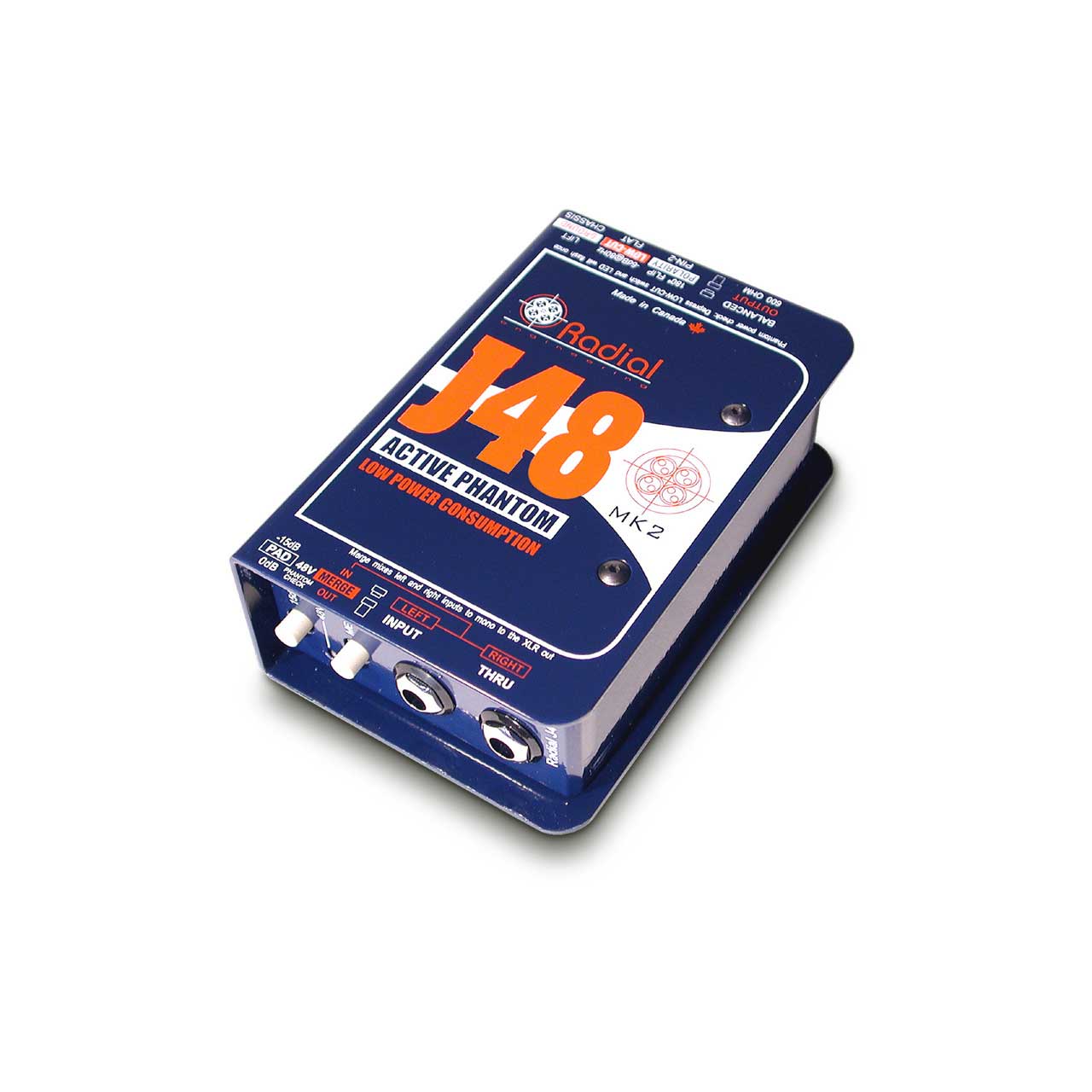

Radial J48 Active 48V Phantom Powered Direct Box w/Digital Switching Supply

Manufacturer: Radial Engineering

Item #: RAD-J48   •   MFG #: R800 3001 (J48)



List Price:$220.00
Our Price:$199.99

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    The Radial J48 is a great sounding active direct box that has been optimized to produce maximum headroom while working within the limited current available from standard 48V phantom power. By employing a unique switching power supply, the J48 is capable of peak transients to 9 volts without choking. The result is lower harmonic distortion, half the inter-modulation distortion and significantly improved dynamics over other DIs.

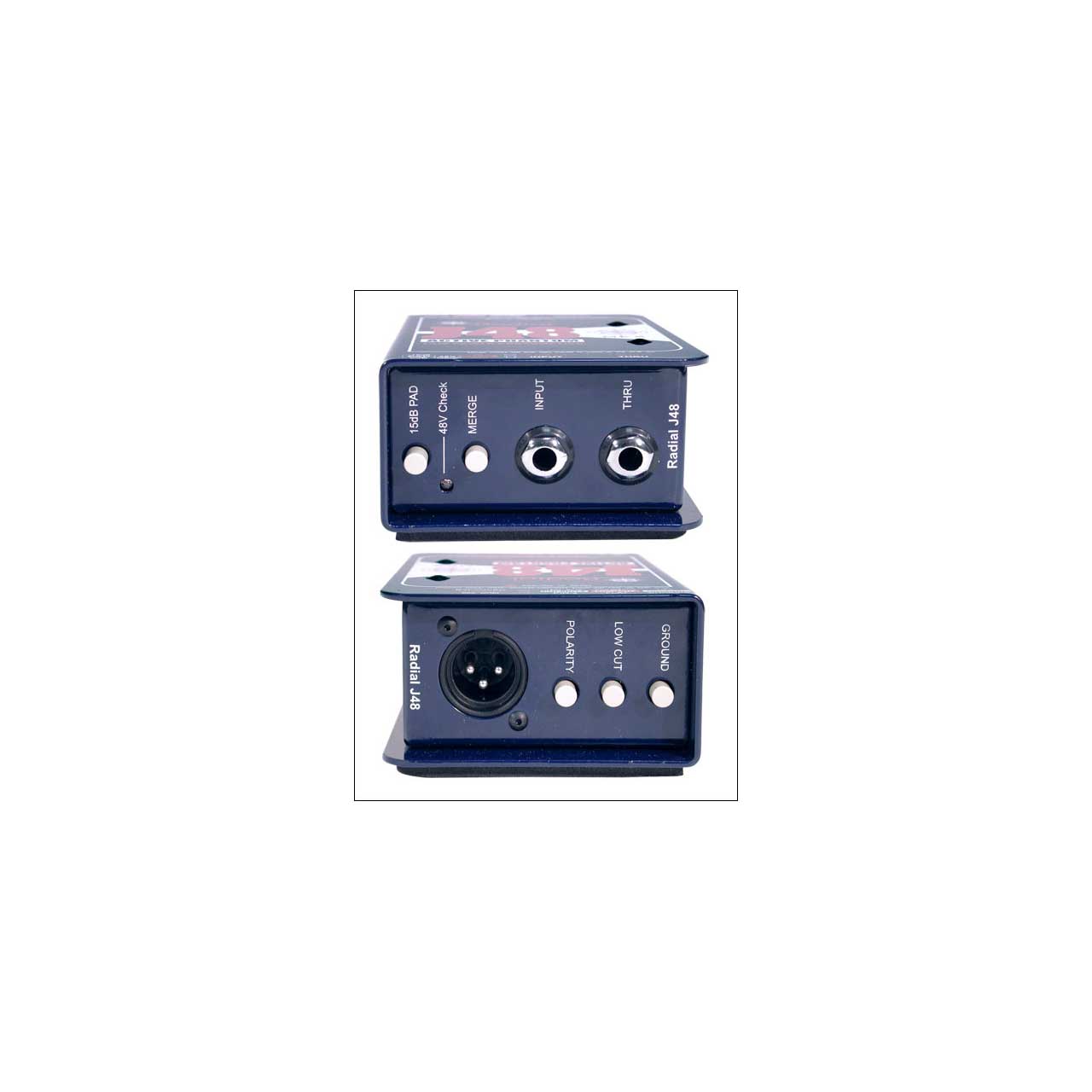

    Features include a -15dB pad, 180degree polarity reverse, a unique merge function to mix two signals to mono, an 80Hz high-pass rumble filter, and ground lift. Like all Radial products, the J48 is built to handle the abuse on the road and features a unique welded I-beam construction for years of trouble free performance.


    • Features

      • Active 48-Volt phantom powered direct box
      • Minimal power draw with high rail voltage
      • Will not choke when driven hard
      • Low inter-modulation distortion

    • Specifications

      • Audio circuit type: Proprietary analog circuit with low-noise op-amp
      • Frequency response: 20Hz ~ 20kHz
      • Dynamic range: 109dB
      • Noise floor: -99dB below 0dBu
      • Equivalent input noise: -103dBu
      • Maximum input: +10dBu
      • Phase deviation: +10° at 20Hz | 0° at 1kHz | -1° at 20kHz
      • Total harmonic distortion: 0.002% @ -5dBu
      • Inter-modulation distortion: 0.003% @ -3dBu
      • Input impedance: 220kΩ - 1/4" input
      • Output impedance: 600Ω - XLR output
      • Merge function: IN and THRU jacks are summed to mono
      • Input pad: -15dB
      • Polarity: 180§ signal polarity reverse switch
      • Low-cut filter: -3 dB @ 80Hz
      • Ground lift: Disconnects pin-1 at XLR output
      • XLR configuration: AES standard (pin-2 hot)
      • Power: 48V phantom - proprietary digital switching
      • Construction: 14 gauge steel chassis and outer shell
      • Finish: Durable powder coat
      • Size: 3.3" x 5.0" x 2" (84 x 127 x 48mm)
      • Weight: 1.55 lb (720 g)
      • FCC approval: Complies with section 15 of the FCC Rules
      • Conditions: For use in dry locations only between 5°C and 40°C
      • Warranty: Radial 3-year, transferable
