    BM-24 - Overview

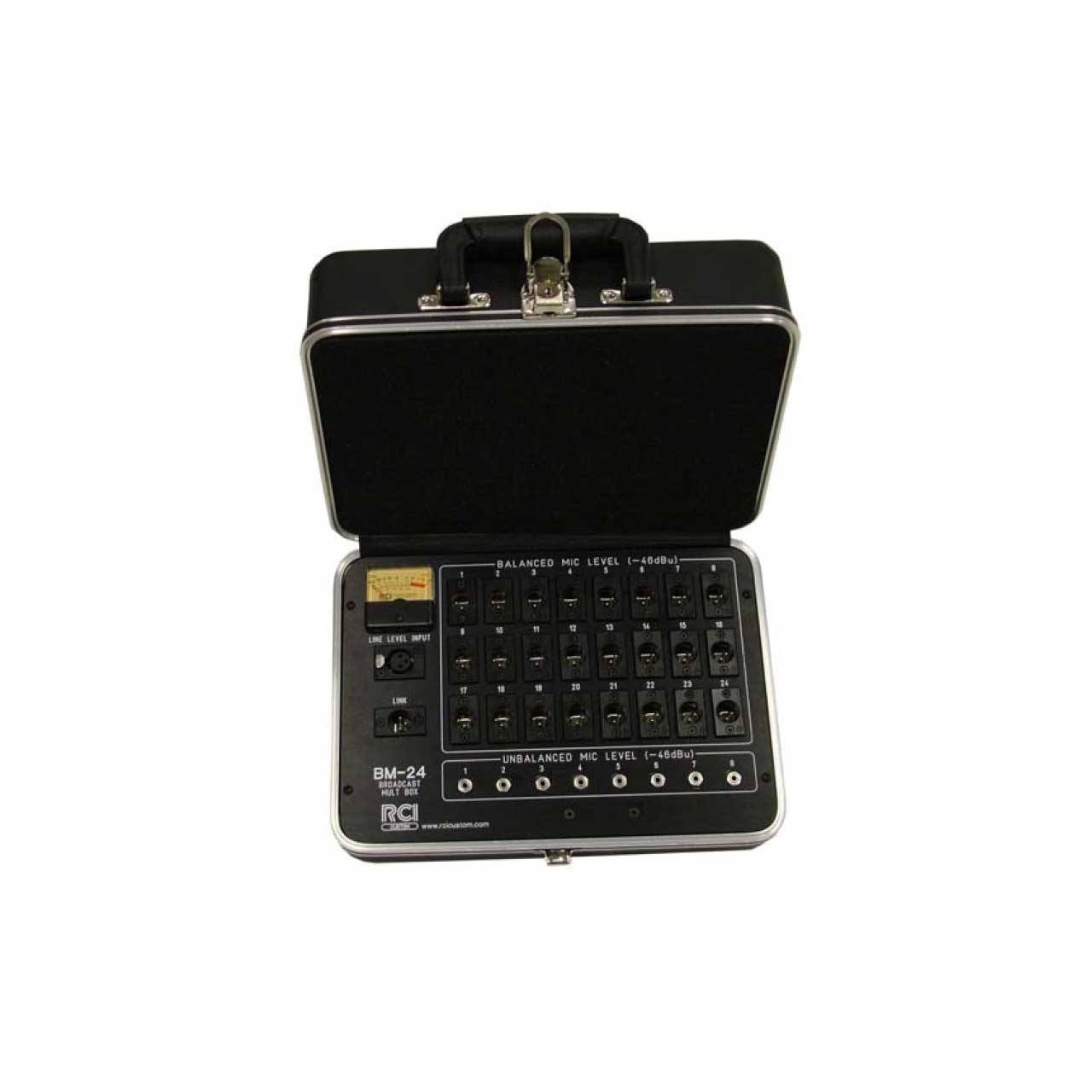

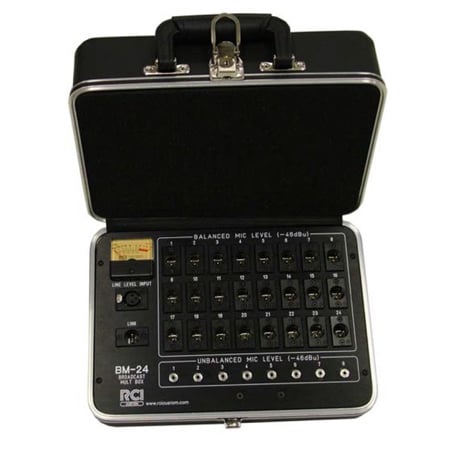

    The RCI BM-24 is a 24 output, portable "Broadcast Media Multi Box". The unit enables a single line level audio source to feed 24 audio outputs with balanced isolation. The input of the BM-24 is designed to operate at a nominal line level of +4dBu. The outputs provide a nominal mic level of -46dBu. The outputs are highly isolated to prevent trouble in one media member's cable or equipment from affecting the audio received by other media members. In addition to the 24 XLR balanced outputs, the unit provides mini phone jacks (also highly isolated) for unbalanced equipment. Up to three BM-24's may be linked together via the "Input Mult" connection, providing up to 72 balanced and 24 unbalanced outputs. The BM-24 is a passive device requiring no power, and is maintenance free. Additionally, the unit is housed in a rugged attach‚ case, which also provides storage space for a microphone and cable or a small mixer. Designed for broadcast industry use, the BM-24 is a proven workhorse backed by years of reliability in the field.

    • Features:

      • Line Level Audio Input
      • 24 Isolated XLR Outputs
      • 8 - 1/8" Mini Isolated Outputs
      • 85 dB Isolation
      • Rack Mount and Custom Versions Available
      • Input Level VU Meter
      • Link Output to Additional BM-24's
      • Passive and Maintenance Free
      • Rugged ABS Case Construction
      • Compact and Weighs Only 5 Lbs.
      • Made in the USA

    • Specifications:

      • Input: +4dBu, 2k ohms, balanced.
      • Output: -46dBu, 150 ohms, balanced.
      • Isolation: 85dB between outputs.
      • Response: 20Hz to 20kHz, + 0.1 dB.
      • THD: <.001%.
      • Connectors: Input: XLR; 1 male, 1 female, Output: 24 XLR male, 8 mini phone.
      • Dimensions: 228mm H x 305mm W x 140mm D (9" x 12" x 5-1/2").
      • Storage Space: 216mm H x 298mm W x 76mm D (8-1/4" x 11-3/4" x 3").
      • Weight: 3.7kg (5 lbs.).
      • Finish: Black anodized engraved panel, ABS thermoplastic shell with extruded aluminum frame, key locks and molded steel core handle.
