AudioPressBox APB-216-C-D Portable Active Dante-Enabled Pressbox w/ 2 Line/Mic Inputs & 16 Line/Mic Outputs - Tan

ITEM #: APB-216-C-D-TN MFG #: APB-216-C-D-TN

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$3,755.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    APB-216-C-D-TN - Overview

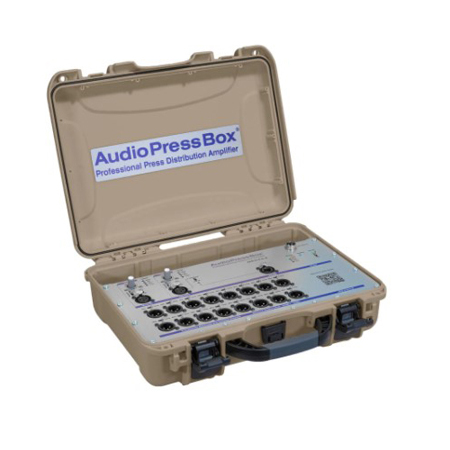

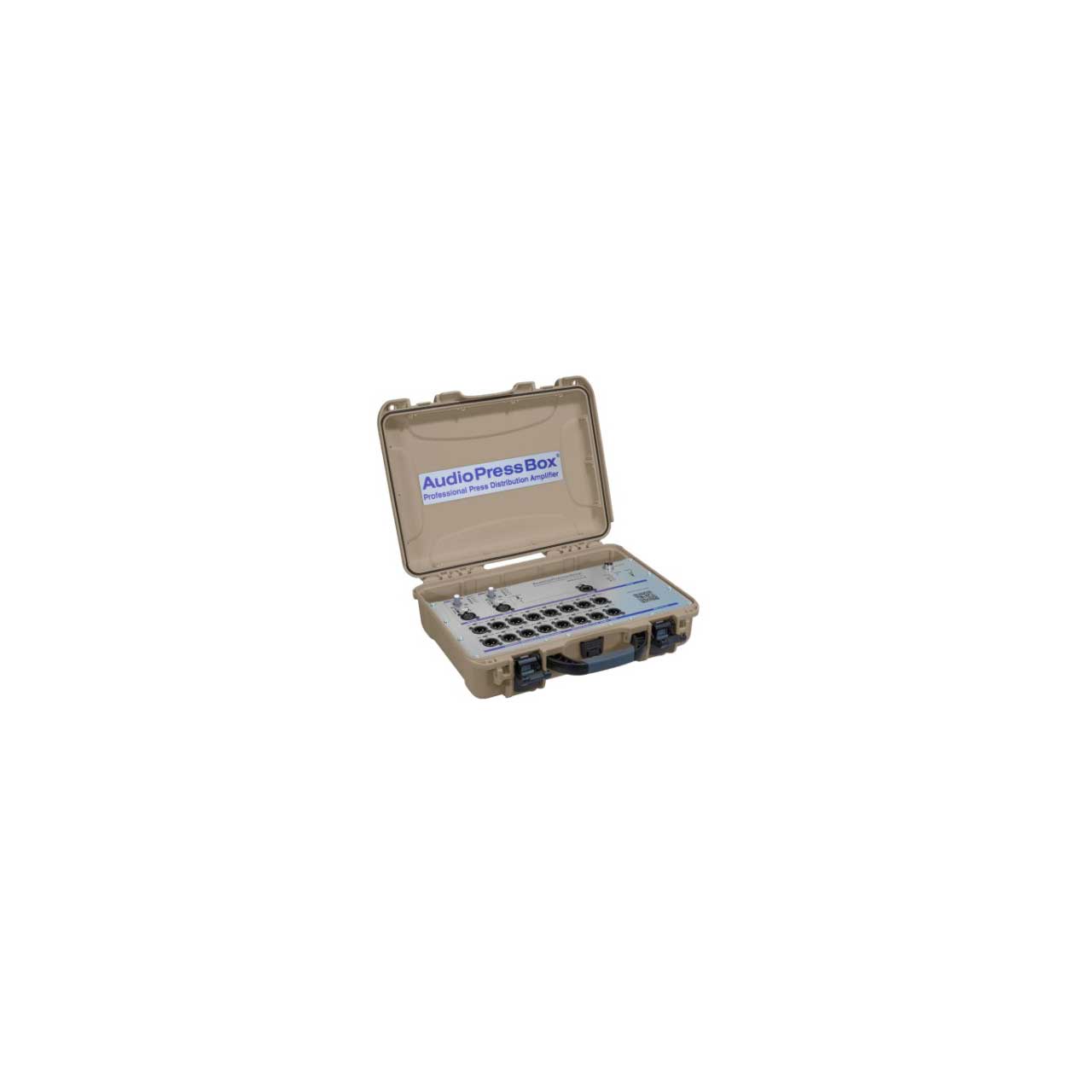

    Professional portable, active, Dante-enabled pressbox with 2 Line/Mic & 1 ch Dante inputs and 16 Line/Mic outputs. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable accu pack and heavy duty Nanuk case.

    • Features:

      • 2 MIC (phantom power) / LINE Inputs - balanced with gain control and 26dB PAD
      • 1 Channel DANTE Input - RJ45 ethercon, requires PoE
      • 16 balanced and individually transformer isolated outputs
      • Each Output is switchable between MIC or LINE output level
      • Built-in Compressor and Limiter for each Input
      • Li-Ion AccuPack with microprocessor controlled battery management
      • 10 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit
      • On unit printed QR code for online acces to manual, user guide and video guide

    • Specifications:

      • Type: 2 in 16 out
      • Groups: 1
      • Inputs: 2 Analog, 1 Dante
      • Input Connectors: Balanced, XLR
      • Input Gain:
        Mic: +22/+62 dB
        Line: -4/+36 dB
      • Max. Input Level:
        Mic: -10/-30dBu
        Line: +36/-4dBu
      • Phantom Voltage: 48V
      • Input Impedance:
        Mic: 2.4 kOhm
        Line: 3.5 kOhm
      • Number of Dante Channels: 1
      • PoE Requirement: Yes
      • Reference level: -18dBFS
      • Input connector: RJ45
      • Outputs: 16 Line/MIC level
      • Output Connectors: Balanced, XLR
      • Nominal Output Level: +6dBu
      • Maximum Output Level: +20dBu (no load) +14dBu (600kOhm)
      • Output Impedance:
        Mic: 220 Ohm
        Line: 600 Ohm
      • Transformer Isolated Outputs: Yes (each output)
      • SNR: 86dB
      • Frequency Response: 120Hz to 30kHz/-1dB
      • Controls:
        Input Section: 26dB PAD, Input gain, Phantom
        Output Section: Power switch, Output PAD
      • Indicators: Input section: Phantom power, Input level
      • Power Supply: 24V DC, 1A external adaptor
      • Battery: Li-Ion, 14,4 V 2200mAh
      • Battery Operation Time: up to 8 hrs
      • Dimensions (WxHxD): 14.6 x 4.72 x 11.81" (370 x 120 x 300mm)
      • Weight: 10.36Lbs (4.7kg)
      • Color: Tan
