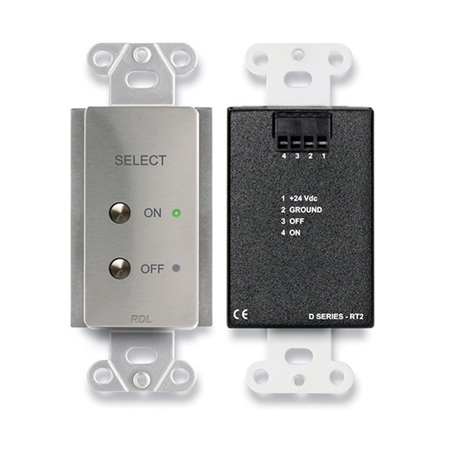

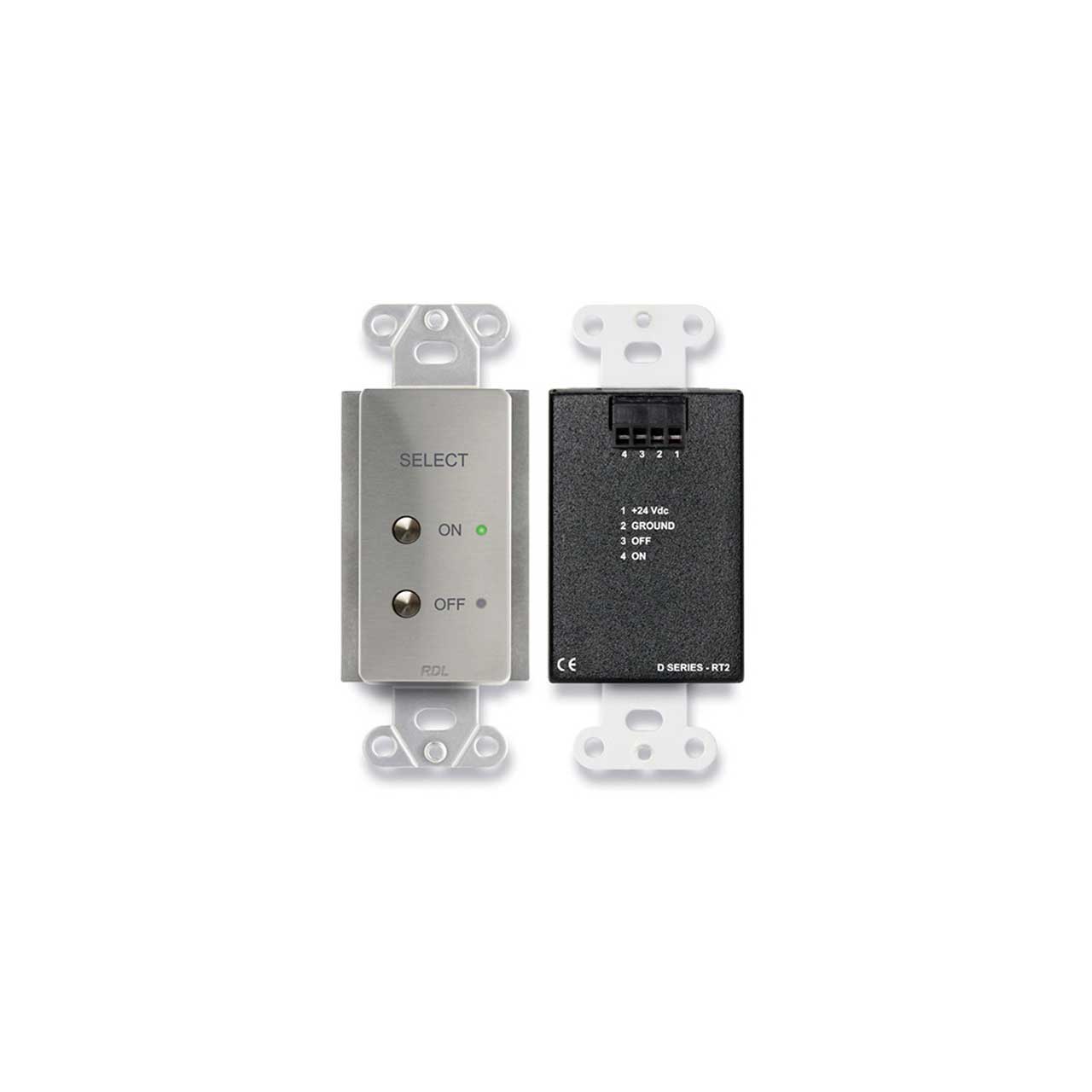

RDL DS-RT2 Remote Control Selector

ITEM #: RDL-DS-RT2 MFG #: DS-RT2

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$190.18

Our Price:

$142.63

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DS-RT2 - Overview

    The front panel of the DS-RT2 features two pushbuttons with two associated LEDs. Upon initial power-up, the OFF mode is selected. Touching the other button de-selects OFF and immediately selects ON. An LED adjacent to each button shows which mode is selected.In a typical installation, the DS-RT2 may be used to turn an audio or video source on or off. To turn on an audio source, the DS-RT2 may be connected to an RDL ST-SSR1 or ST-RX2 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. In each of the above examples, only one output terminal is needed for triggering, therefore a single shielded pair (3-conductor cable) is required for remote connection. For more complex switching networks, both outputs (ON and OFF) may be used. In an audio or video control installation, the DS-RT2 may be mounted adjacent to an RDL remote volume control, such as the D-RLC2, D-RLC3 or RLC10K.

    • Features:

      • Remote Selection of ON or OFF
      • Single-Button Selection for Each Function
      • Open-collector Switching
      • 3-wire or 4-wire Remote Wiring
      • Professional Aesthetic Appearance
      • Companion to other RDL® Remote Controls
      • LED Indication

    • Specifications:

      • Selectors (2): Momentary pushbuttons, (1 for ON,
      • 1 for OFF)
      • Indicators (2): Green/Red LEDs, (indicates status ON or OFF respectively)
      • Connections: Detachable terminal block;Power input; Separate open-collectorOutputs for ON and OFF (25 mA max.)Ambient Operating Environment: 0° C to 55° CPower Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
      • Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separatelyPackage Type: Cardboard Box
      • Package Dimensions: 3.625 x 4.625 x 2.125 in.
      • Shipping Weight: 0.45 lbs.
      • WEEE weight: 0.285 lbs.
      • Tariff code: 8517.62.0050

    • GTIN:

      0813721015648
