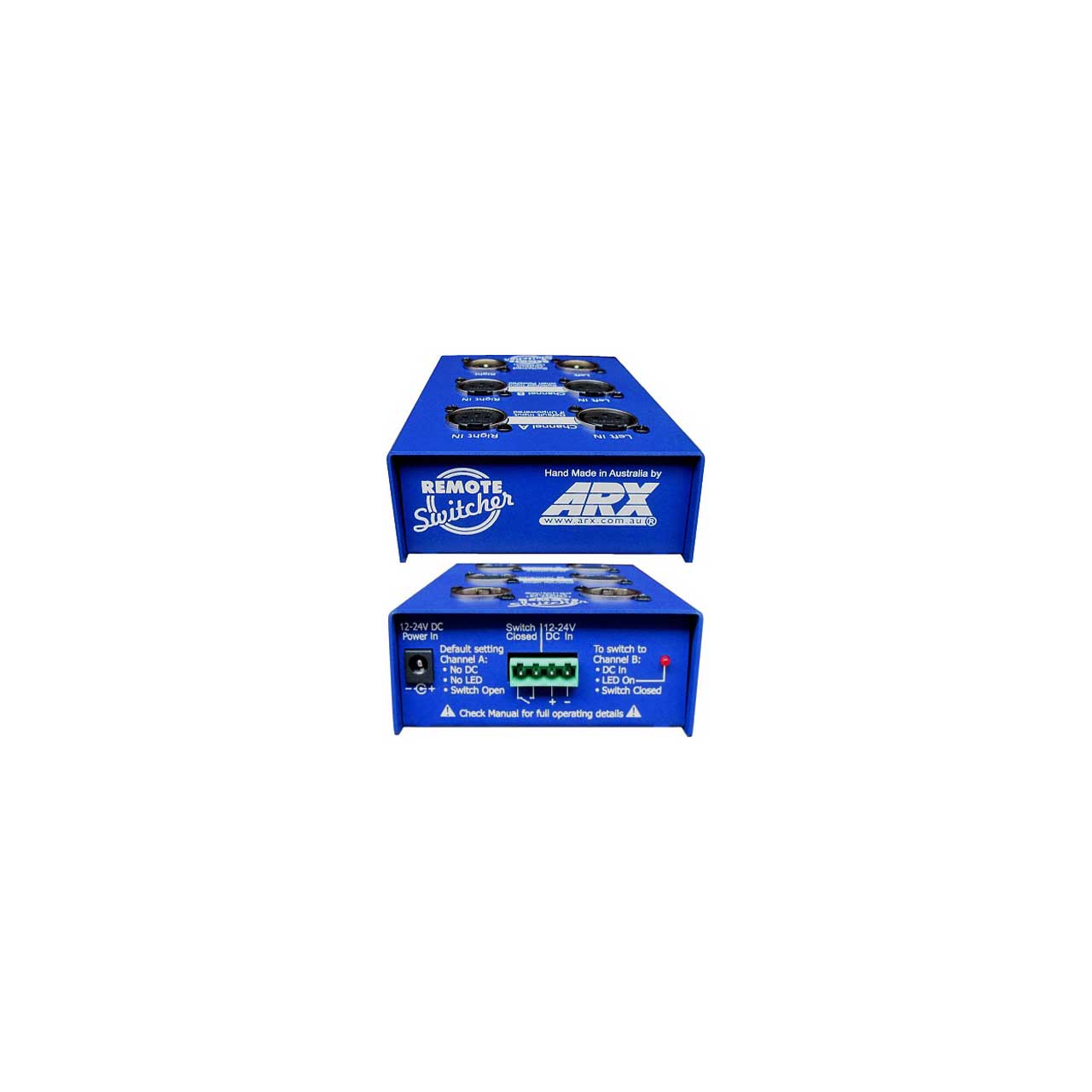

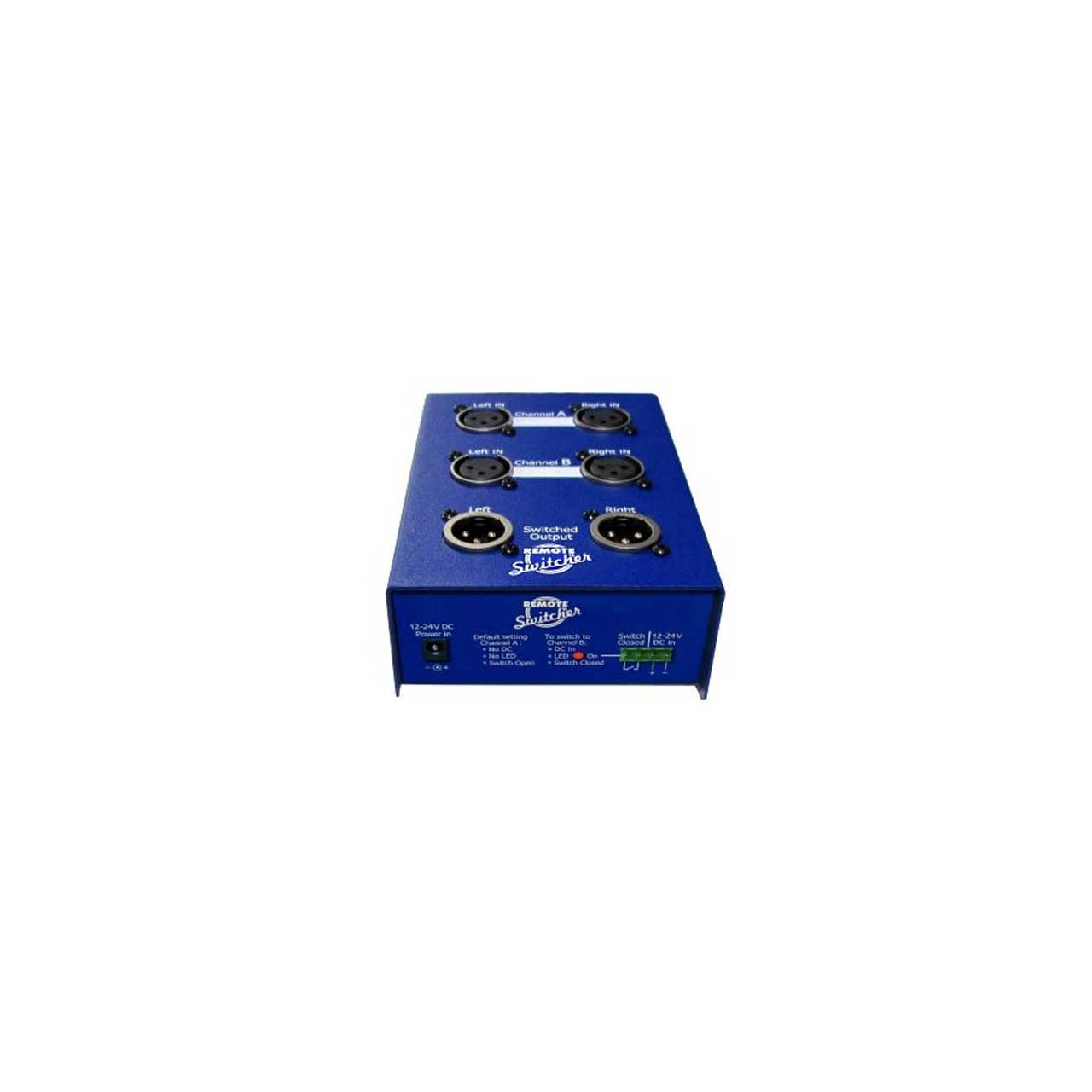

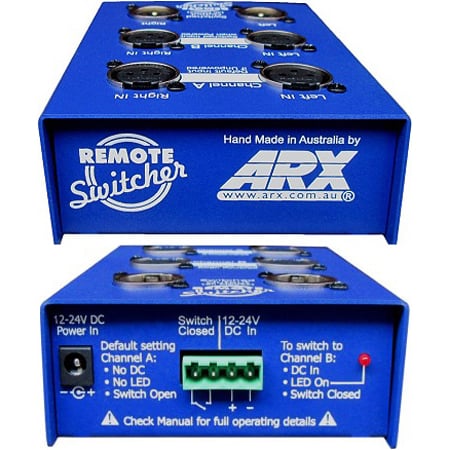

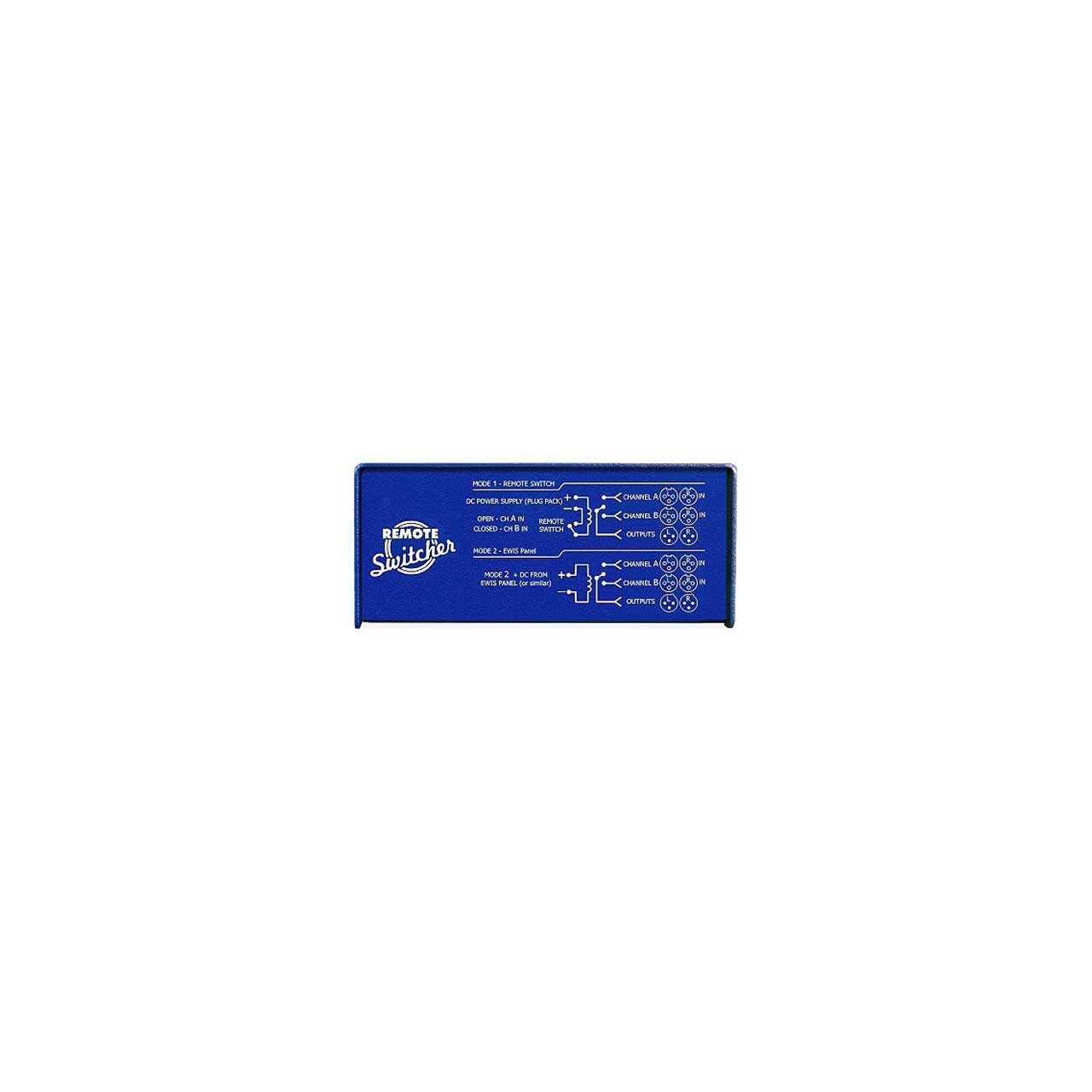

ARX RS-1 Remote Switcher - Stereo XLR Balanced Remote Controlled Switcher
  • ARX RS-1 Remote Switcher - Stereo XLR Balanced Remote Controlled Switcher
  • ARX RS-1 Remote Switcher - Stereo XLR Balanced Remote Controlled Switcher
  • ARX RS-1 Remote Switcher - Stereo XLR Balanced Remote Controlled Switcher
  • ARX RS-1 Remote Switcher - Stereo XLR Balanced Remote Controlled Switcher
  • ARX RS-1 Remote Switcher - Stereo XLR Balanced Remote Controlled Switcher

Questions? Ask a Markertek Expert:
800-522-2025 Email

ARX RS-1 Remote Switcher - Stereo XLR Balanced Remote Controlled Switcher

Manufacturer: ARX America

Item #: ARX-RS-1   •   MFG #: RS-1



List Price:$310.00
Our Price:$272.80

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The new Remote Switcher silently switches between two pairs of A or B female XLR inputs to a stereo pair of XLR male output connectors. ARX `SoftSwitch' technology achieves this with no loud bangs through the audio system when switching.

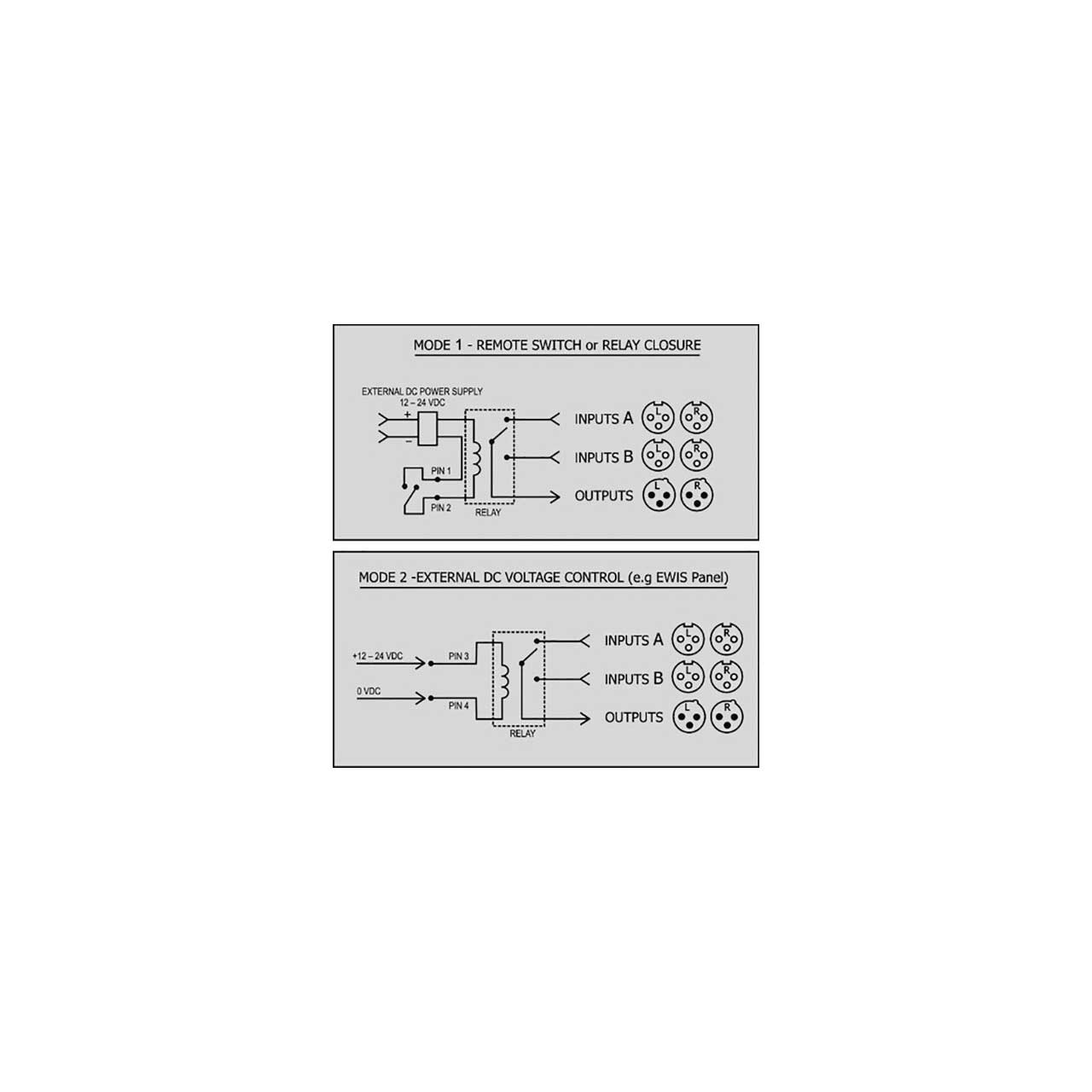

    Input Channel control can be selected in 2 ways:
    Mode 1 by remote switch / relay closure (using an external power pack / wall wart), or Mode 2 by 12 - 24VDC supplied from an EWIS panel or similiar.

    Typical applications include switching between Audio Systems, and EWIS emergency announcements. With no DC voltage applied, Input A, the default normal audio signal is selected. When +12 - 24VDC is applied to Pins 3 and 4 on the Dinkle type connector, then Input B, carrying Emergency announcements, alarm signal etc is selected.

    Power supply not included.


    • Specifications

      • Frequency Response: DC to Daylight ± 0.0dB
      • Power Requirements: None
      • Input Connectors: Female XLR, Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 - Cold.
      • Output Connectors: Male XLR, Pin 1 Audio Ground, Pin 2 + Hot, Pin 3 - Cold.
      • Remote Switch and External Input: 4 Pin Dinkle type socket, 5mm pin spacing. Dinkle Connector is supplied with each unit
      • Pin 1 and 2 Remote Switch - Open Input = Channel A selected,
      • Closed Input = Channel B selected.
      • Pin 3 and 4 Remote DC control - Pin 3 +12 - 24VDC Pin 4 0VDC / Gnd
      • Construction: All-steel powder coated chassis, fibrerglass PCB
