RDL DS-TPA1A 3.5 W Audio Power Amplifier

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

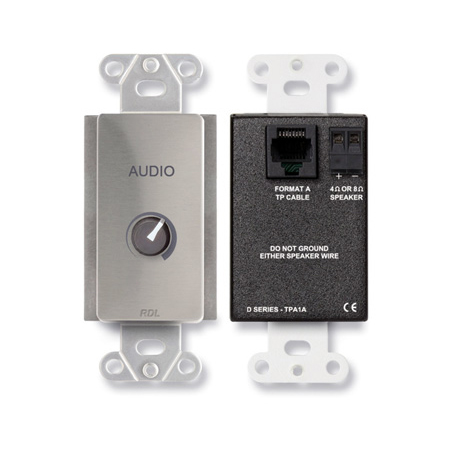

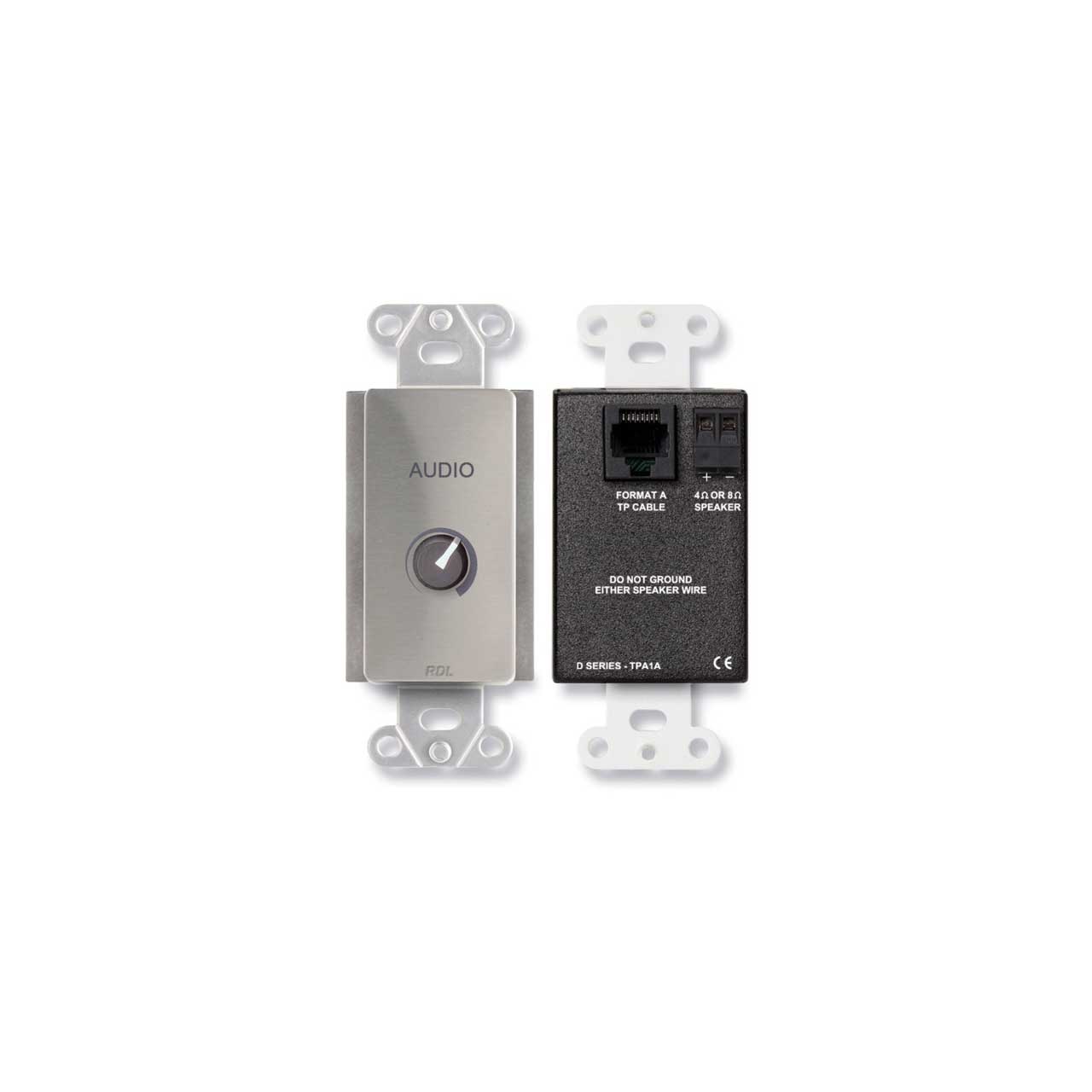

    RDL DS-TPA1A 3.5 W Audio Power Amplifier

    Manufacturer: Radio Design Labs

    Item #: RDL-DS-TPA1A   •   MFG #: DS-TPA1A



    List Price:$210.94
    Our Price:$144.10

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      The -TPA1A modules are two pair audio amplifier modules compatible with RDL Format A twisted pair products. Each -TPA1A receives stereo audio and 24 Vdc power through a rear-panel RJ45 jack. The left and right audio signals received on pairs B and C of the twisted pair cable are summed to mono and amplified. The amplified output level is set by an internal VCA which is controlled by a front-panel volume control. The VCA attenuator provides years of scratch-free gain adjustment.The -TPA1A circuits are all designed for low power consumption. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. When the user reduces the audio level to minimum, the class D output stage is switched off. This sleep mode remains active until the user turns up the output level.The output drives either a 4 Ohm or 8 Ohm speaker. The speaker cable connects to the module using a detachable terminal block.The front panel does not include any illuminated indicators, making the -TPA1A ideally suited to installation in dark rooms or areas. Installation is simple and quick, requiring only the connection of the speaker leads and the twisted pair RJ45.The -TPA1A may be fed and powered from any RDL Format-A sender, and is ideal in hospitality installations fed from a sender connected to a TV monitor (for example: FP-TPS4A Audio Sender from TV with fixed audio output level).Use the -TPA1A wherever a single speaker user-adjustable wall mounted amplifier is needed. Combine the amplifier with other RDL Format-A products for a cost-effective, high-performance audio system.


      • Features

        • 3.5 Watt RMS Audio Amplifier into 8 Ohms
        • 6.5 Watt RMS Audio Amplifier into 4 Ohms
        • Output Drives 4 or 8 Ohm Speaker
        • Setting Level to Minimum Activates Energy-Saving Sleep Mode
        • High-Efficiency Class D Operation
        • VCA Level Adjustment for Scratch-Free Long Life
        • Input and Power Connection on RJ45
        • Connects to Format-A Sender using Twisted-Pair Cable
        • Powered from RDL Twisted Pair Format-A Sender
        • Speaker Output Connection on Detachable Terminal Block
        • Ultra-Compact All Metal Construction
        • Thermal and Short-Circuit Protection

      • Specifications

        • Input: RDL Format-AInput Connector: RJ45
        • Gain Adjustment: Single turn audio taper, VCA attenuator
        • Frequency Response: 50 Hz to 20 kHz (± 1.5 dB)
        • THD+N: < 0.1% (@ 1 kHz, 1 W)
        • Noise: <-70 dB (below 1 W RMS)
        • CMRR: > 60 dB (50 Hz to 120 Hz)
        • Output Power: 3.5 W RMS (max., into 8 Ohms); 6.5 W RMS (max., into 4 Ohms)
        • Sleep ModePower Consumption: < 0.3 W
        • Sleep Mode Enable: Active at audio gain <-60 dBAmbient Operating Environment: 0° C to 40° C Maximum; 20° C RecommendedPower Consumption: 45 mA (idle), 95 mA (1 W into 8 Ohms), 150 mA (1 W into 4 Ohms), 215 mA (3.5 W into 8 Ohms)Dimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
        • Package Type: Cardboard Box
        • Package Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: 0.41 lbs.
