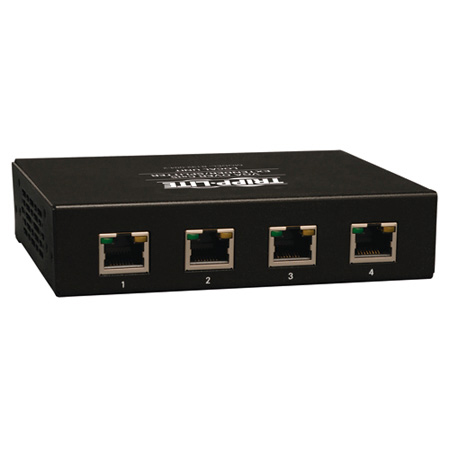

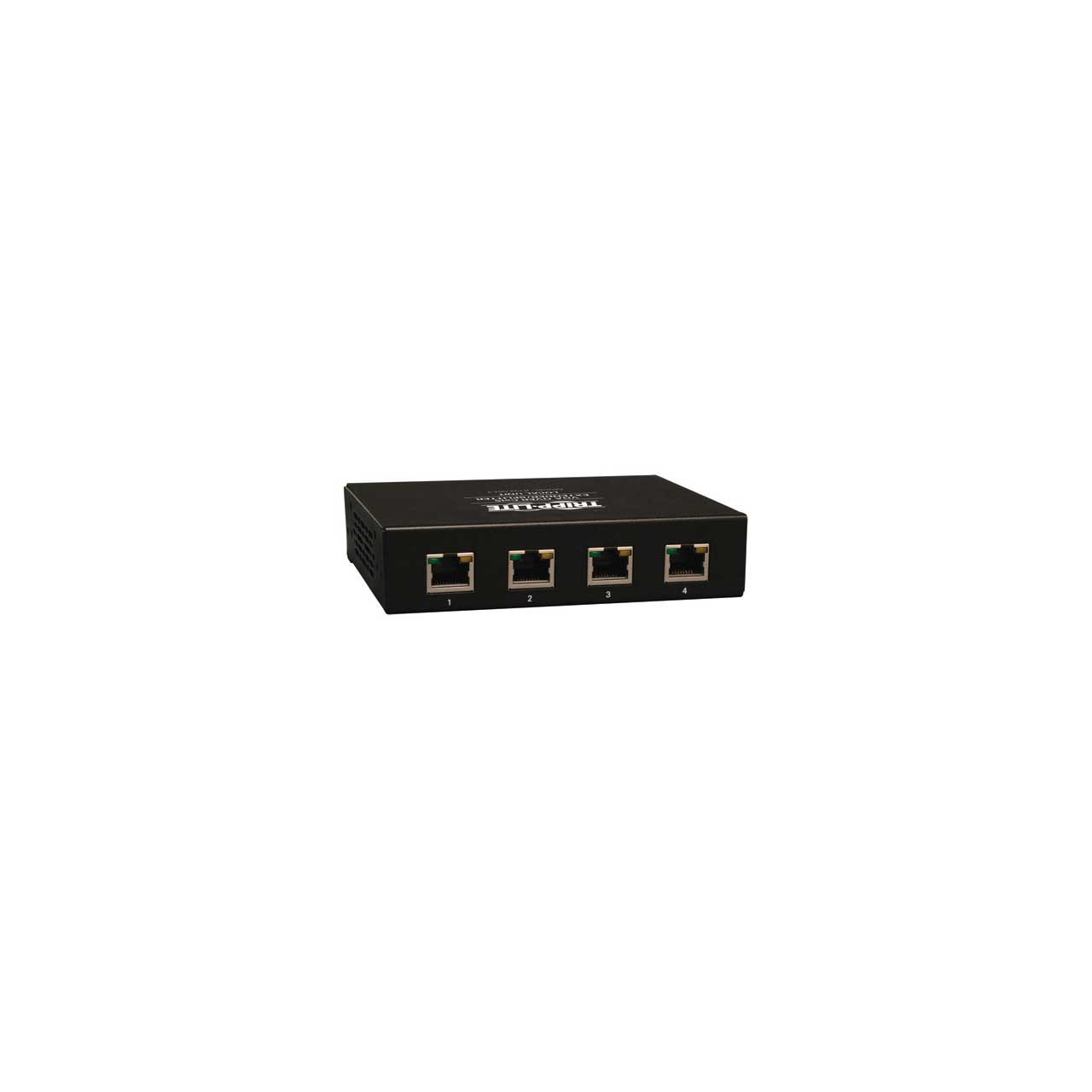

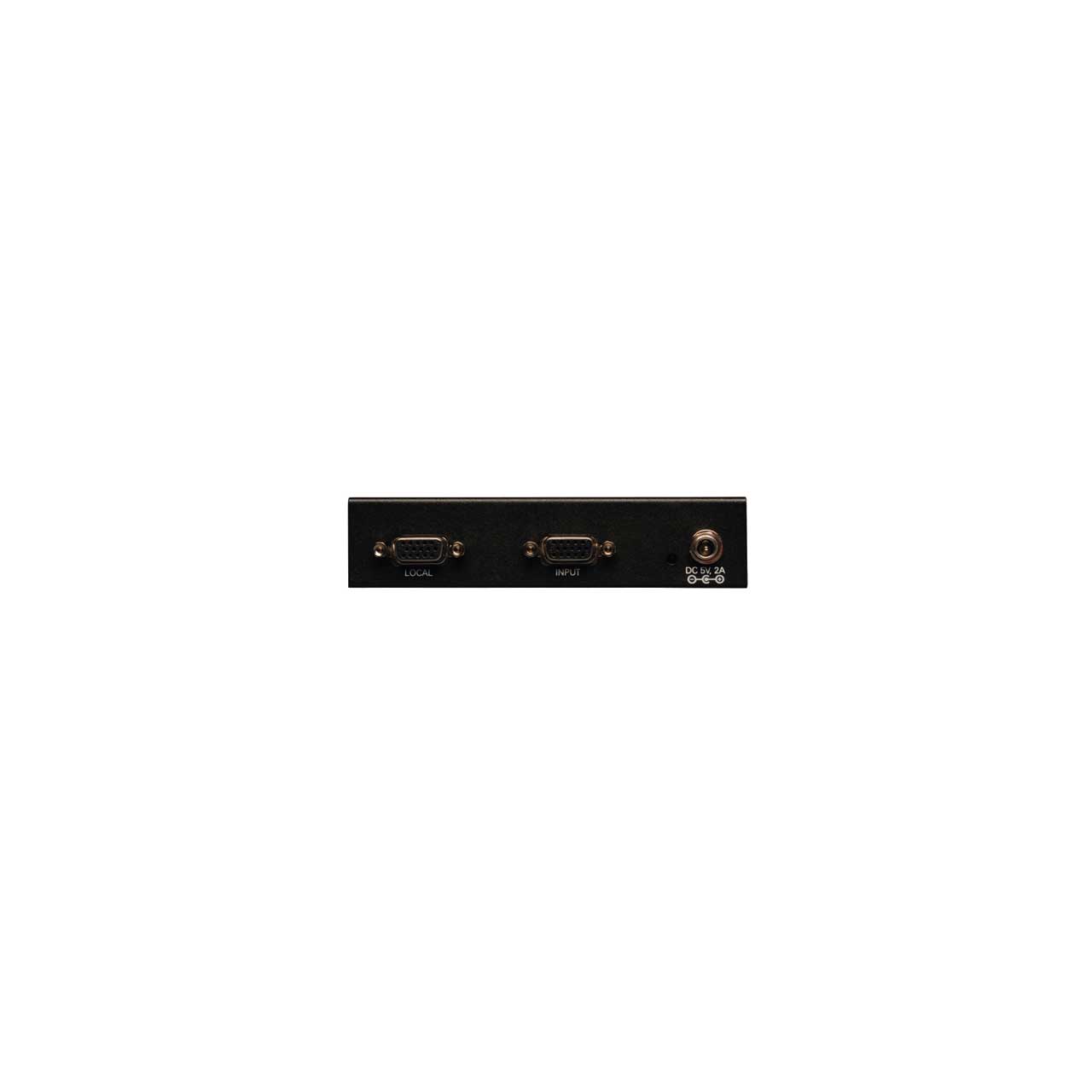

Tripp Lite B132-004-2 4-Port VGA over Cat5 Extender Splitter Transmitter w/EDID
  • Tripp Lite B132-004-2 4-Port VGA over Cat5 Extender Splitter Transmitter w/EDID
  • Tripp Lite B132-004-2 4-Port VGA over Cat5 Extender Splitter Transmitter w/EDID
  • Tripp Lite B132-004-2 4-Port VGA over Cat5 Extender Splitter Transmitter w/EDID

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite B132-004-2 4-Port VGA over Cat5 Extender Splitter Transmitter w/EDID

Manufacturer: Tripp Lite

Item #: TRL-B132-004-2   •   MFG #: B132-004-2



List Price:$192.00
Our Price:$128.49

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    Required Accessories

    Tripp Lite's B132-004-2 allows you to split a single VGA signal into 5 (1 local, 4 remote). Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004-2 units together. Along with a B132-100-1 or B132-100-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).

    The range and number of monitors can be further expanded by adding B132-110 repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.

    For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Up to three B132-004-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.


    • Features

      • Splits a single VGA signal into 5 (1 local, 4 remote)
      • Increase the number of displays to up to 25 (1 local, 24 remote) by daisychaining up to six B132-004-2 units together
      • A B132-100-1 or B132-100-WP-1 remote receiver unit is required for each connected monitor
      • Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
      • EDID copy feature ensures optimal display compatibility
      • The range and number of monitors can be further expanded by adding B132-110 repeater units
      • Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location
      • A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
      • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
      • Includes mounting hardwarethat allows unit to be wallmounted, rackmounted or pole mounted.
      • Up to three B132-004-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket
      • Ideal for digital signage situations, such as retail, schools, churches, etc.
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications

      • Display Style: Splitter
      • Model Type: VGA
      • Cable Types: CAT5/CAT5E
      • Connector A: HD15 (FEMALE)
      • Connector B: RJ45 (FEMALE) (X4)

    • Item Includes

      • 4 Port Extender/Splitter local (Transmitter) unit
      • 1 ft. VGA daisychain cable
      • Mounting hardware
      • External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 12.6V, 3A)
      • Owner's Manual

    • Warranty

      • 1-year limited warranty
