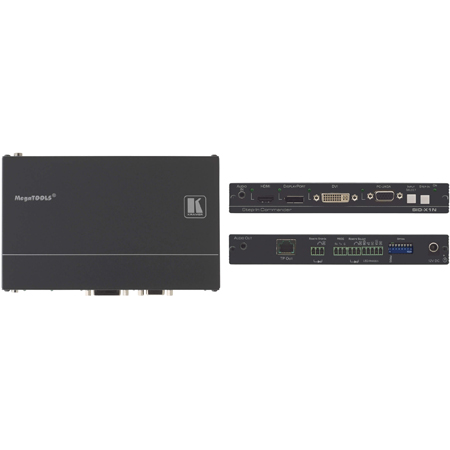

Kramer SID-X1N 4 Input DisplayPort/HDMI/ VGA & DVI Auto Switcher over DGKat

SID-X1N - Overview

SID-X1N - Overview

Local Step-in Input Select

• Features:

  • Cable - Requires STP (shielded twisted pair) cable. For optimum range and performance, use shielded Kramer CAT 6 or CAT 7 cables.
  • Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphics channel).
  • Compatible Switcher - VP-81SIDN.
  • HDTV Compatible.
  • HDCP Compliant. - Works with sources that support HDCP repeater mode.
  • HDMI Support - x.v.Color™ and 3D.
  • EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Data Equalization and Reclocking.
  • Input Signal Detection - Based on video clock presence.
  • Automatic Input Selection - Based on manual selection or last connected input.
  • Automatic Analog Audio Detection and Embedding.
  • Local Balanced Audio De-embedding.
  • Support for Digital Audio Formats.
  • Lockable EDID.
  • DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  • Power Connect™ System - A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other.
  • Local Step-In Switching - Button & contact closure.
  • Power Supply - Requires independent power supply.


• Specifications:

  • INPUTS
  • 1 HDMI on an HDMI connector, 1 DP on a DisplayPort connector, 1 DVI-D on a DVI-I connector
  • 1 VGA on a 15-pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack


  • OUTPUTS
  • 1 twisted pair on an RJ-45, 1 unbalanced stereo audio in a 3.5mm mini jack


  • PORTS
  • 1 RS-232 3-pin terminal block for programming


  • CONTROLS
  • Front panel buttons, remote step-in switch, remote input selection switches


  • ANALOG AUDIO INPUT
  • Maximum level - 3Vpp


  • REMOTE LED IMPEDANCE
  • 5V, 300Ω approx


  • STANDARDS
  • HDMI with x.v.Color™ and 3D
  • HDCP: works with sources that support HDCP repeater mode


  • MAXIMUM DATA RATE
  • 4.95Gbps (1.65Gb per graphics channel)


  • MAXIMUM STEP-IN DISTANCE
  • 50m (164ft) up to 1080p @60Hz @24bpp


  • POWER CONSUMPTION
  • 12V DC, 1.1A


  • COMPLIANCE STANDARDS
  • CE, UL


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • COOLING
  • Convection, vents


  • ENCLOSURE TYPE
  • Aluminum


• Item Includes:

  • SID-X1N Switcher
  • Power Adapter


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063064846
