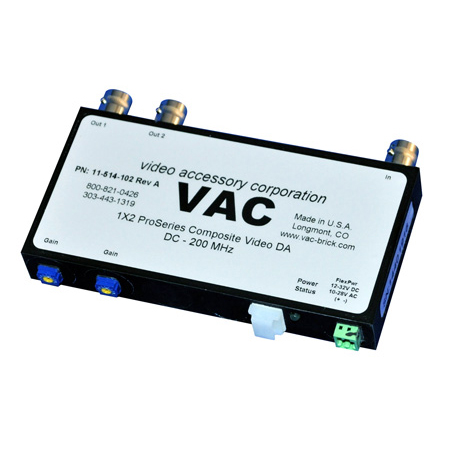

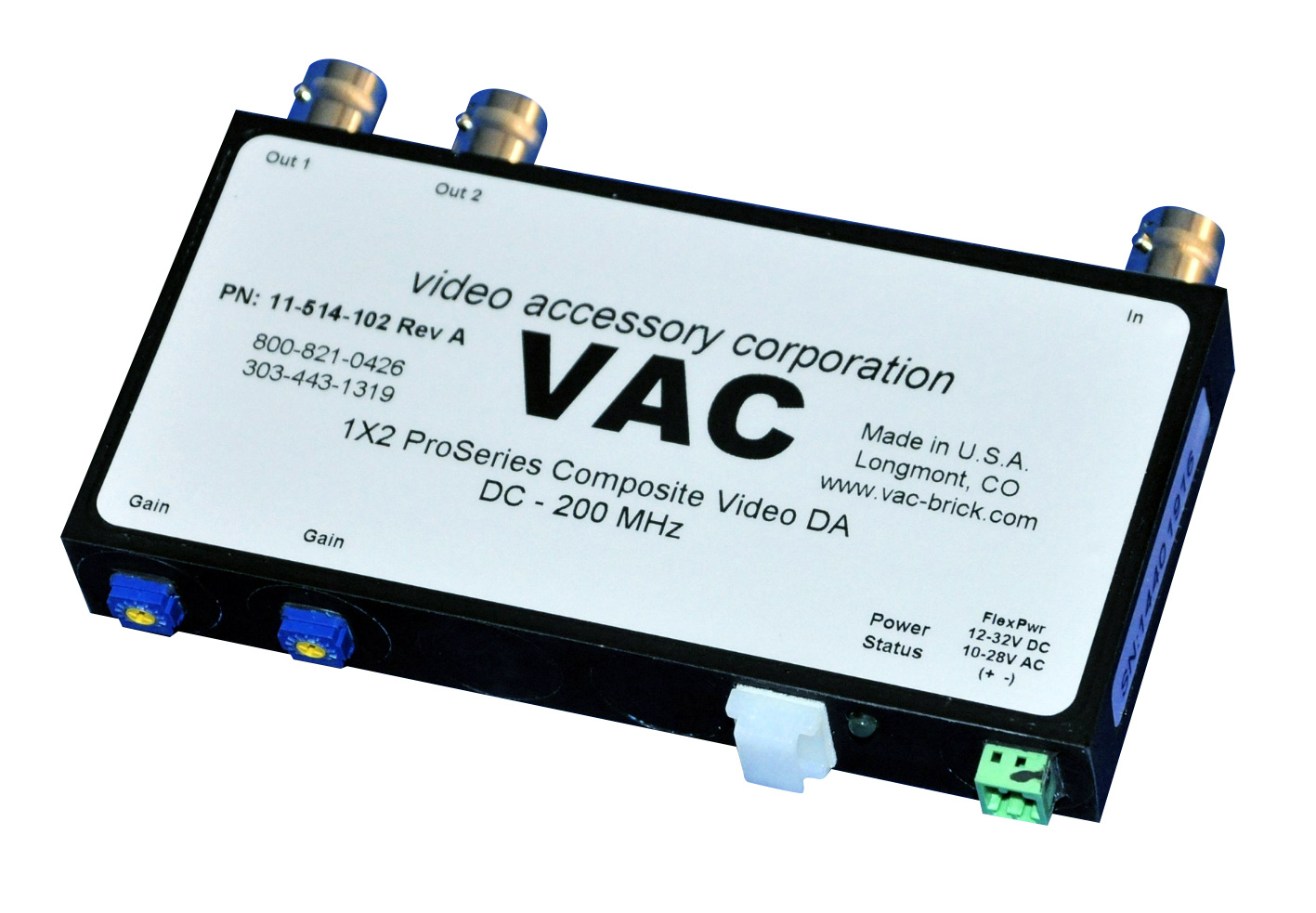

VAC 11-514-102 1X2 Composite Video DA - Standard Input - Individual Variable Gain

ITEM #: VAC-11-514-102 MFG #: 11-514-102

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the VAC-11-514-102

11-514-102 - Overview

The 11-514-102 is a one input to two output composite video distribution amplifier with a single ended input (75 Ohm termination). This unit has a gain pot for each output. Unused outputs do not need to be terminated with 75 Ohms. All of the video connections are BNC connectors. This unit is intended to be used with NTSC or PAL video signals.

  • Features:

    • Analog video distribution amplifier (DA)
    • NTSC or PAL formats
    • 1 input, 2 output configuration
    • Individual gain for each output
    • Standard single ended 75 Ohm terminated input
    • BNC connectors for video signals
    • Sealed epoxy package
    • FlexPwr power supply (10-28 VAC, 10-32 VDC)
    • 2 pin 2.5mm terminal block power connector
    • 2.2" X 4.4" X 0.65" size (not including connectors)
    • Mounted using two 6-32 threaded inserts


  • Specifications:

    • Group ProSeries
    • # Channels 1
    • Inputs/Channel 1
    • Outputs/Channel 2
    • Input 1 Signal Type Composite Video
    • Input 1 Coupling DC
    • Input Configuration 1 Standard 75 Ohms
    • Gain Configuration Individual
    • Input 1 Connector BNC
    • Output 1 Signal Format Composite Video
    • Output 1 Coupling DC
    • Output 1 Connectors BNC
    • Power Connector 2 Pin 2.5mm TB
    • Input Voltage 1 10-28 VAC
    • Input Voltage 2 10-32 VDC
    • Height .65
    • Width 4.4
    • Depth 2.2
    • Weight Oz 6.2
    • High Operating Temp (C) 80
    • Power Bypass NO
    • Mounting Two 6-32 Inserts
