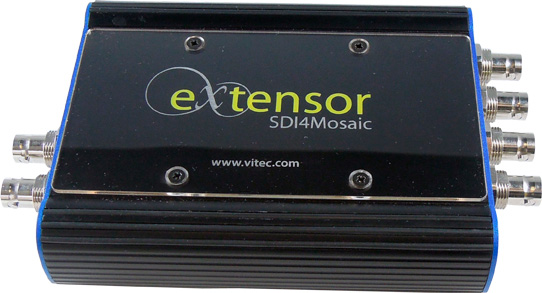

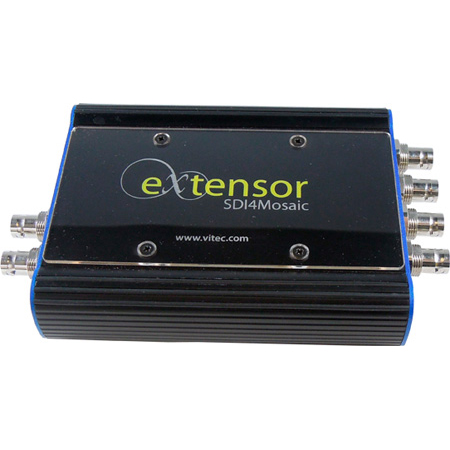

VITEC Extensor SDI4MOSAIC 4-Channel Multiviewer - Advanced Mosaic Generator
  • VITEC Extensor SDI4MOSAIC 4-Channel Multiviewer - Advanced Mosaic Generator
  • VITEC Extensor SDI4MOSAIC 4-Channel Multiviewer - Advanced Mosaic Generator

Questions? Ask a Markertek Expert:
800-522-2025 Email

VITEC Extensor SDI4MOSAIC 4-Channel Multiviewer - Advanced Mosaic Generator

Manufacturer: VITEC Inc.

Item #: VIT-SDI4MOSAIC   •   MFG #: 13732



List Price:$995.00
Our Price:$889.79

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!

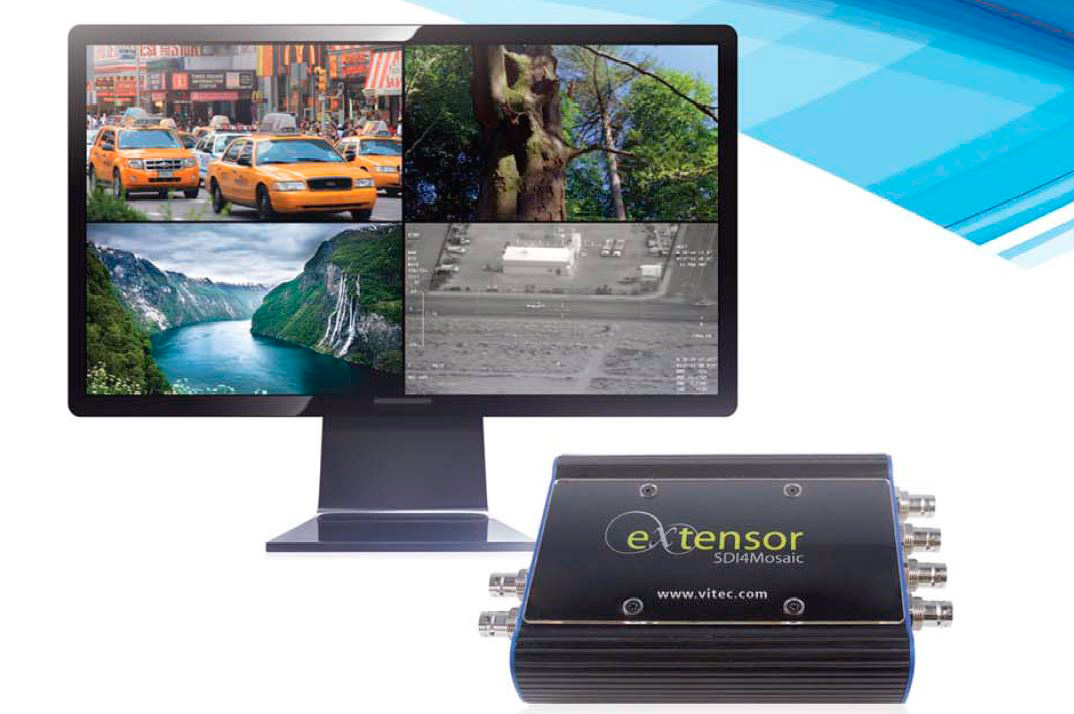

    SDI4Mosaic is the simplest way to connect up to 4 SDI feeds on a single mosaic display. It converts a 4K HD-SDI video source to a standard HDMI screen. SDI4Mosaic automatically creates a mosaic of up to four video channels and displays on compatible monitors. It allows the comparison of two video channels and displays them in various layouts. The OSD Status gives all status information directly super- imposed on the video output signal.


    • Features

      • The simplest way to connect up to 4 SDI feeds on a single mosaic display
      • Converts a 4K HD-SDI video source to a standard HDMI screen
      • Automatically creates a mosaic of up to four video channels and displays on compatible monitors
      • It allows the comparison of two video channels and displays them in various layouts
      • OSD Status gives all status information (ie: video signal detected, resolution and so on...) directly super-imposed on
      • the video output signal
      • Power supply provided with a lockable connector and country adaptors
      • Easy to configure with the mini-switch on the side of the converter

    • Specifications

      • Video Inputs / Outputs
      • Inputs: 4 x SD/HD-SDI up to 3G - 4K Ready
      • Outputs:
      • 2 x SD/HD-SDI up to 3G (1080p) - downscaler available (1080p to 720p)
      • 1 x HDMI (V1.4) up to 4Kp30
      • Mosaic mode
      • 4 x HD-SDI (SD up to 1080p60) with different resolution / frame rate
      • 4K mode
      • 4 x HD-SDI to 1 x 4K Output through HDMI (Mosaic)
      • 1 x 4K Input to 1 x 4K Output through HDMI (Conversion)
      • 1 x 4K Input to 1 x HD (1080p) Output through HDMI & HD-SDI (Downscaling)
      • Frame rates supported
      • 4Kp at 24 / 25 / 29.97 / 30
      • 1080p at 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames by second
      • 1080i at 25 / 29.97 / 30 frames by second
      • 720p at 50 / 59.94 / 60 frames by second
      • PAL, NTSC

    • Item Includes

      • power supply
      • user manual
