West Penn 253272B 22/10 Stranded Plenum Communication Cable - 1000 Ft.
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    West Penn 253272B 22/10 Stranded Plenum Communication Cable - 1000 Ft.

    Manufacturer: West Penn Wire Corp

    Item #: WP-253272B-1000   •   MFG #: 253272B


    List Price:$422.95
    Our Price:$339.95

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.

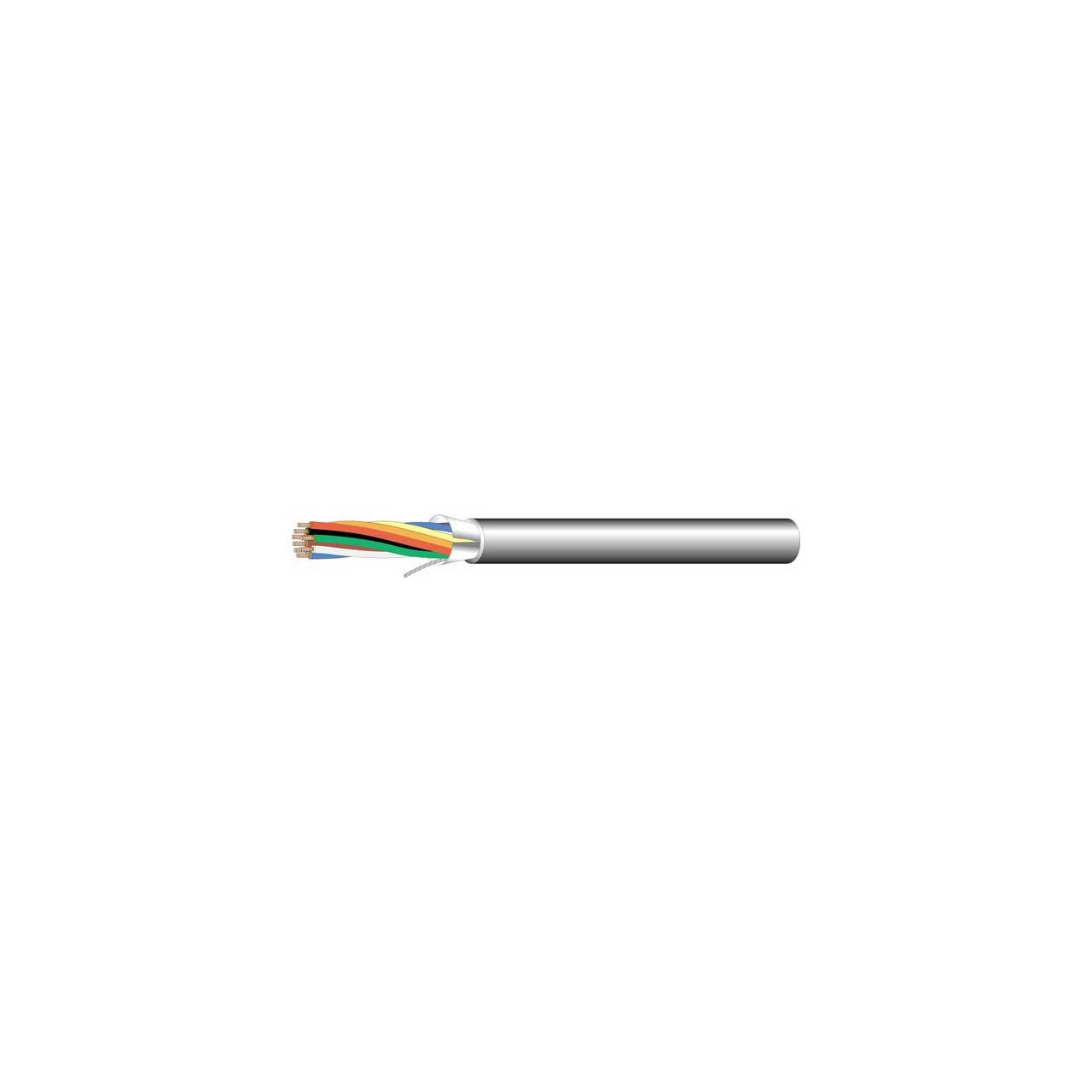

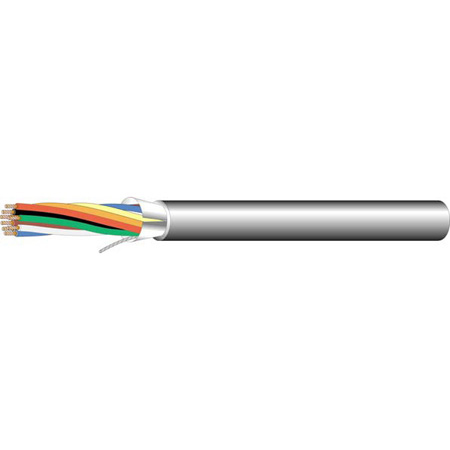

    22/10 Stranded bare copper conductors, shielded with an overall jacket.

    APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music)

    • Specifications

      • Construction Parameters:
      • Conductor 22 AWG Bare Copper
      • Stranding 7x30
      • Insulation Material Flex Plenum PVC
      • Insulation Thickness 0.007'' Nom.
      • Number of Conductors 10
      • Shield 100% Aluminum Polyester Foil
      • Drain Stranded Tinned Copper
      • Jacket Material Flex Plenum PVC
      • Jacket Thickness 0.015'' Nom.
      • Overall Cable Diameter 0.213'' Nom.
      • Approximate Cable Weight 44 Lbs/1M' Nom.
      • Flame Rating NFPA 262 Flame Test
        Electrical & Environmental Properties:
      • Temperature Rating -10°C To +60°C
      • Operating Voltage 300 V RMS
      • Max.Capacitance Between Conductors @ 1 KHz 55 pf/ft Nom.
      • Capacitance Between Conductors to Shield @ 1 KHz 99 pf/ft Nom.
      • DC Resistance per Conductor @ 20deg C 17 Ohms/1M' Nom.
      • Insulation Colors Black, Red, White, Green, Brown, Blue, Orange, Yellow,
      • Purple, Gray
      • Jacket Color Gray
      • RoHS Compliant Yes
        Mechanical Properties:
      • Max. Recommended Pull Tension 105 lbs
      • Min. Bend Radius (Install) 2.2"
