West Penn D434 12 Pair 22 AWG Stranded Tinned Copper Individually Shielded - 500 Foot Roll
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

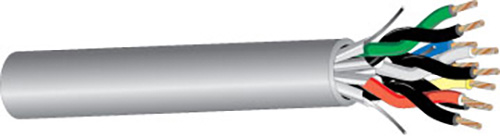

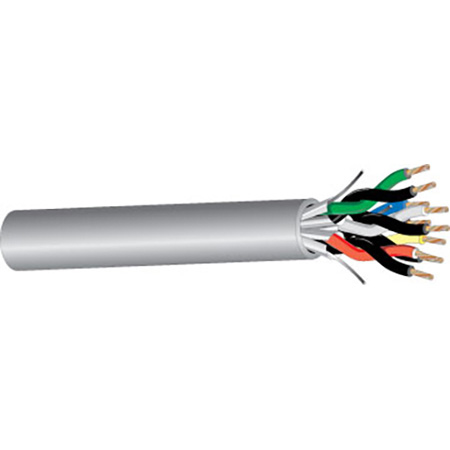

    West Penn D434 12 Pair 22 AWG Stranded Tinned Copper Individually Shielded - 500 Foot Roll

    Manufacturer: West Penn Wire Corp

    Item #: WP-D434-500   •   MFG #: WP-D434-500







    22 AWG.- 12 PAIR Stranded tinned copper conductors, individually shielded with an overall jacket.
    APPLICATION: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.

    • Specifications

      • Conductor: 22 AWG Tinned Copper
      • Stranding: 7x30
      • Insulation Material: Polyolefin
      • Insulation Thickness: 0.006'' Nom.
      • Number of Conductors: 24 (12 Pair)
      • Shield: Each Pair 100% Aluminum Foil
      • Drain: Stranded Tinned Copper
      • Jacket Material: PVC
      • Jacket Thickness: 0.034'' Nom.
      • Overall Cable Diameter: 0.420'' Nom.
      • Approximate Cable Weight: 128 Lbs/1M' Nom.
      • Flame Rating: UL 1685

      • Temperature Rating: -20°C To +60°C
      • Operating Voltage: 300 V RMS
      • Max.Capacitance Between Conductors @ 1 KHz: 34 pf/ft Nom.
      • Capacitance Between Conductors to Shield @ 1 KHz: 67 pf/ft Nom.
      • DC Resistance per Conductor @ 20deg C: 17 Ohms/1M' Nom.
      • Insulation Colors:
      • Black/Red, Black/White, Black/Green,
      • Black/Blue, Black/Yellow, Black/Brown,
      • Black/Orange, Red/White,
      • Red/Green, Red/Blue, Red/Yellow,
      • Red/Brown-Brown
      • Jacket Color: Gray
      • RoHS Compliant: Y

      • Max. Recommended Pull Tension: 236 Lbs.
      • Min. Bend Radius (Install): 4.1"
