Kings 0345-E00-C7101N 75 Ohm 2-Piece DIN 1.0/2.3 Connector for Belden 1505A - Each

ITEM #: 0345-E00-C7101N MFG #: 0345-E00-C7101N

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$9.61

Our Price:

$6.49

Availability: In Stock
iAvailability Description Popup


    0345-E00-C7101N - Overview

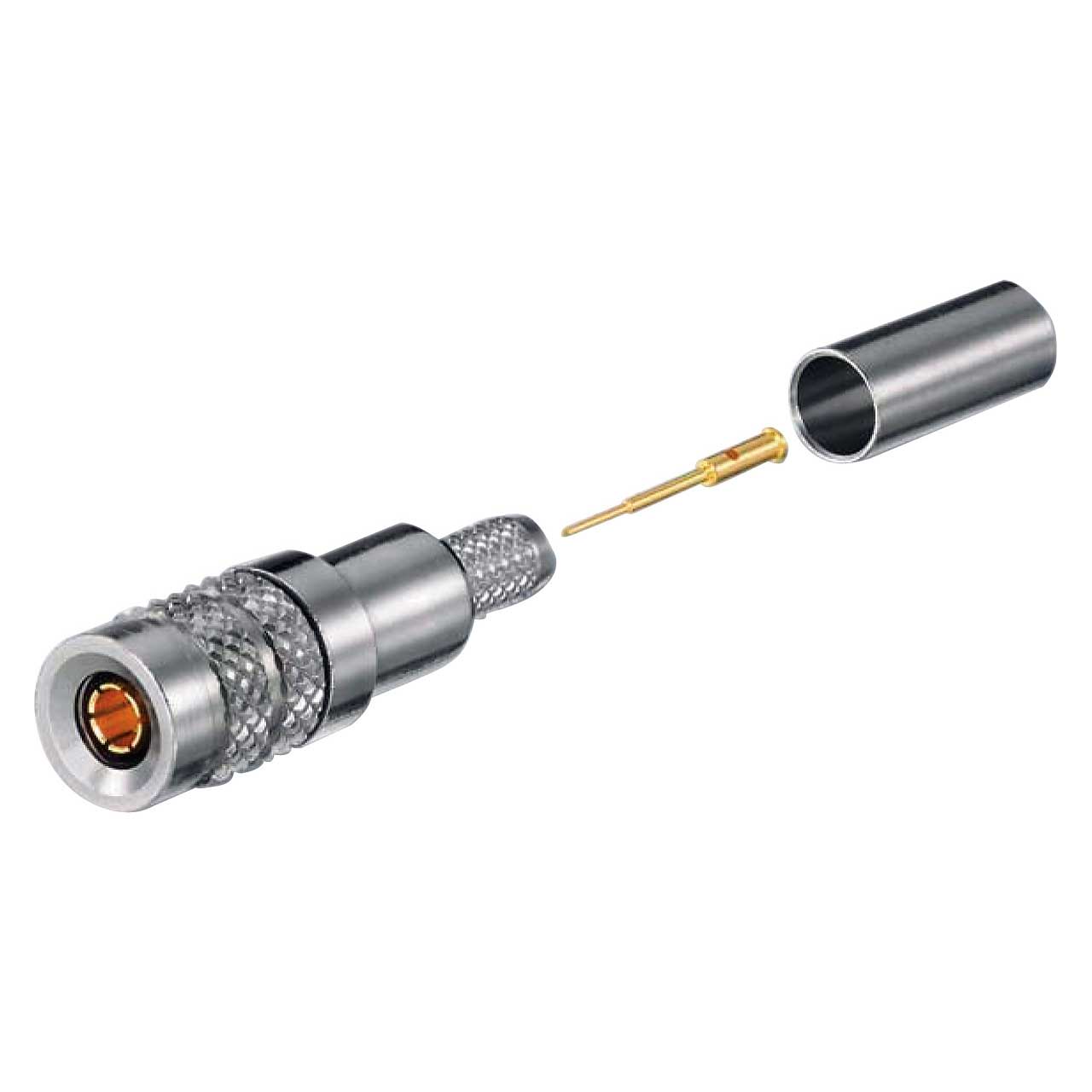

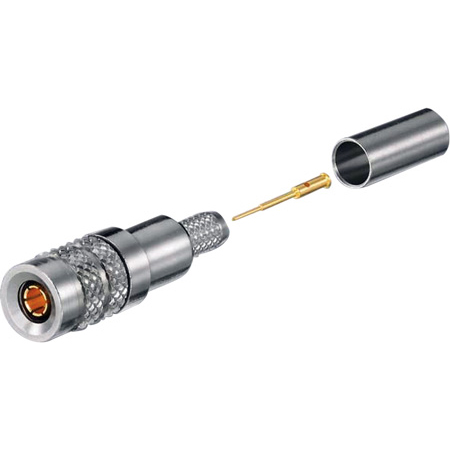

    The Kings brand 7101N is a DIN 1.0/2.3 RF coaxial connector for Belden 1505A, Gepco VPM2000, or equivalent. This addition to our connector offering, with the Kings brand reputation for high quality and high reliability, will provide an exceptional product that features a quick connect Push/Pull coupling system for easy mating.

    The 7201N is the 2-Piece version which has a fixed center contact. The cable center conductor is inserted directly into the fixed contact and the braid is crimped on.

    These high performance connectors are available in 50 Ohm and 75 Ohm versions capable of operating up to 10 GHz and a mating life of 500 cycles. The compact design allows for dense packaging, ideally suited for applications where space is limited. This series complies with CCCE 22230, DIN 41626, and DIN 47297 specifications.
