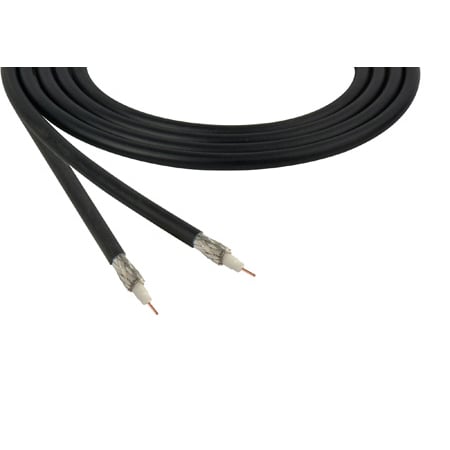

Belden 1855A CMR Rated 6G-SDI Mini-RG59 Digital Coax Video Cable 23 AWG - Black - 1000 Foot

ITEM #: BL-1855A-1000 MFG #: 1855A 0101000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,036.40

Our Price:

$479.00

Availability: In Stock
iAvailability Description Popup


    1855A 0101000 - Overview

    Belden 1855A is a 75 Ohm, 23 AWG Mini RG-59, 6G-SDI Precision Broadcast Video Coax Cable with a Solid Bare Copper Conductor, PE Insulation, Foil plus 95% Tinned Copper Braid Shield in a PVC Jacket that is CMR rated.

    Belden’s premium multi-channel 6G-SDI coax cable meets the SMPTE ST-2081 6G-SDI Standards to support 6 Gbps and maximum resolutions for 4K video & audio applications up to 30Hz. This cable supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2.

    Applications
    Analog and Digital Video
    6 Gb/s UHDTV
    HD-SDI 1080p
    Test Equipment
    Satellite Headend
    Telecom

    • Features:

      • Convenient Installation: Only one cable can be installed to send 10 Bit 4:2:2 4K at 30p or 24p & support 6 Gb/s of bandwidth for 6G-SDI
      • Durable Materials: The flexible cable sleeve provides abrasion resistance & its high quality connectors provide strain relief
      • High Quality Signal Transmission: Professional quality 4K, 75 ohm BNC connectors for proper 6G performance

    • Specifications:

      • RG Type Mini RG59
      • AWG: 23
      • Conductor Stranding: Solid
      • Conductor Material: Bare Copper
      • Conductor Nominal Diameter: 0.023 in
      • No. of Coax: 1
      • Overall Cable Diameter (Nominal) 0.159 in (4.04 mm)
      • Outer Jacket Material PVC - Polyvinyl Chloride
      • Outer Jacket Overall Diameter 0.159 in (4.04 mm)
      • Operating Temp Range: -30°C To +75°C
      • Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance
      • NEC / UL Compliance: CMR
      • CEC / C(UL) Compliance: CMG

    • Item Includes:

      • Belden 1855A Digital Coax Video Cable 23 AWG - Black - 1000 Foot

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825358503
