26DVS - Overview

2X26 1RU 75 Ohm Digital Video Patchbay (Straight Through)

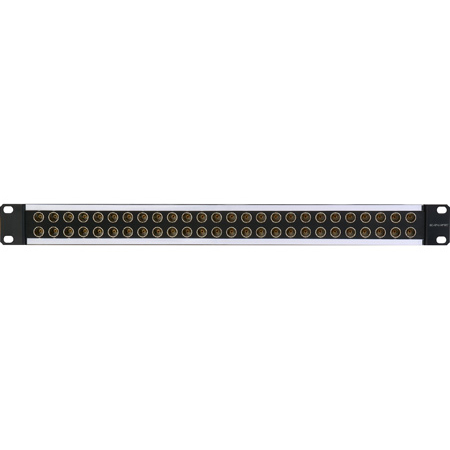

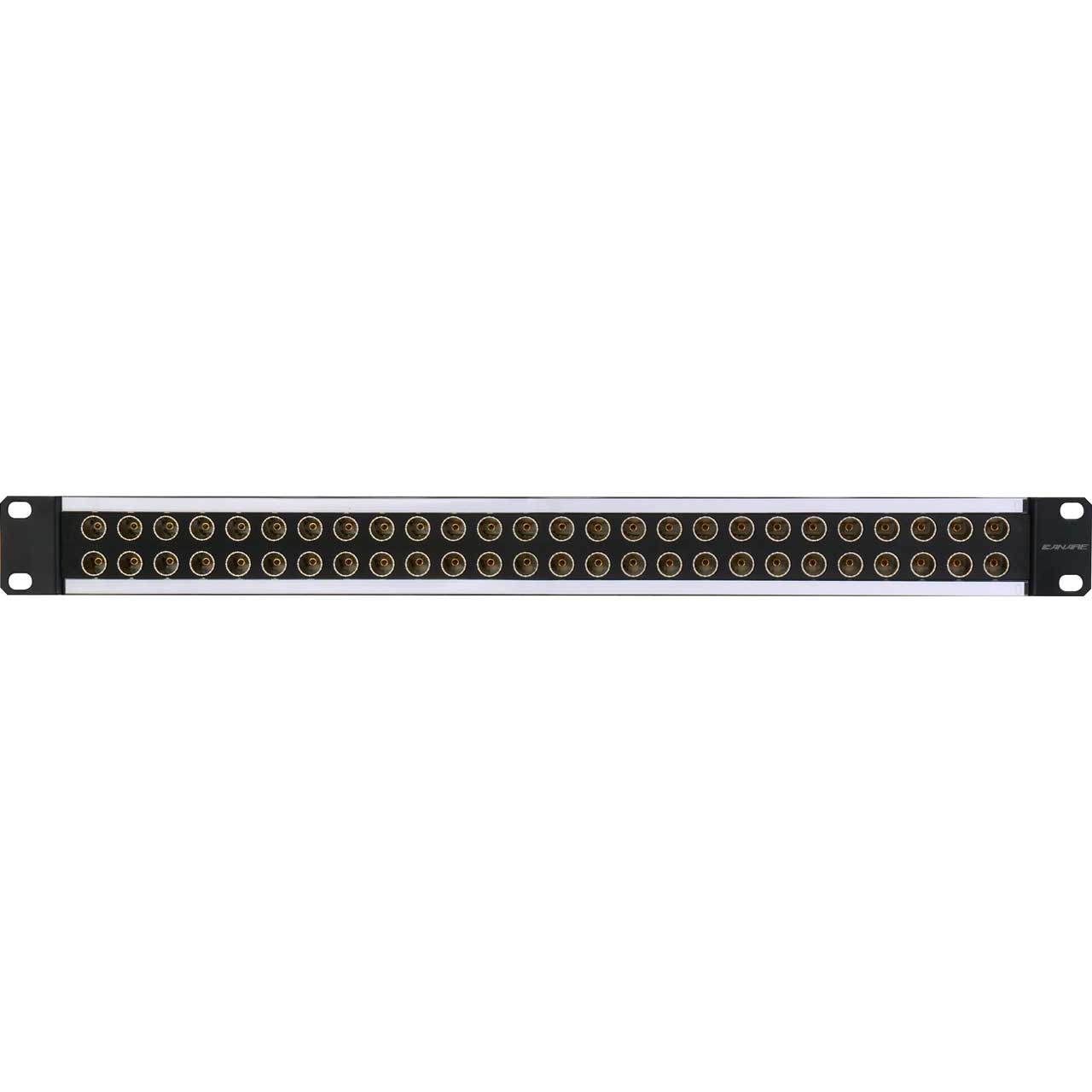

The Canare 26DVS is a 1-rack-unit (1RU), 2x26 channel 75-ohm digital video patchbay featuring a straight-through circuit design. It is loaded with 26 DVJB-S dual video jacks, providing 52 patch points optimized for HD-SDI, serial digital video, and NTSC analog signals up to 3.0 GHz.

Choose our 2x26 one rack unit (1RU), 2x26 two rack unit (2RU) or our ultra high density 6x26 four rack unit (4RU) Jack Panels. Perfect choice for Master Control, Headends, Edit Suites, small Production Studios, OB Vans or anywhere rack space is at a premium.

Applications include:
Broadcast television mobile units (OB vans)
Small production studios and edit suites
Satellite headends and broadband telecom setups
HDTV system upgrades
SMPTE 424M Compliant
Hi Definition Serial Digital Interface (HD-SDI)
Serial Digital Video
Digital Audio Patch (75 ohm)
HDTV Upgrades
NTSC Analog
Satellite Headends
OB Van
Broadband Telcom

  • Features:

    • Used to quickly change the path of select signals without dedicated switching equipment

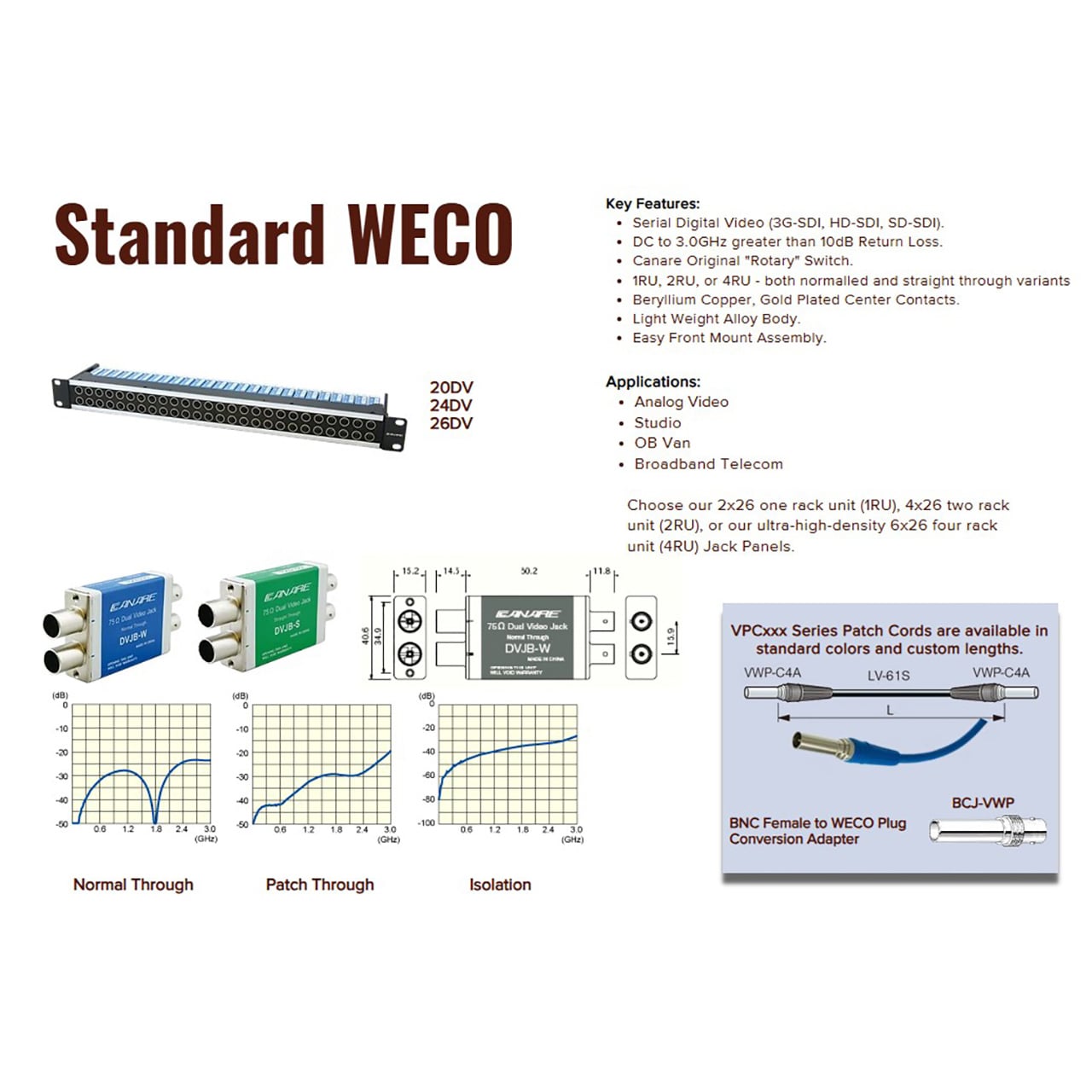

    • Loaded with 26 DVJB-S 75ohm dual video jacks and offers a Straight Through circuit
    • Compatible with HD-SDI, Serial Digital Video, and NTSC Analog
    • Offers bandwidth ranging from DC to 3.0GHz and a return loss of 20 dB
    • Ideal for use in OB vans and small production studios and for HDTV upgrades
    • Compact size (19" x 1.7" x 3.3"/483mm x 44mm x 85mm)
    • Easy front mount assembly
    • Suitable for satellite headends and broadband telecom cell sites
    • Equipped with Canare's proprietary rotary switch
    • 1RU lightweight alloy body with beryllium copper and gold-plated center contacts


  • Specifications:

    • Panel Size: 1RU
    • Jack: x26 (DVJB-S)
    • Configuration: 2 x 26
    • Patch Point: 52
    • Dimensions (WxHxD): 19" x 1.7" x 3.3" (483mm x 44mm x 85mm)


  • Applications

    :

    • SMPTE 424M Compliant
    • Hi Definition Serial Digital Interface (HD-SDI)
    • Serial Digital Video
    • Digital Audio Patch (75 ohm)
    • HDTV Upgrades
    • NTSC Analog
    • Satellite Headends
    • OB Van
    • Broadband Telcom
