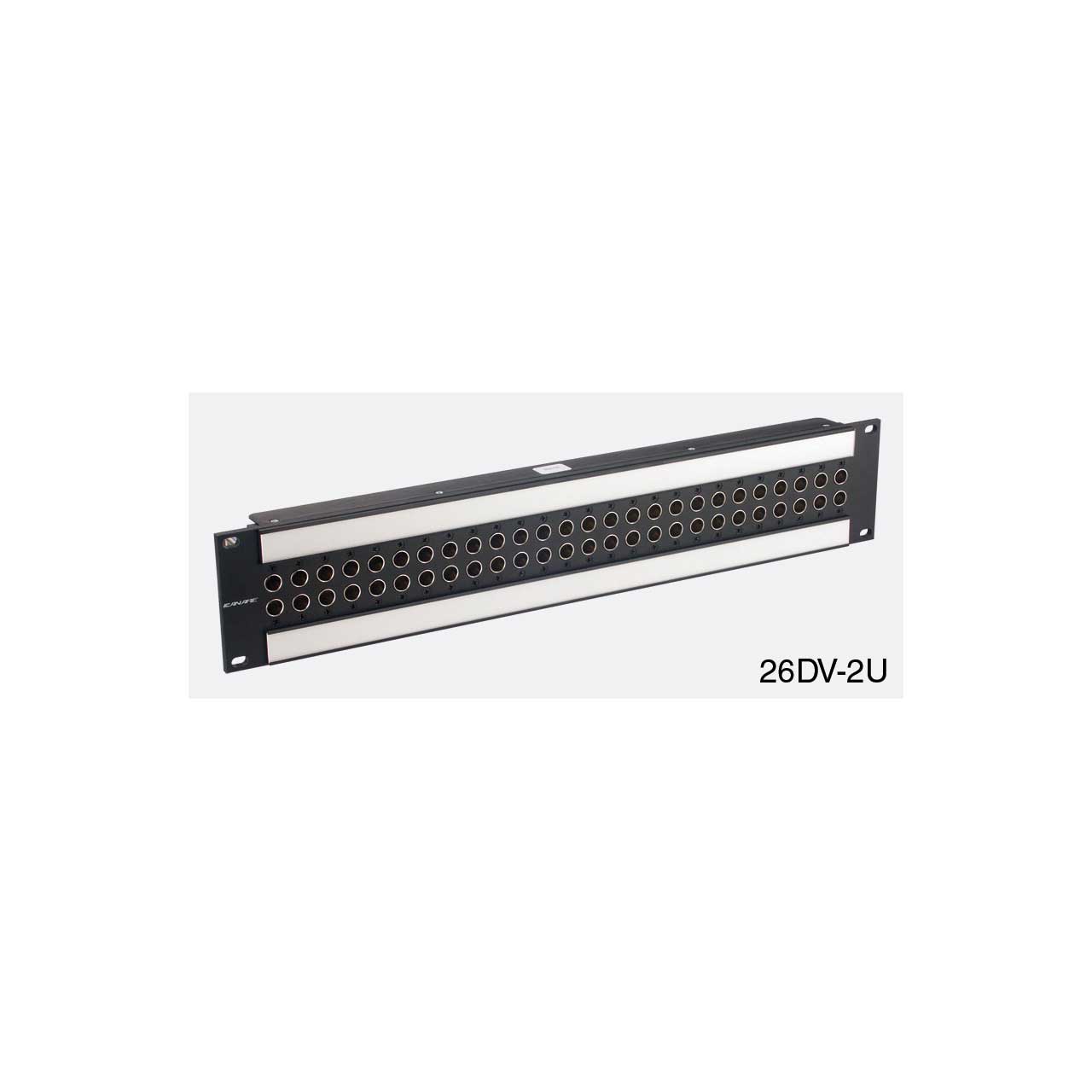

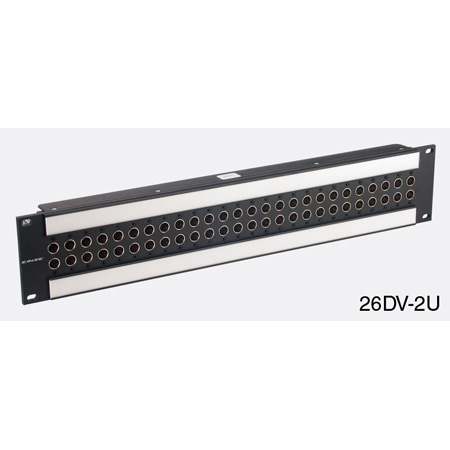

Canare 26DV-2U 2X26 2RU 75 Ohm Digital Video Patchbay (Normal Through)

ITEM #: 26DV-2U MFG #: 26DV-2U

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    26DV-2U - Overview

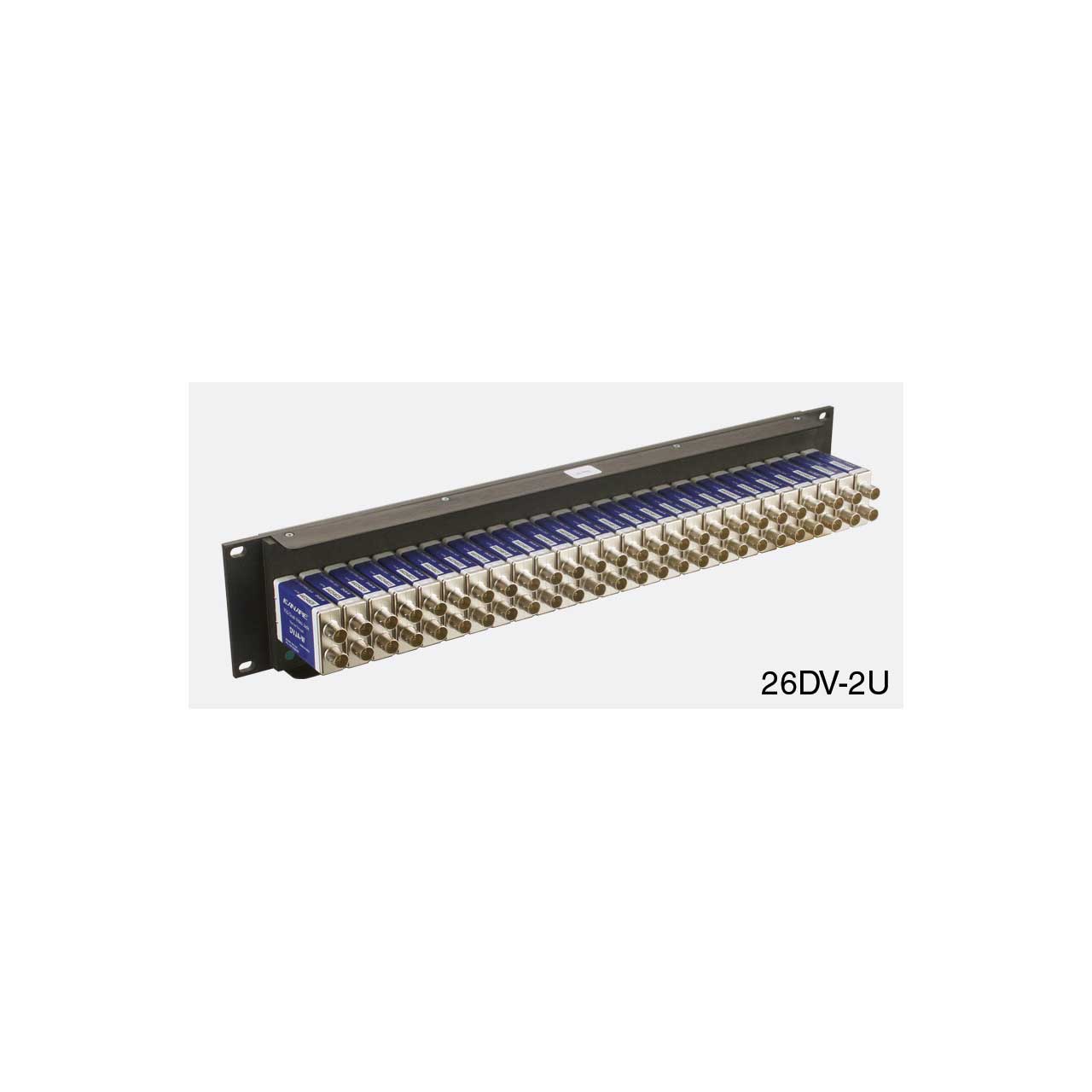

    Canare offers choices! Choose anywhere between a 2X20 thru to a 6X26 Canare 75 Ohm video rack patchbay all loaded with Canare's DVJB-W 75 Ohm Dual Video Jack Modules (WECO Standard). DVJB-W is "normal through", which provides a normalled route between top and bottom jacks and each DVJB-W module comes complete with two 75 ohm BNC's installed on the rear. Perfect choice for Master Control, Headends, Edit Suites, small Production Studios, OB Vans or anywhere rack space is at a premium.Each video jack is specifically designed for use with high-frequency signals. It incorporates an independently-developed rotary switch, which provides superior signal isolation (35dB or greater @ 750MHz and 20dB or greater @ 3.0GHz) and utilizes dual contact construction for improved contact stability.

    • Features:

      • 75ohm Digital Video Patchbay - Standard Size
      • 1RU, 2RU, 4RU Available
      • DVJB-W Loaded
      • DC to 3.0GHz & 20dB Return Loss
      • Canare Improved Original "Rotary" Switch
      • 1RU, 2RU or 4RU Across Loading
      • Beryllium Copper, Gold Plated Center Contacts
      • Light Weight Alloy Body
      • Easy Front Mount Assembly
    • Applications


      • SMPTE 424M Compliant
      • Hi Definition Serial Digital Interface (HD-SDI)
      • Serial Digital Video
      • Digital Audio Patch (75 ohm)
      • HDTV Upgrades
      • NTSC Analog
      • Satellite Headends
      • OB Van
      • Broadband Telcom
