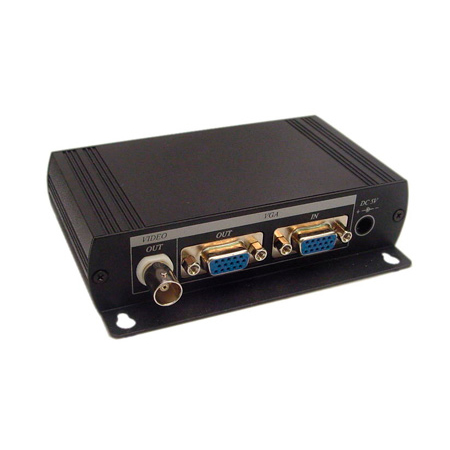

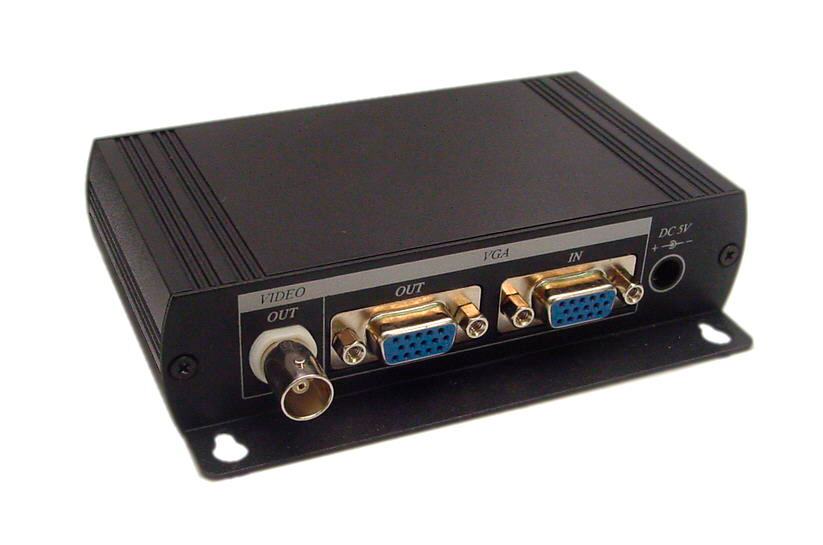

    40-40VC01 VGA to Composite Video Converter PAL-NTSC Support

    Manufacturer: Calrad Electronics

    Item #: 40-40VC01   •   MFG #: 40-40VC01


    List Price:$162.00
    Our Price:$145.80

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we’ll make it happen.



      VGA to composite video converter provides a simple method to view PC based video on any TV, projector, or any other viewing device that uses standard BNC (RCA) type composite video connectors. The converter also features a VGA output port that allows for VGA Loop-Thru. You can simultaneously view video on a VGA monitor while viewing the video on your CRT ,TV monitor. Simple to use push button controls for video setup. Includes DC power supply and 6" M-M vga pigtail cable.

      OSD Features: H-Size, V-Size, Brightness, Contrast, Hue, Saturation, Flicker, Sharpness, OSD Background.

      • Specifications

        • Supported video standards: NTSC/NTSC-EIAJ/PAL/PAL-M/PAL-N/SECAM.
        • Supports Resolutions: 640 x 480 (up to 85 Hz), 800 x 600 (up to 85 Hz) and 1024 x 768 (up to 75 Hz).
        • Image controls: Horizontal and vertical size, brightness, contrast, hue, saturation, sharpness and on screen display background.
        • Input Signal: VGA (HDDB15 Female Jack)
        • Output Signal VGA Loop-Thru (HDDB15 Female Jack)
        • Output Signal Converted: (BNC Female Jack, Composite Video)
        • DC Power Coax Jack: 5Vdc, 500ma
        • Size: Length 3.75" x Width 4.75" x Height 1.25"
