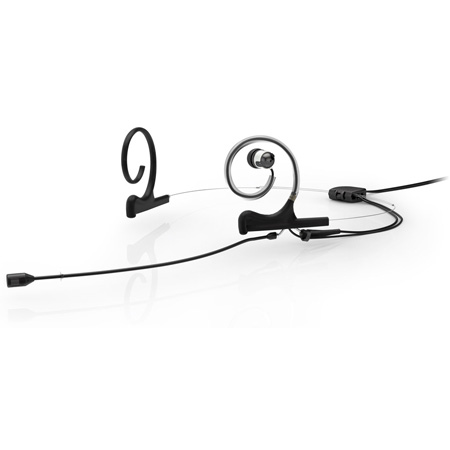

DPA 4288-DC-I-B00-L CORE Directional Flex In-Ear Headset Microphone - 120mm Boom - Black - MicroDot Only - Single In-Ear

ITEM #: 4288-DC-I-B00LH1 MFG #: 4288-DC-I-B00-LH-1

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the 4288-DC-I-B00LH1

4288-DC-I-B00-LH-1 - Overview

The In-Ear Broadcast Headset Microphones series is the first broadcast solution that gives you uncompromising mic performance and convenient in-ear communication.

No more fiddling with two parallel systems – one for the mic and one for the in-ear communication. This unique line of mics was developed specifically for broadcast professionals who insist on superior voice reproduction but also appreciate ease of use and outstanding comfort. The In-Ear Broadcast Headset Microphones series is available in both omnidirectional and directional variants.

Setting new standards for the broadcast industry
Already the worldwide leader in headset mics for theater and broadcast applications, the In-Ear Broadcast Series now adds an integrated in-ear monitor to create a broadcast and communication headset with outstanding acoustic performance and feather-light comfort.

The in-ear drivers allow no audio leakage to the microphone capsule. They are easily driven due to their high sensitivity. Two sizes of ear-pads are included to fit most ears.

The cable steer, located at the headset mount, controls the cable run down the neck. You can easily adjust the headset mount size.

These innovative headsets – the first of their kind – are designed for broadcast professionals who insist on superior voice reproduction without compromising on simple setup and daylong comfort.

4288 Directional In-Ear Headset Mic
The 4288 Directional In-Ear Broadcast Headset Microphone combines the legendary sound of the 4088 Directional Capsule with a lightweight and flexible headset system. Staying true to the DPA legacy, our headset mics offers accurate and natural voice intelligibility and very high-SPL capabilities – users can both speak and sing into the mic with no hint of distortion.

This mic comes in either a Single In-Ear or Dual In-Ear version. It is available in both black and beige.

  • Features:

    • Mic and in-ear monitor integrated in one unique solution
    • Easy to mount with minimum cable clutter
    • Legendary microphone capsule technology and sound quality
    • Lightweight and flexible
    • Minimal visual impact
    • Resistant to humidity
    • Modular adapter system fits most professional wireless systems

  • Specifications:

    • Directional pattern: Cardioid
    • Principle of operation: Pressure gradient
    • Cartridge type: Pre-polarized condenser
    • Frequency response: 20 Hz - 20 kHz
    • Effective frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in): 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
    • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
    • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
    • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
    • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
    • Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
    • Dynamic range - Legacy: Typ. 97 dB
    • Dynamic range - CORE: Typ. 111 dB
    • Max. SPL, THD 10%: 144 dB SPL peak
    • Rated output impedance: 30 - 40 Ω
    • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
    • Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
    • Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
    • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter
    • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
    • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    • Connector: MicroDot
    • Color: Black
    • Weight: Single Ear: 10 g (0.35 oz)
    • Microphone diameter: 5.4 mm (0.21 in)
    • Microphone length: 12.7 mm (0.5 in)
    • Cable length: 1.3 m (4.3 ft)
    • Cable color: Black
    • Cable diameter: 1.6 mm (0.06 in)
    • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    • Temperature range: -40°C to 45°C (-40°F to 113°F)
    • Relative humidity (RH): Up to 90%"

  • Warranty:

    • Limited 2 Year Warranty

  • GTIN:

    5713055022785
