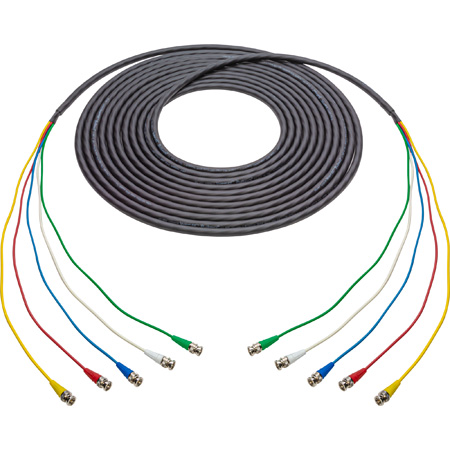

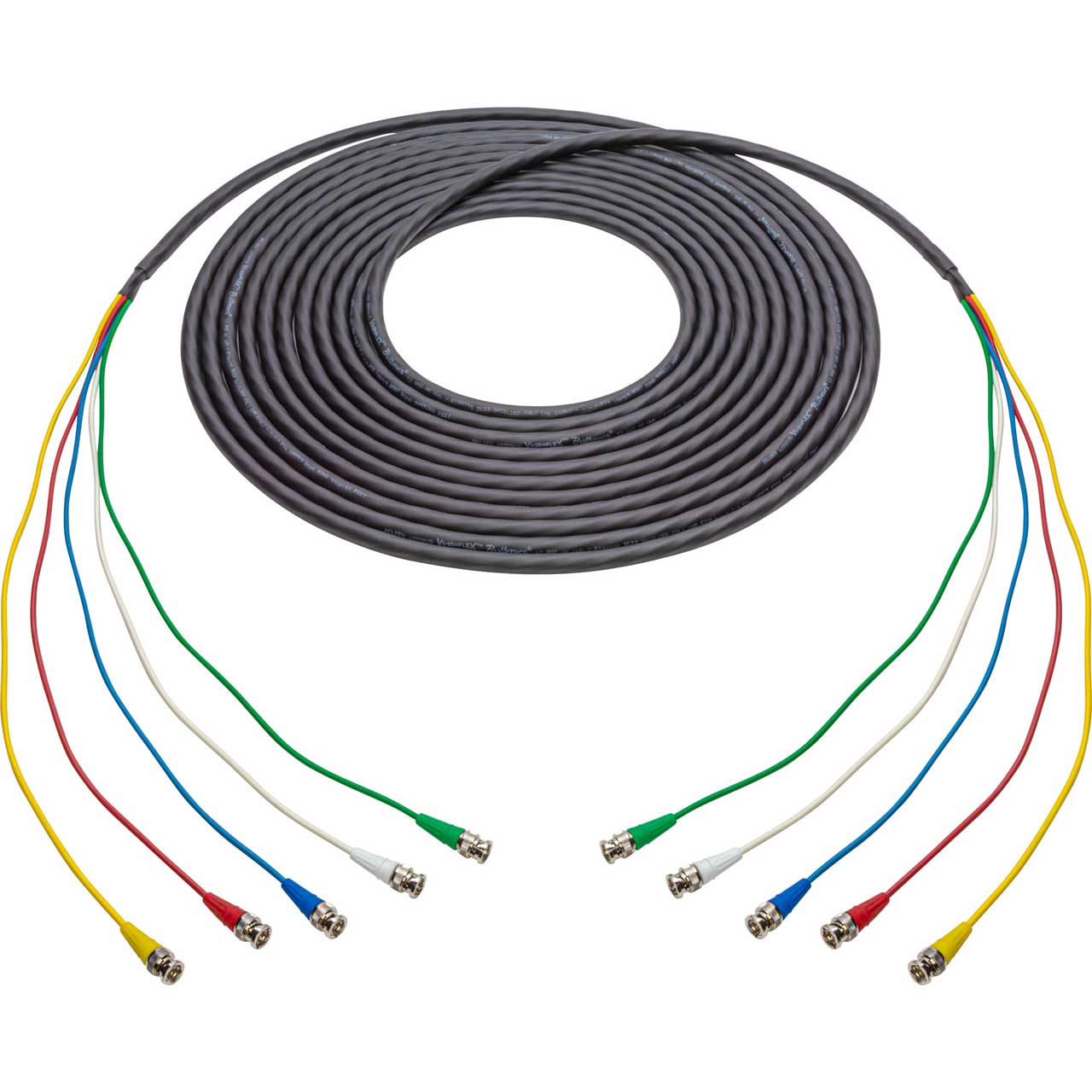

Laird 12G-SDI/4K 5-Channel Mini-RG59 Belden 4855RX5 UHD BNC Snake Cable - Black - 6 Foot

ITEM #: 4855RX5-BB-006 MFG #: 4855RX5-BB-006

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$175.95

Our Price:

$156.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


4855RX5-BB-006 - Overview

Laird 5-Channel 4855R 12G-SDI/4K UHD BNC snake cables are the next-gen Mini-RG59 BNC cable designed to handle 12GHz 4K UHD signals with a clean signal delivery up to 117 feet (3G-SDI up to 300 feet). These BNC Male to BNC Male cables provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4855R 4K Ultra-High-Definition coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure. Why run multiple cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855R Series is the 12G-SDI equivalent of Belden's famous 1855A cable. It features a silver plated copper center conductor and is the ideal choice for installations in studios, stadiums and live event venues. Custom lengths are always available.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 117 Feet for 12G-SDI even though Belden may show this distance as 149 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

  • Features:

    • Designed for UHD and 4K Video Transport 12 GHz, 4K UHD Precision 75-Ohm Video Cable
    • Space Saving 16 Channels in One Snake
    • Easy Handling & Portability
    • Each Channel Rated for 12G-SDI
    • Flexible Cable Suitable for Studio or Field Applications
    • Strain Relief Boots for Fast Identification
    • Quick/Disconnect with BNC & HD-BNC Connectors
    • Meets SMPTE 424M, ST 2081-1 and ST2082-1 Standards

  • Specifications:

      Belden 4855R16 Specifications:
    • RG Type: Mini 59
    • Conductor AWG: 23 AWG
    • Conductor Stranding: Solid
    • Conductor Diameter: 0.023in
    • Conductor Material: Silvered Copper
    • Insulation Material: Polyethylene
    • Insulation Diameter: 0.102in
    • Outer Shield Layer 1 Type: Tape
    • Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
    • Outer Shield Layer 2 Type: Braid
    • Outer shield Layer 2 Material/Coverage: Tinned Copper/95%
    • Inner Jacket Material: Polyvinyl Chloride
    • Inner Jacket Diameter: 0.159in
    • Outer Jacket Material: Polyvinyl Chloride
    • Outer Jacket Diameter: 0.917in
    • Nom. Conductor DCR: 19.7 Ohm/1000ft
    • Nom. Outer Shield DCR: 3.8 Ohm/1000ft (12 Ohm/km)
    • Nom. Capacitance Cond-to-Shield: 16.3 pF/ft (53.5 pF/m)
    • Nom. Characteristic Impedance: 75 Ohm
    • Nom. Velocity of Prop.: 82%
    • Min. Bend Radius: 9.2in
    • Return Loss:
      • 5 - 1600 MHz 23 dB
      • 1600 - 4500 MHz 21 dB
      • 4500 - 12000 MHz 15 dB

      Ampehnol RF Connector Specifications:
    • Frequency (Max GHz): 12GHz
    • Impedance (Ohms): 75Ω

  • Warranty:

    • 1 Year
