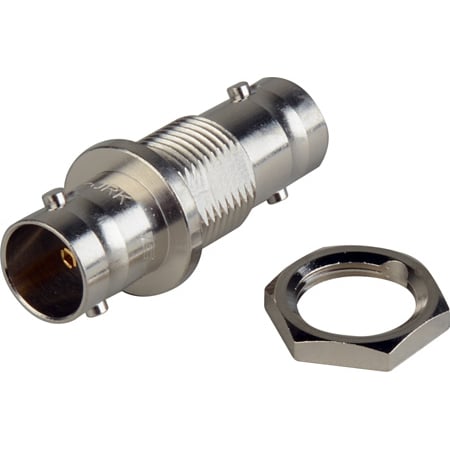

Canare BCJ-JRK 12G-SDI 75 Ohm BNC Female to Female Panel Mount Barrel Connector - Bulkhead Receptacle

ITEM #: BCJ-JRK MFG #: BCJ-JRK

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$4.71

Our Price:

$4.28

Availability: In Stock
iAvailability Description Popup


    BCJ-JRK - Overview

    The Canare BCJ-JRK is a bulk-head style panel mount type BNC feed-thru adapter designed specifically for 12G applications.Until now, very little has been offered for 12G signals in the way of extension adapters and receptacles. Now Canare has several solutions to keep your 12G signal flowing smoothly and patched accordingly! In 2015, SMPTE released ST 2082-1 12G-SDI, a standard for UHD-SDI (4K 2160p), as the next-generation of the single-link SDI format. 12G-SDI makes possible transmission of as much as eight times the data volume of HD-SDI (2K 1080i), and as much as four times the data volume of 3G-SDI (2K 1080p) over a single coaxial cable. At the same time, high performance is also required of both cables and connectors and that's where they come in. Canare has everything you need to get your 12G signal to where it's got to go..be it anywhere on the planet and beyond.

    • Specifications:

      • Electrical characteristics
      • Insulation resistance: 1000MΩ or more
      • Contact resistance: Between center contacts: 6mΩ or less / Between external contacts: 3mΩ or less
      • Return loss: 26dB or more(0 ~ 3GHz) / 20dB or more(0 ~ 6GHz) / 15dB or more(0 ~ 12GHz)

        Mechanical characteristics
      • Intermatability: To be engaged without any abnormality
      • Female contact retention force: 1.5 ~ 3.9N
      • Fixing force of contact with lock mechanism: No displacement more than 0.5 mm
      • Strength of coupling mechanism: Body shall not be disconnected or no deformation shall be made
      • Attachment strength: There shall be no break or damage on each part of connector.
      • Mechanical operation (repeated): Contact resistance 10m Ω or less

        Environmental characteristics
      • Corrosion resistance (Salt Mist): 50mΩ or less
      • Operating temperature: -40°C ~ +85°C
      • Operating humidity: ~ 90%
