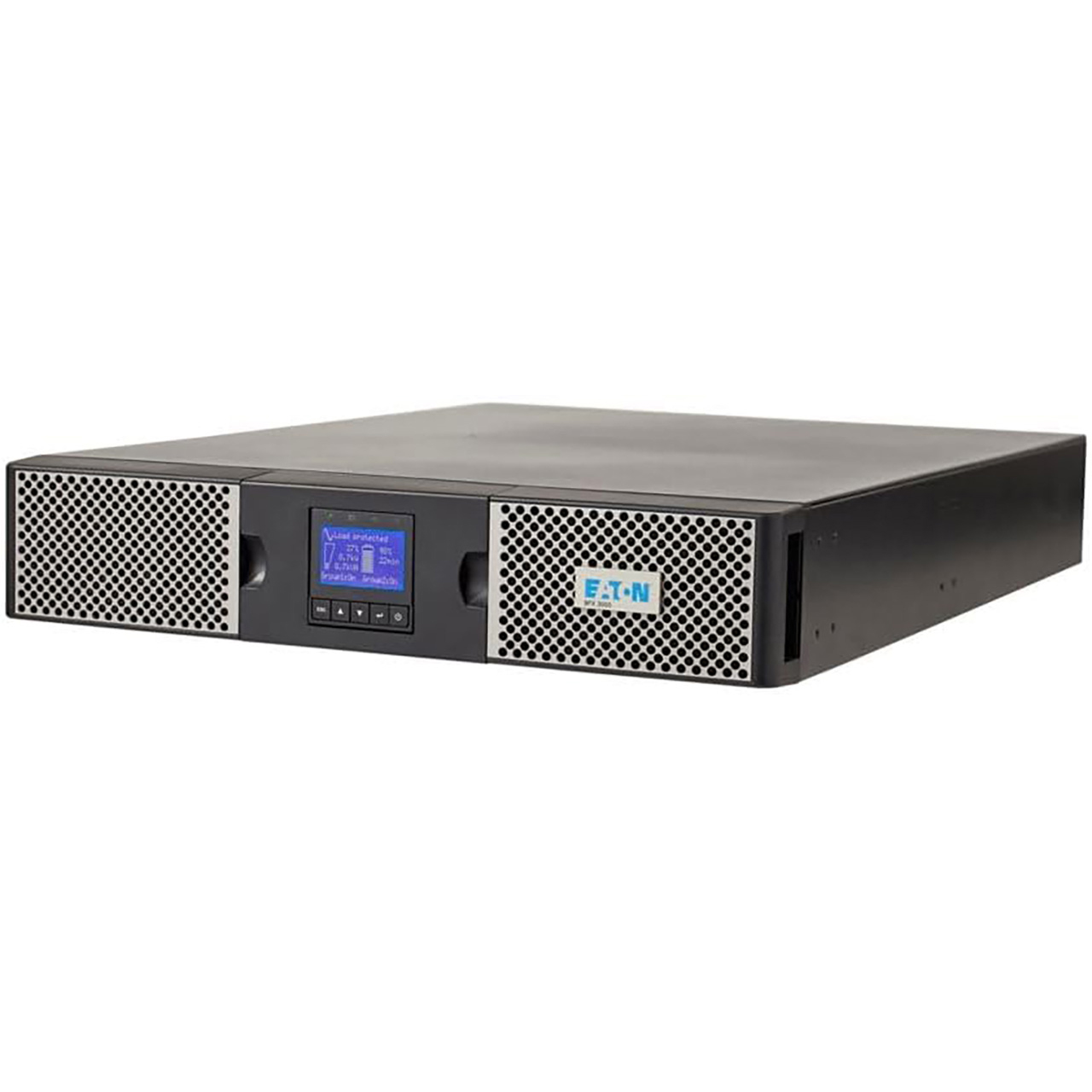

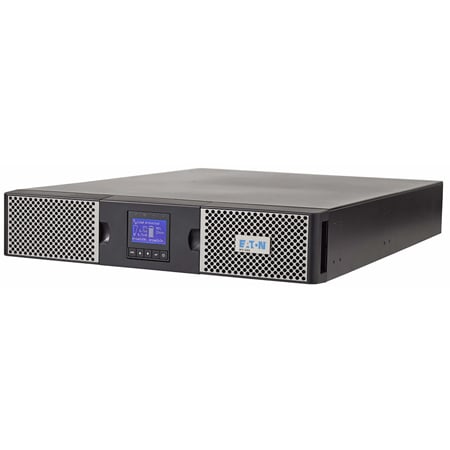

Eaton 9PX2000RT 9PX 2RU UPS with 1x 5-20P Input/6x 5-20R Outputs and 1x L5-20R Output

ITEM #: 9PX2000RT MFG #: 9PX2000RT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,951.00

Our Price:

$2,349.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


9PX2000RT - Overview

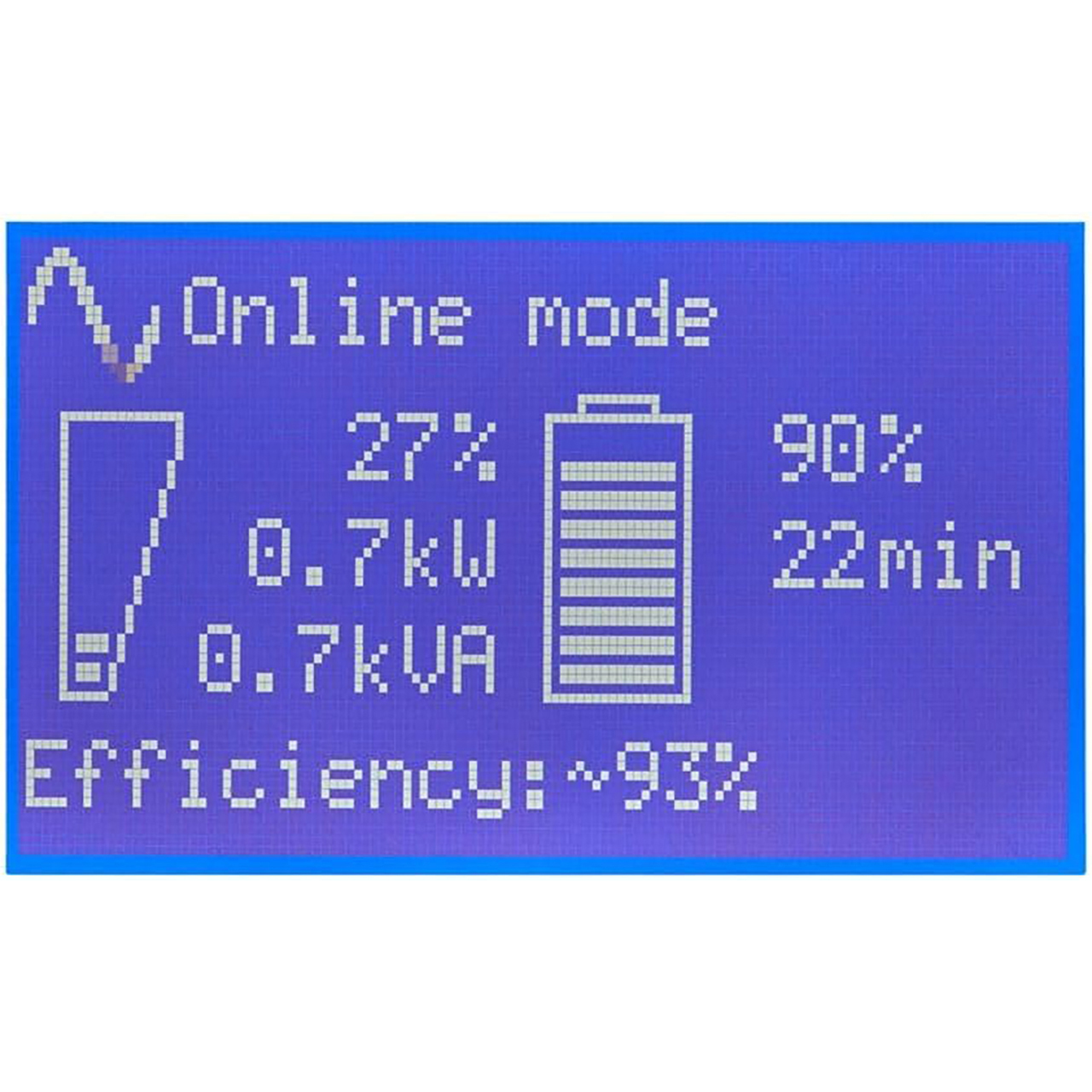

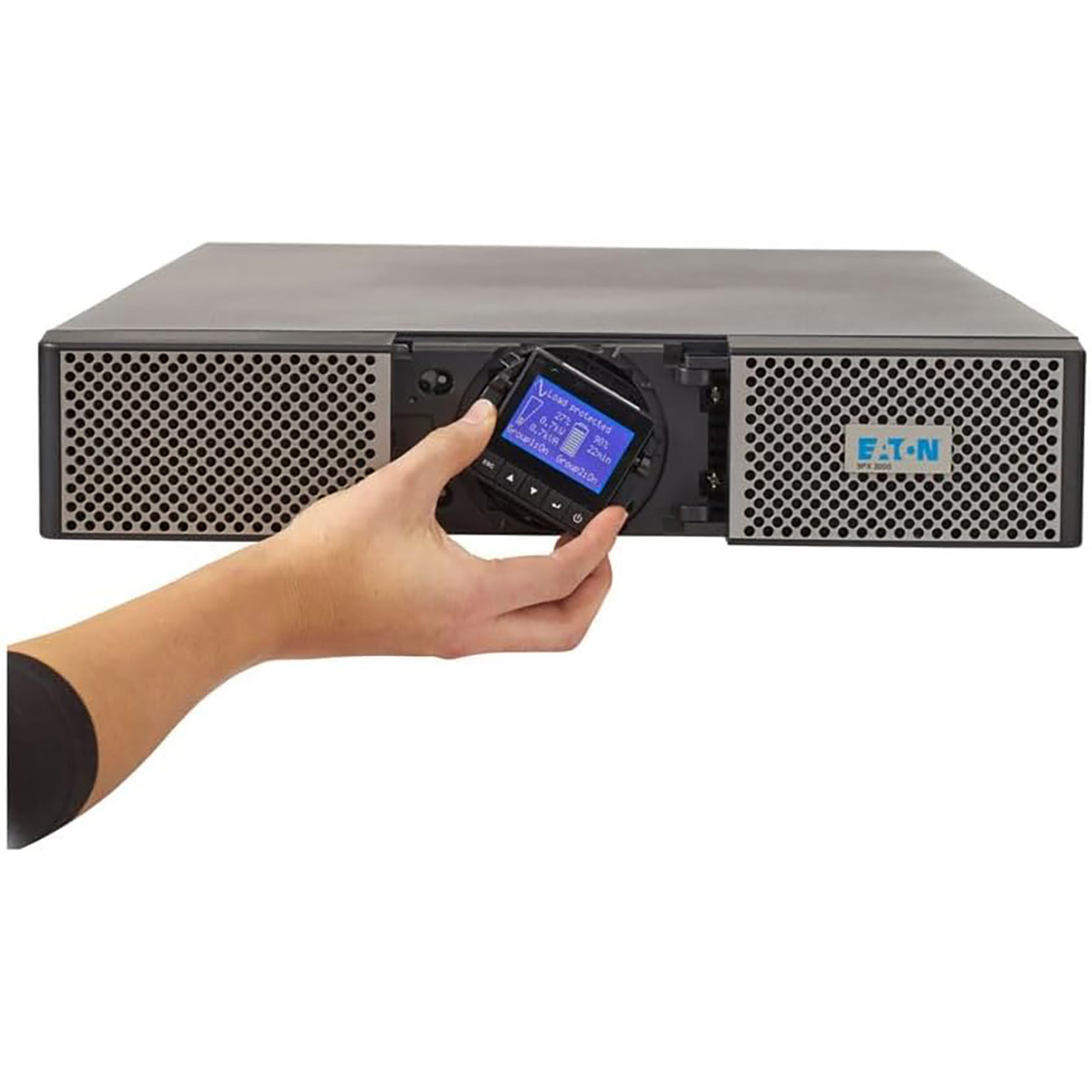

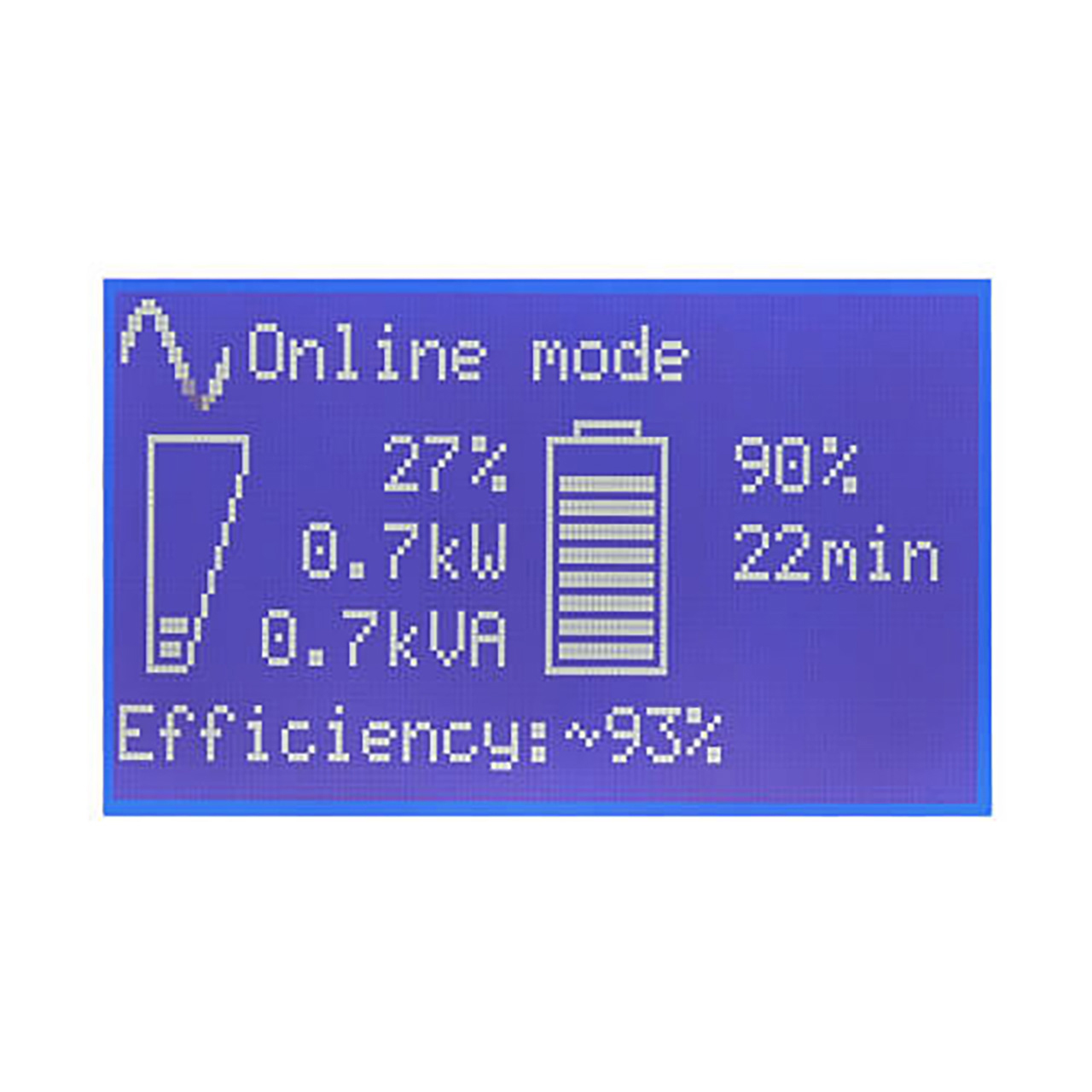

The Eaton 9PX2000RT Provides sine wave output, complete battery backup and power protection for mission-critical IT installations, edge networks and other advanced network applications. Keeps equipment running during outages to allow time for file saves and safe shutdown.Its optional NETWORK-M3 Gigabit network card enables full remote access and control. The NEMA outlets split into separate switched banks for managed load shedding. The Interactive LCD interface keeps you updated on critical load information in real time. Lastly, it has optional extended battery modules allow extended runtime to keep equipment powered.

2kVA/1.8kW/120V Battery Backup for IT Installations and Edge Networks
This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX2000RT is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Expandable Internal Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM72RT, sold separately) for hours of extended runtime.

Optional Gigabit Network Interface Offers 24/7 Remote Access
The NETWORK-M3 Gigabit network card (sold separately or as a network card bundle) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

Versatile Installation Options
You can mount the 9PX2000RT in just 2U of space in an EIA-standard 19" rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands. The 8ft power cord with NEMA 5-20P plug connects to a compatible AC outlet.

  • Specifications:

      General
    • Dimensions (HxWxD): 3.4" x 17.3" x 23.8"
    • Weight: 61.5lbs
    • Compliances:
      - IEC 62040-2 Cat C1
      - CISPR22 Class B
      - FCC part 15 Class B
      - VCCI Class B
    • Certifications:
      - cULus Listed
      - NOM
      - ENERGY STAR certified
      - ICC-ES AC156 OSHPD Seismic certified
    • Form Factor: Rack/tower
    • Rack Size: 2U
    • Rack Mounting Kit: Yes
    • Efficiency @ Max. Load: 91%
    • Internal Bypass: Yes

      Battery
    • Battery Management: ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
    • Battery Replacement: Hot-swappable internal batteries and extended battery modules (EBMs)
    • Battery Type: Sealed, lead-acid
    • Extended Battery Capability: Add up to 4 extended battery modules (EBM). Part number 9PXEBM72RT.

      Electrical Output

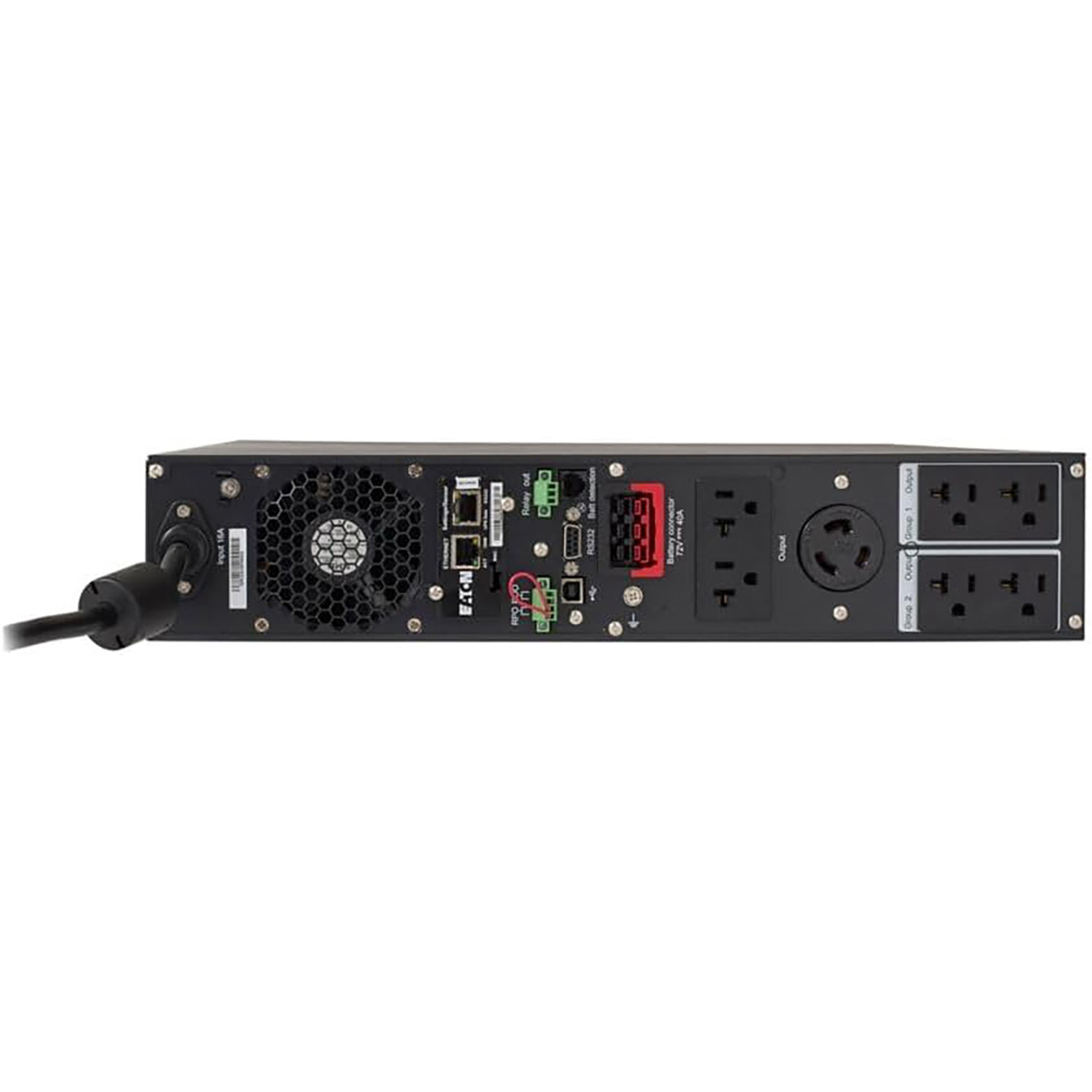

    • Receptacle:
      - 6x 5-20R
      - 1x L5-20R
    • Topology: Online/Double-conversion
    • Wattage: 1800W
    • VA Rating: 2000VA
    • Output Waveform: True sine wave
    • Voltage: 120V
    • Output Power Factor: 0.9
    • Output Nominal Voltage: 120V default (100V/110V/120V/125V)
    • Output Voltage Range: ±1% steady-state
    • Output Frequency: 50/60Hz

      Electrical Input
    • Input Connection: 5-20P
    • Input Cord Length: 8ft
    • Input Nominal Voltage: 120V default (100V/110V/120V/125V)
    • Input Frequency Range:
      - 60Hz: 50Hz - 70Hz
      - 50Hz: 40Hz - 60Hz
    • Input Power Factor: >0.99 typical

      Communications
    • Communication:
      - MiniSlot
      - 1x USB port
      - 1x serial RS232 port
      - 1x mini-terminal block for remote ON/OFF
      - 1x mini-terminal block for remote power off
      - 1x mini-terminal block for output relay Communication slot
    • Expansion Slots:
      - 1x Mini-Slot (MS) expansion port. The following optional connectivity cards may be ordered separately.
      - Gigabit Network Card Part Number: NETWORK-M3
      - Modbus Card Part Number: INDGW-M2
      - Relay Card Part Number: RELAY-MS
    • Software Compatibility: Intelligent Power Software Suite
    • User Interface: Graphical display, 5-button programmable menu

      Environmental
    • Altitude:
      - 0m - 1500m (32°F - 104°F)(0°C - 40°C)
      - 1500m - 3000m (32°F - 95°F)(0°C - 35°C)
    • BTU Rating:
      - Online: 578
      - Battery: 974
    • Noise Level: 7dB @ 1m
    • Relative Humidity: 0% - 96% non-condensing
    • Temperature Range: 32°F - 104°F (0°C - 40°C)

  • Item Includes:

    • 1x RS-232 cable
    • 1x Rack-mounting hardware
    • 1x Tower support stands
    • 1x Safety guide
    • 1x Quick Start Guide
    • 1x 2000VA 1800W 120V 9PX Online Double-Conversion UPS w/ 7 Outlets
    • 1x USB cable

  • Warranty:

    • 3 Year Limited Warranty
