    CATX-DP-USBA - Overview

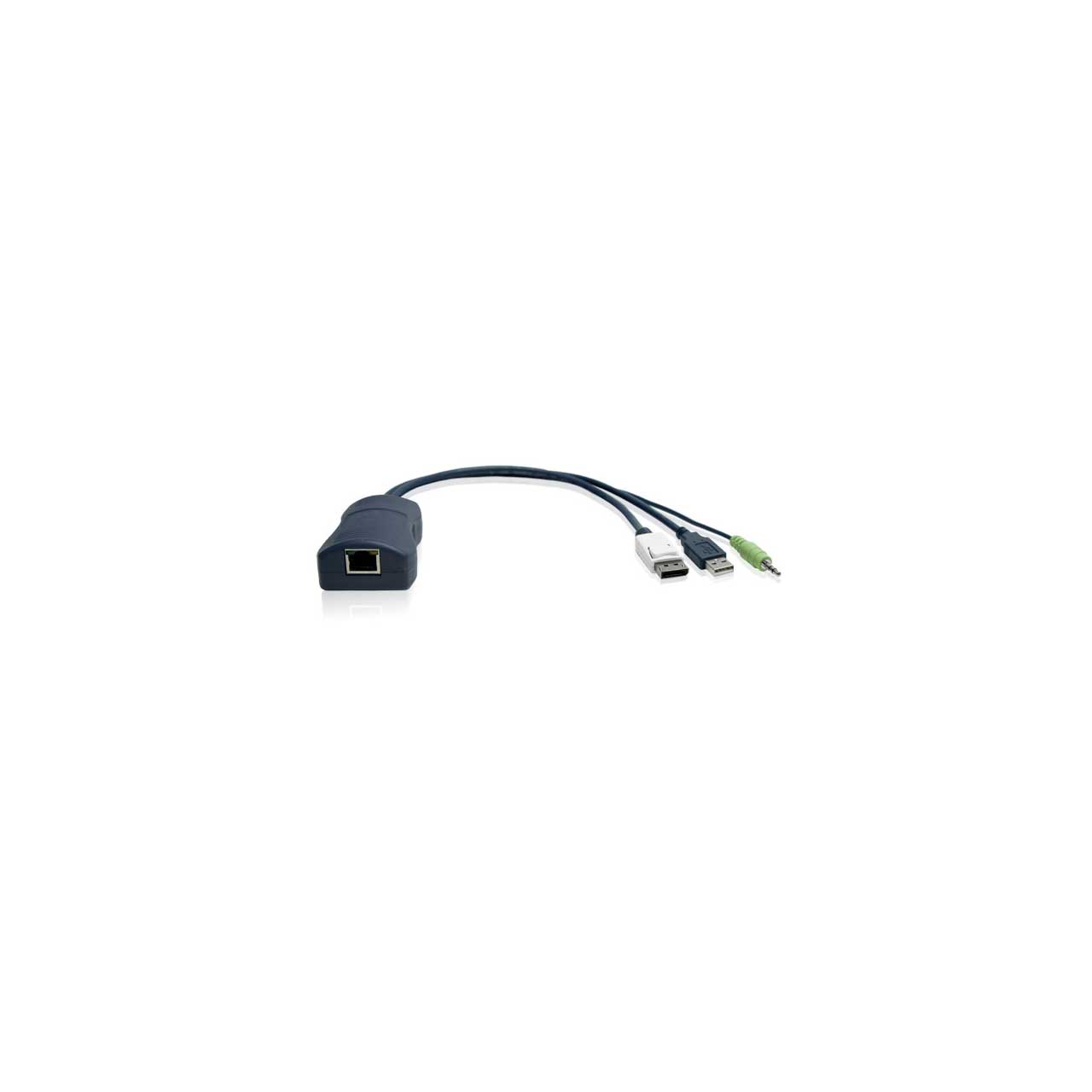

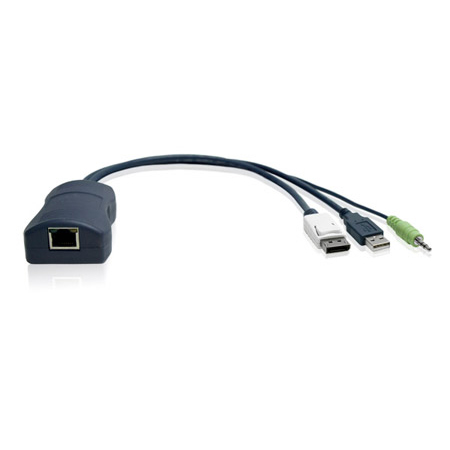

    The Adder CATX-DP-USBA DisplayPort Computer Access Module is a highly compact device that allow you to extend your DisplayPort equipped computer over CATX cable up to 984 Feet/300 meters. The CAM connects to the DisplayPort video connector plus USB and Audio ports on your computer and then connects via CAT 5, 5e or 6 cabling to the AdderView CATx KVM switches and/or the AdderLink X100 or X200 extender receivers (sold separately), each of which can be located up to 984 Feet/300 meters from the module. Your video display, keyboard, mice and speakers are then all linked to the remote device.

    • Features:

      • Resolutions and cable lengths
      • The maximum resolutions achievable are:
      • 1920 x 1200 x 60Hz at 200m
      • 1280 x 1024 x 60Hz at 300m.

      • Power
      • The CATX DisplayPort CAM uses the USB port to derive its power from the host computer, dispensing with the need for a separate power supply and thus simplifying installation. Therefore the USB cable must always be connected to a USB port on the computer that is capable of providing up to 500mA. Power is not taken from the DisplayPort connector

      • MDPUSBA Mini DisplayPort version available
      • Some computers, servers and graphics cards (Apple Mac Pro and ATI Radion graphics cards) come with mini DisplayPort connectors as these are smaller than the standard connector. A version of the CAM is available with Mini DisplayPort connectors.
    • Specifications:

      • Maximum Video Resolution
      • 1920 x 1200

        Extension Distance
      • 1920 x 1200 x 60Hz at 200m
      • 1280 x 1024 x 60Hz at 300m.

        O/S Compatibility
      • Operating system independent

      • 1 x Display Port, 1 x USB- Type A plug, 1 x
      • 3.5 mm jack plug and 1 x RJ45
      • 1 x Mini Display Port, 1 x USB- Type A
      • plug, 1 x 3.5 mm jack plug and 1 x RJ45 (CATX-MDP-USBA)

        Physical design
      • Local: Hi Impact resistance ABS
      • Dimensions (WxDxH): 1.75 x 3 x 1" (45 x 75 x 25mm) with 12" (300mm) flying leads
      • Weight 100g / 0.2 lb.

      • USB powered device Max 500mA @ 5V

        Operating temperature
      • 0°C to 40° / 32°F to 104°F

      • CE, FCC
    • Item Includes:

      • CATX-DP-USBA CATx DisplayPort Computer Access Module (CAM)
    • Warranty:

      • 2 Year Limited
