    DDX USR - Overview

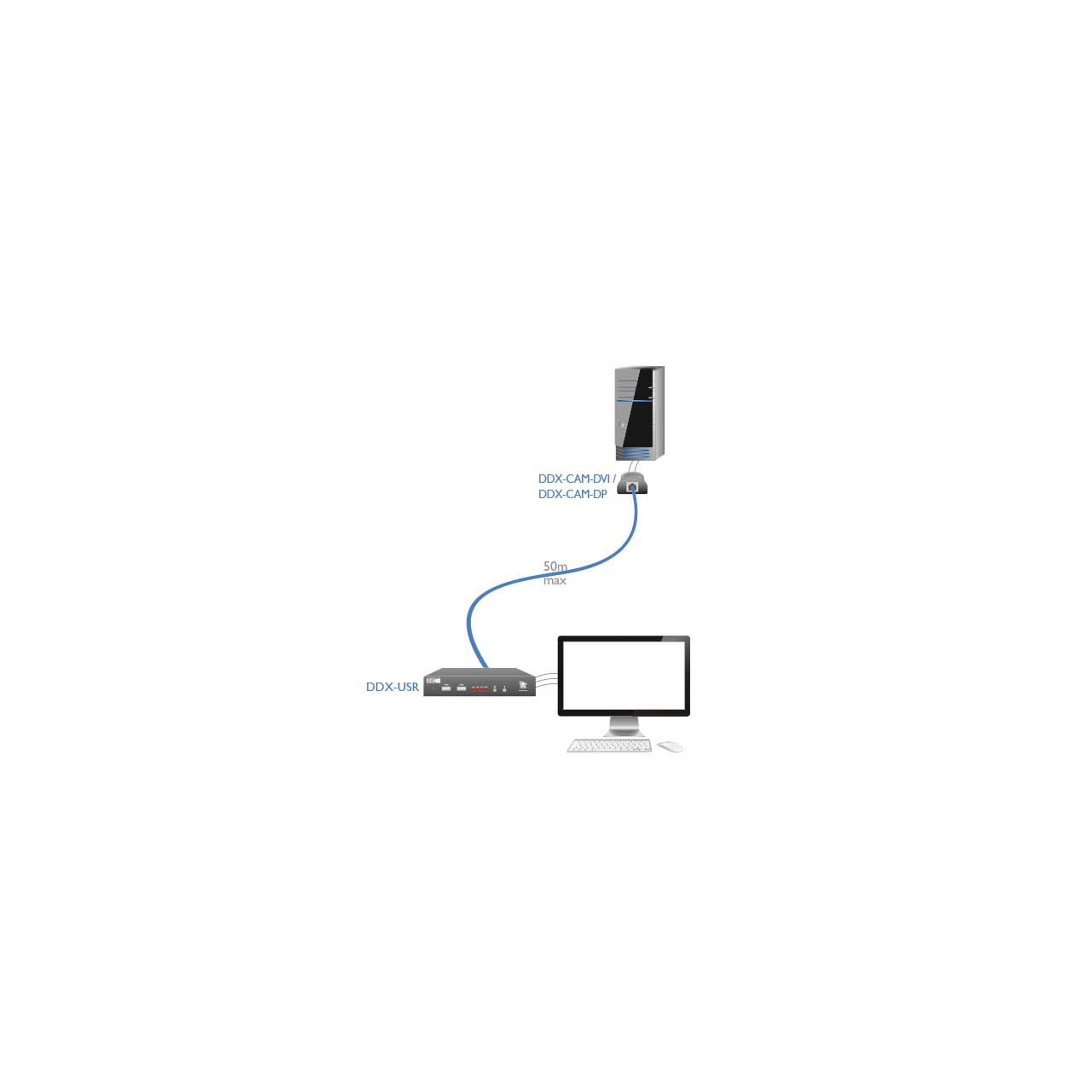

    Part of the ADDERView™ DDX range, the DDX USR is the user station for the DDX range, a high performance KVM Matrix that provides powerful functionality inside small, compact form factors. When connected directly to the DDX Computer Access Module or CAM (sold separately), it creates a KVM extender. When combined with the DDX10 or DDX30 (also sold separately), it forms an integral part of a KVM Matrix.

    User Station for the Direct Connect Matrix system: hardware can be removed from desks up to 164 feet/50m away from user console, reducing noise levels and increasing employee comfort and productivity

    Easily expand your installation: for each new computer system and user, simply add a USR and CAM module, safeguarding your investment

    High Quality video: lossless HD video in real-time

    Please Note: A minimum specification of Cat6a or CAT7 Shielded Twisted Pair (STP) cables must be used with the DDX10, DDX30, DDX CAM and DDX USR . Recommended cables are SFTP, unshielded cables are not suitable for DDX. Extension distances up to 164 feet/50m are supported with single uninterrupted runs of recommended cable (shielded CAT6a or CAT7 cable, CAT5 or CAT5e cables must NOT be used).

    • Features:

      • Perfect digital video: uncompressed video technology provides ultra-low latency and pixel perfect digital video up to 24 bits per color at a maximum of 1920 x 1200 over 60Hz, including 1080p, with real time control
      • EDID management: Extended Display Identification Data (EDID) enables the remote system to exactly mirror the date coming from the source monitor
      • Plug and Play: delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
      • Simple CATx cabling: analog audio, video and USB2.0 HID pass through a widely available SFTP cable, which also connects the central switch to the user console (up to 164 feet/50m) and computer dongles/CAM (up to 32 feet/10m)
    • Specifications:

      • Approvals / Compliance
      • CE
      • FCC

      • Standards
      • Resolutions up to 1920 x 1200 at 60Hz are supported, including 1080p.
      • Supports USB2.0 (Low, Full Speed) HID devices.

      • Cable Requirements
      • A minimum specification of Shielded Twisted Pair (STP) cables must be used with the DDX30, DDX10, DDX CAM and DDX USR. Recommended cables are SFTP:
      • Daetwyler 7702 Flexible patch cable
      • Daetwyler 7120 Bulk cable
      • Unshielded cables are not suitable for DDX. Distances are achieved using single lengths of SFTP trunk/bulk cable with two 3m SFTP patch cables. For each additional break/patch connection reduce distance by 5m. Patch cables must be SFTP.

      • Environmental
      • 0 to 40°C / 32 to 104°F

      • Connectors

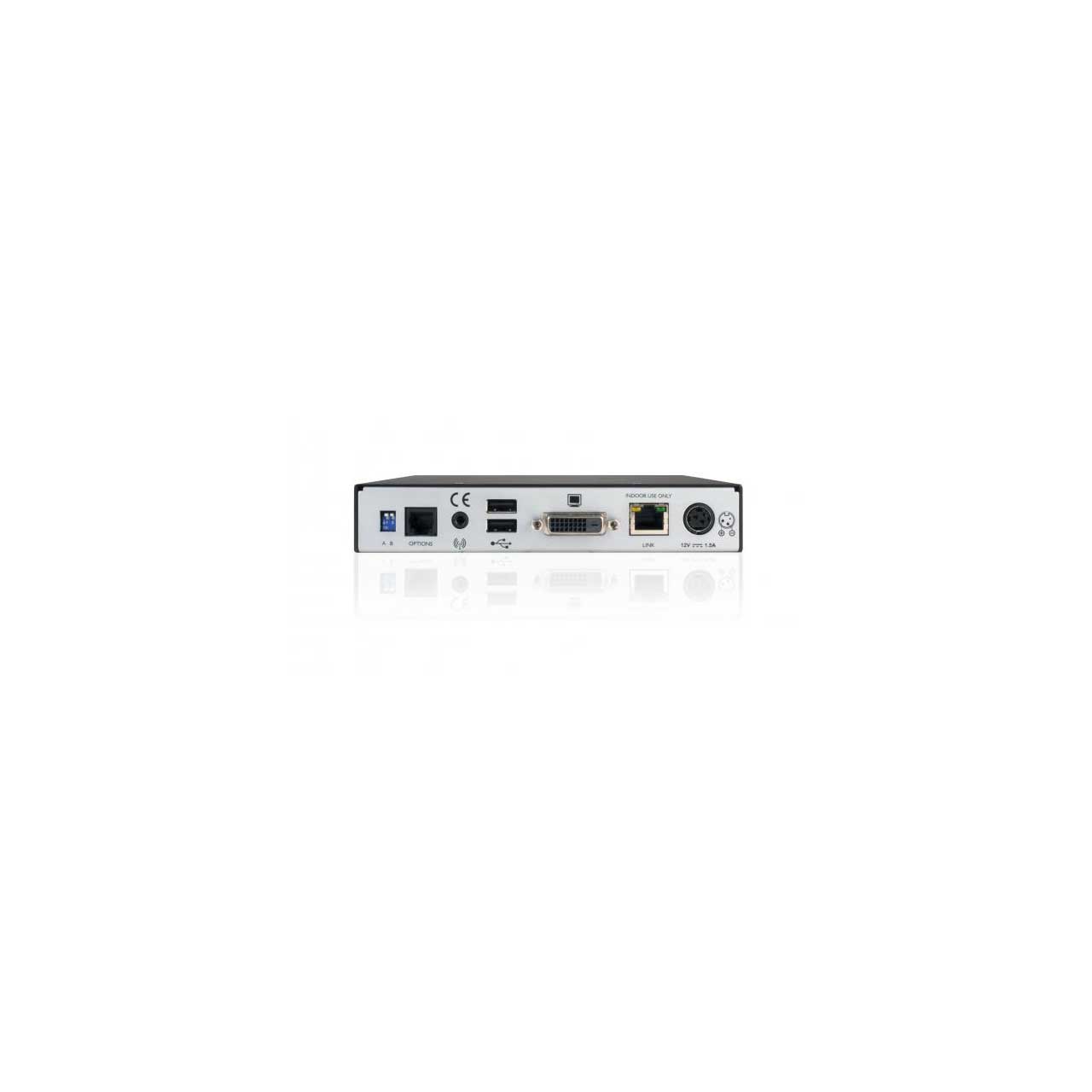

      • DVI-D, USB type A x 4, 6p6c options port, 3 x 3.5mm jack sockets for headphone out, microphone in and line out
      • Network connector 30 x 8p8c ports for user connection

      • Mechanical
      • Compact case, robust metal construction. 170mm/6.65" (w), 31mm/1.22" (h), 120mm/4.8" (d), 0.6kg/1.3lbs

      • Power
      • Locking 3-pin DC jack, 100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter

      • Software
      • All known operating systems
    • Warranty:

      • 2 Year Limited
