    ALIF2122T-US - Overview

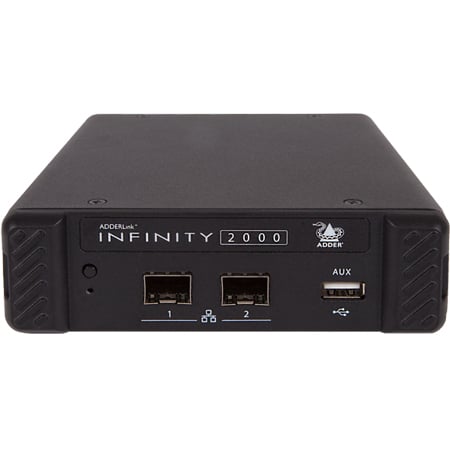

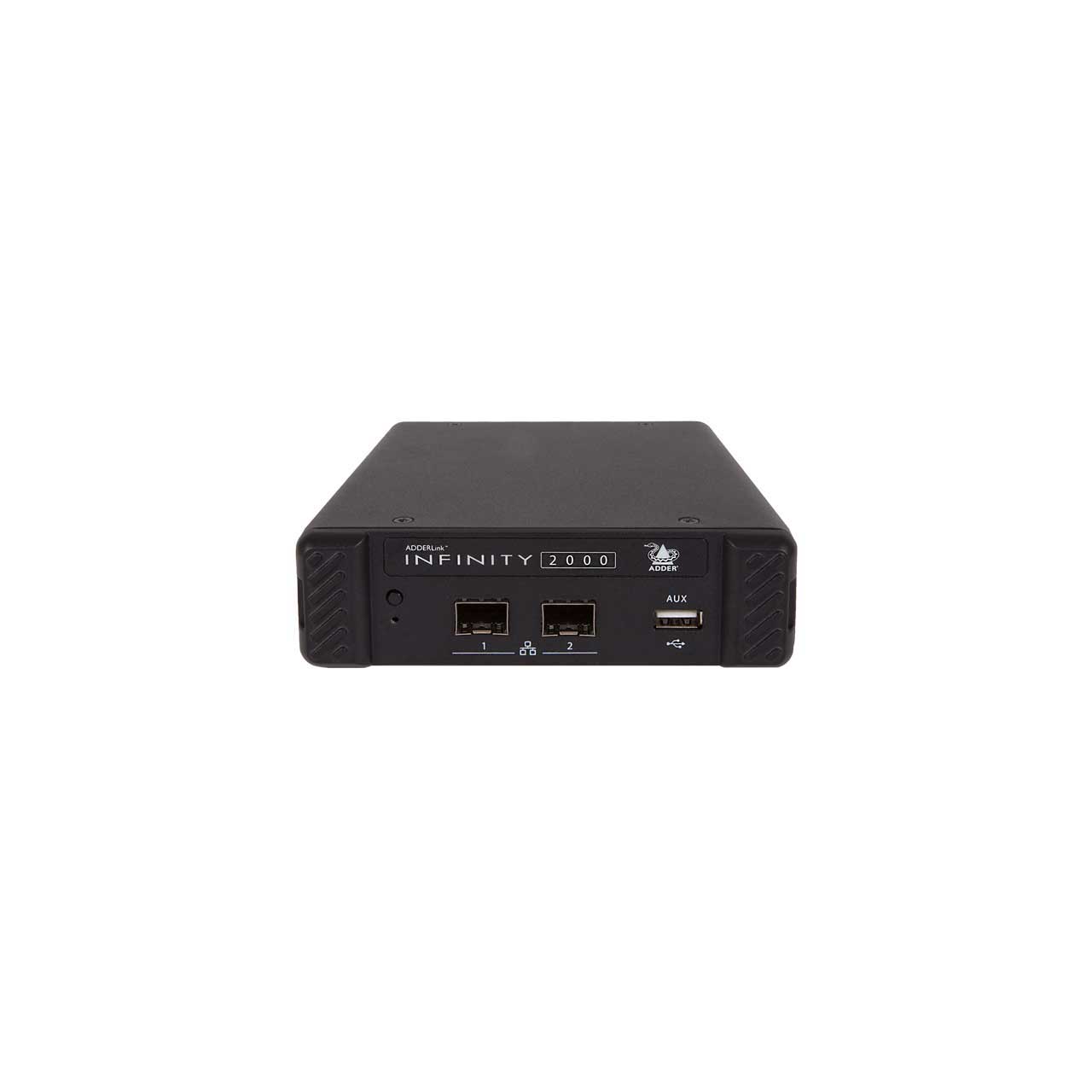

    The Adder ADDERLink INFINITY 2122 Transmitter is a high performance IP KVM (Keyboard, Video and Mouse) extender that forms part of the ALIF matrix solution. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; whilst maintaining a pixel-perfect desktop experience.

    Perfect digital video, real time control
    Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ADDERLink INFINITY (ALIF) 2122 provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.

    Single CATx cable or fiber with immunity from interference
    Using standard IP technology allows a choice of single structured cable (CATx) or fiber connection achieving reliable links without interference.

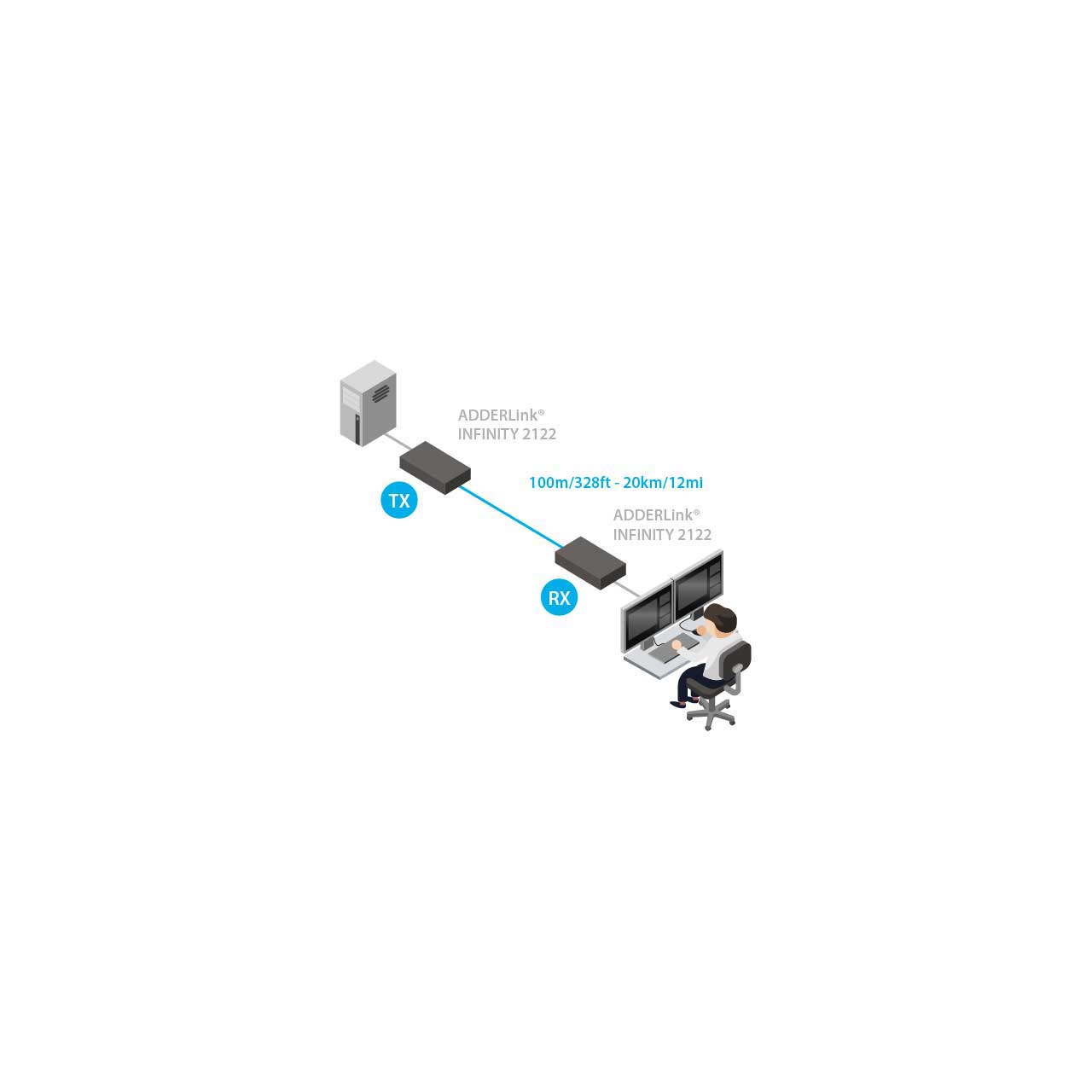

    Extension distances
    Extension distance is not limited to a single 100m/328ft cable length - it can be extended further by adding a 1GbE network device to achieve an additional 100m/328ft. The units are fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances of up to 20km/12mi.

    Support for Mac Pro® (Dithered Video)
    Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. Dithering can significantly increase the normal video data rates. The ALIF2122 TX has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

    USB2.0 with class control
    Enables connection of USB devices such as mouse and keyboard, graphics tablets, jog shuttles, joysticks, and 3D explorers, alongside mass storage devices. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.

    EDID management
    Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.

    Please Note: the ALIF2122T-US transmitter requires at least one ADR-ALIF2122R-US receiver to operate (sold separately).

    • Features:

      • Plug and play
      • 2 x SFP ports for maximum flexibility. Can be used with either CATx or fiber modules, allowing distances of up to 20km
      • Video resolutions up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz
      • USB mass storage devices supported plus keyboard, mouse, tablet and touch
      • Support for Mac Pro®
      • Redundant network operation
      • Dual touch screen support including onscreen keyboard and floating launch button
    • Specifications:

      • Operating Systems and Software Compatibility
      • Software: All commonly known software and operating systems including Windows®, Linux®, macOS®, and Sun OS. Hardware: RS232 is supported via USB to RS232 accessory

      • Video resolutions
      • The system supports up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz

      • USB2.0 with class control
      • Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non-HID devices. Isochronous devices are not supported (e.g. USB audio or video devices)

      • Audio
      • USB audio 2 channel 16bit @48KHz (Bi-directional)

      • Serial Comms
      • RS232 or other serial standards can be passed between the units to a maximum baud rate of 115,200 by using serial to USB converters

      • Computer connections transmitter (TX)
      • 2x DisplayPort connections, 1x 3.5mm socket for Audio in, 1x USB Type B, 1x USB Type A for auxiliary connections and 2x SFP for 1GbE network connections

      • Peripheral connections receiver (RX)
      • 2x DisplayPort connections, 1x 3.5mm socket for Audio out, 1x 3.5mm socket for headset/microphone, 4x USB Type A and 2x SFP for 1GbE network connections

      • Physical design
        Transmitter (TX)
        1U compact case, robust metal construction
        Dimensions: 39mm/1.5"(H) x 136mm/5.3(W) x 150mm/5.9"(D)
        Weight: 0.8kg/1.7Ibs

      • Approvals
      • CE, UKCA, FCC, ICES, cULus

      • Power
      • External power supply
      • Input: 100-240V AC 47/63Hz
      • Output: 12V 1.5A (18W)
      • Typical power consumption: 7W

      • Operating temperature
      • Operating temperature: 0 to 40°C/32 to 104°F
      • Storage temperature: 0 to 40°C/32 to 104°F
      • Storage and operating relative humidity: 10-90% non-condensing
      • Altitude: < 2000m

      • Mean Time Between Failure
      • ALIF2122T 461,000 hrs
      • ALIF2122R 345,000 hrs
      • Calculated according to Telcordia SR332 Issue 4 @55°C
    • Item Includes:

      • 1x ALIF2122 Transmitter
      • 1x SFP CATx RJ45
      • 1x PSU and IEC lead
    • Warranty:

      • 2 Year Limited
    • GTIN:
