AF-OLK52N Multimode/Single Mode Fiber Optic Test Kit

ITEM #: AF-OLK52N MFG #: AF-OLK52N

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AF-OLK52N

AF-OLK52N - Overview

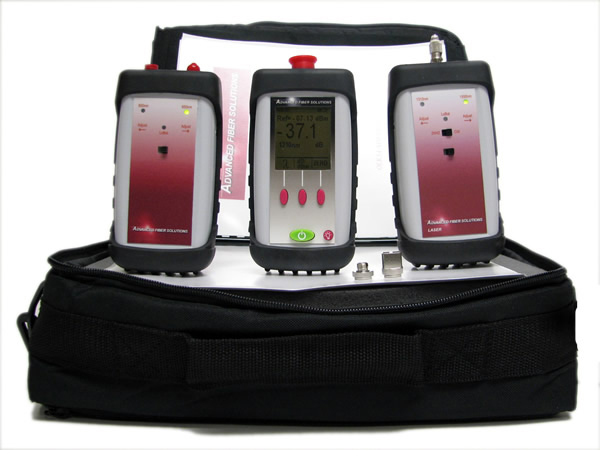

The AF-OLK52N fiber tester kit allows users to quickly test multimode and single mode fiber cabling. The kit features a power meter and two light sources in a convenient carry case. The power meter supports 850 / 1300 / 1310 /1490/ 1550/ 1625nm light sources and features snap on ST, FC and SC connections. The single mode laser source features the same snap on 3 connector interfaces as the power meter, while the multimode light source uses an ST connector. The multimode LED source provides 850/1300nm signal and the single mode Laser source provides 1310/1550nm signal. The InGaAs detector in the power meter offers a broad dynamic range of ~60dB which far exceeds the requirements of many users.

  • Features:

    • Supports test of up to 6 different wavelengths.
    • Comes with a convenient carrying case.
    • Included power meter supports 100+ hour battery life.


  • Specifications:

    • Calibrated Wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm
    • Measurement Range: +6dBm to -60dBm
    • Detector Type: 1mm InGaAs
    • Accuracy: (@77°F, -20.0dBm) ±0.25 dB
    • Measurement Units: dBm (absolute)\Watts\dB (relative)
    • Resolution: 0.1 or 0.01 dB
    • Controls: 5 Soft Buttons
    • Buttons: On/Off, Backlight, ?, dB-dBm, Zero Reference
    • Power: 1x9V Batteries or AC Power Converter
    • Low Battery Indicator: Yes
    • Display: Graphical LCD with Backlight
    • Adaptor Options: ST, SC, FC, 2.5mm Universal & LC (other adapters also available)
    • Auto-Shutdown: Yes
    • Protective Rubber Boot: Yes
    • Testing Reference Guide: Yes
    • Enclosure Size: Compact Handheld (L-4.94"/W-2.75"/H-1.2")

      Temperature Specifications
    • Operation Temperature: 14 to 122°F (45% Hum, non condensing)
    • Storage Temperature: -4 to 140°F (75% Hum, non condensing)
