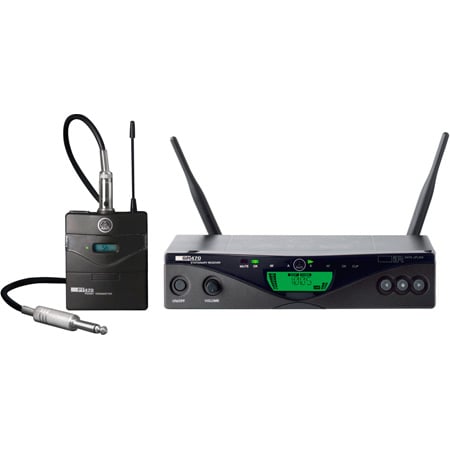

AKG WMS470 Instrumental Set Professional Wireless Microphone System - Band-7 50mW

Manufacturer: AKG Acoustics

Item #: AKG-3307H00370   •   MFG #: WMS470


List Price:$629.00
Our Price:$499.00

free ship
More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

California Residents:
Cancer and Reproductive Harm -


Flexible and Expandable
For conference, medium theater and houses of worship applications.

WMS470 is a professional multichannel wireless microphone system with pilot tone transmission to prevent unwanted noise. The Instrumental Set includes a PT470 body-pack transmitter in a compact and rugged housing providing supreme audio quality for demanding guitars and e-basses. The space diversity receiver offers both a microphone level and a line level output.

SR470 Professional wireless stationary receiver
SR470 analog space diversity professional wireless receiver comes in a rugged half-rack metal housing. The enhanced Auto Setup, Environment Scan and Rehearsal mode allows a very quick and easy system setup. The programmable backlight changes color to warn the user of critical operating conditions e.g. transmitter low battery information, audio peaks, or low radio signal strength.

A wide range of professional antenna splitters, power supplies, and high quality remote antennas are available to handle complex antenna systems and up to 48 simultaneous wireless channels, even with large covering area.

PT470 Professional wireless body-pack transmitter
The PT470 is an analog professional wireless body-pack transmitter in a small, rugged housing. A pilot tone transmission prevents unexpected startup noise, continuously sending transmitter data, including low battery information, to the receiver. An enhanced battery management allows up to 14 hours of operation on a single AA-size battery. With the integrated charging contacts, a standard NiMH rechargeable battery can be charged inside the transmitter.

An optional RMS4000 external mute switch allows the user to mute the transmitter remotely. Its professional mini XLR audio connector makes the body pack compatible with a broad range of lavalieres and headsets.

  • Features

    • Compatible with WMS4000 accessories - for multichannel systems in critical environments
    • 14 hours operation with one single battery - lowest operating costs using AA-size lithium dry battery
    • Pilot Tone transmission - for transmitter battery status monitoring and tone code squelch
    • Up to 48 simultaneous channels - when combining several frequency bands
    • Enhanced automatic setup with channel preview - for quick and easy system setup
  • Specifications

    • Audio
    • Audio Frequency bandwidth: 35 to 20000 Hz
    • Signal to Noise: 120 dB-A
    • THD at 1 kHz: 0.3 Prozent

    • Operating temperature range: -10 to 55 Celsius
    • Radio Sensitivity: -100 dBm

    • Switching bandwidth: 30 MHz
    • Recommended simultaneous channels: 32
    • Number of selectable frequencies: 1220 (selectable in 25kHz steps)
    • Frequency Selection: Selectable frequency in 25kHz steps
    • Wireless channels within device-
    • Radio Range (Line of Sight): 100m (depending on antenna system)
    • Switchable RF Power no
    • Modulation: FM (Frequency Modulation)
    • Encryption: No encryption
    • Diversity: Space Diversity
    • Pilot Tone: yes

    • Transmitter Synchronization: Infrared
    • Hi Qnet compatible: No
    • Rack size: 1/2 Racksize (19")
    • Rack height: 1 RU

      Antenna Interface
    • Amount: 2
    • Type: BNC
    • Gender: Female
    • Note: Radio input for connection to remote antennas

      Audio Outputs 1
    • Amount: 1
    • Type: Balanced XLR
    • Gender: Male
    • Contacts: 3-pin
    • Note: Balanced audio output level switchable to -30 or 0 dB

      Audio Outputs 2
    • Amount: 1
    • Type: Unbalanced Jack (6,3mm)
    • Gender: Female
    • Contacts: 3-pin
    • Note: Unbalanced audio output

      Powering Interface
    • Internal Power Supply no:
    • TypeLockable DC Socket
    • Voltage12 to 12 V

    • Body: Metal
    • Finish: black

      Dimensions / Weight
    • Length: 44 mm
    • Height: 202 mm
    • Width: 177 mm
  • Item Includes

    • 1 x SR470 Receiver
    • 1 x PT470 Body-pack transmitter

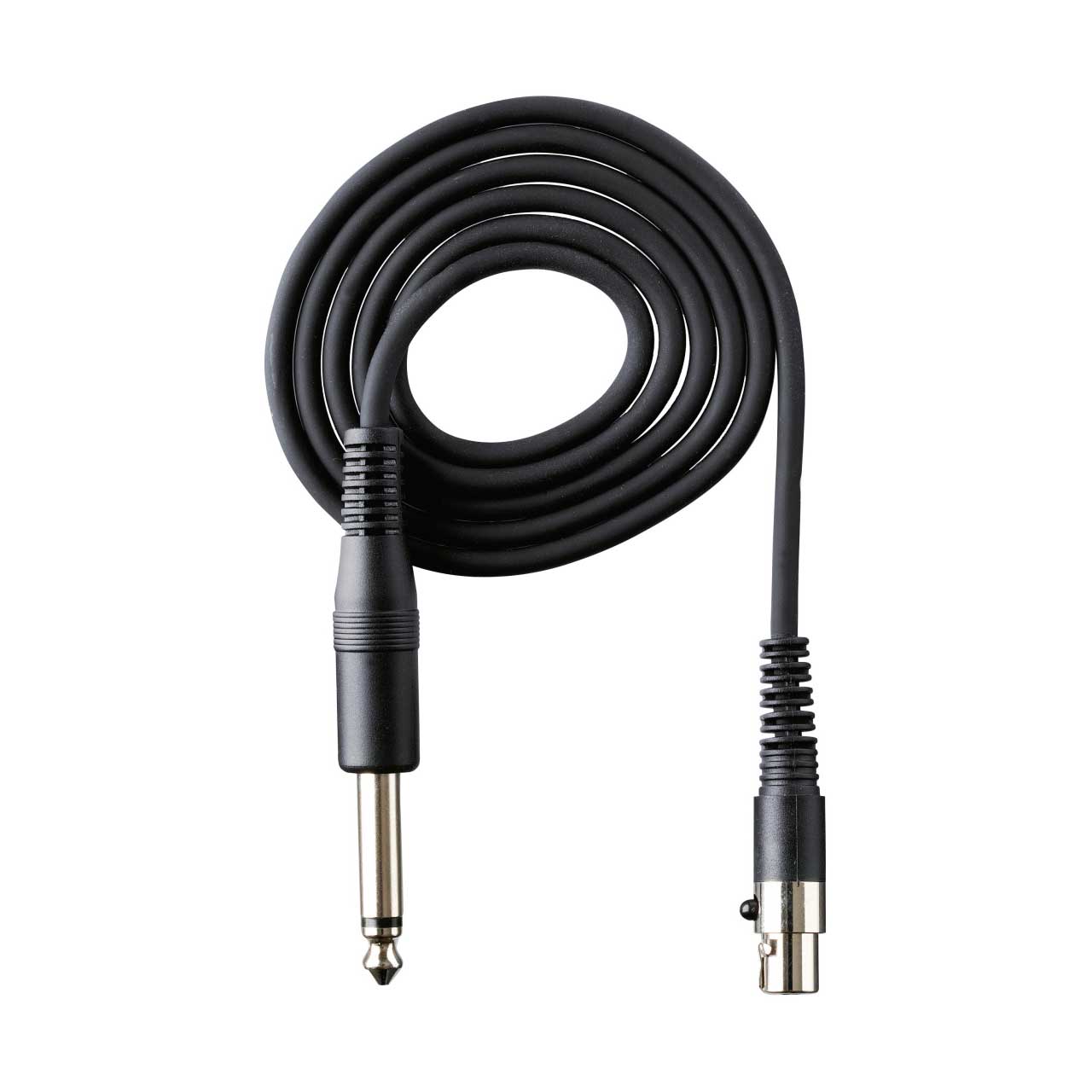

    • 1 x MKG L Instrument cable
    • 1 x Rack mount kit
    • 1 x Universal power supply with US/UK/EU adapter
    • 1 x AA size battery
    • 2 x Antennas
    • 1 x Belt clip
  • GTIN:
