Apantac KVM-IP-TX2 Mt Hood KVM Dual Head DVI over IP KVM Extender Transmitter

KVM-IP-TX2 - Overview

• Features:

  • Dual Head KVM extenders
  • Based on Gigabit Ethernet technology (IGMP and Jumbo frame)
  • Supports up to 170 meters point-to-point extension with CAT6 cable
  • Supports up to 100 meters when used with a GigE switch
  • Supports HDMI, DVI or VGA inputs and output signals
  • Supports point-to-point (unicast), point-to-multi-point (multicast) for audio/video distribution
  • Receiver has four USB ports that supports both HID and transparent USB (for USB storage and tablets)
  • Supports bi-directional stereo audio; embedded HDMI and external stereo input
  • Supports RS-232 communication between Tx and Rx
  • Built-in webpage for configuration
  • Connection manager software - KVM matrix control panel
  • Supports resolutions up to 1920x1080P (HDMI/VGA)/1920x1200 (DVI)
  • Advanced EDID management functionality. Built-in EDID, EDID pass through, copy EDID and sharing EDID.
  • Built-in scaler on the receivers
  • LED status indicators
  • Plug and play


• Specifications:

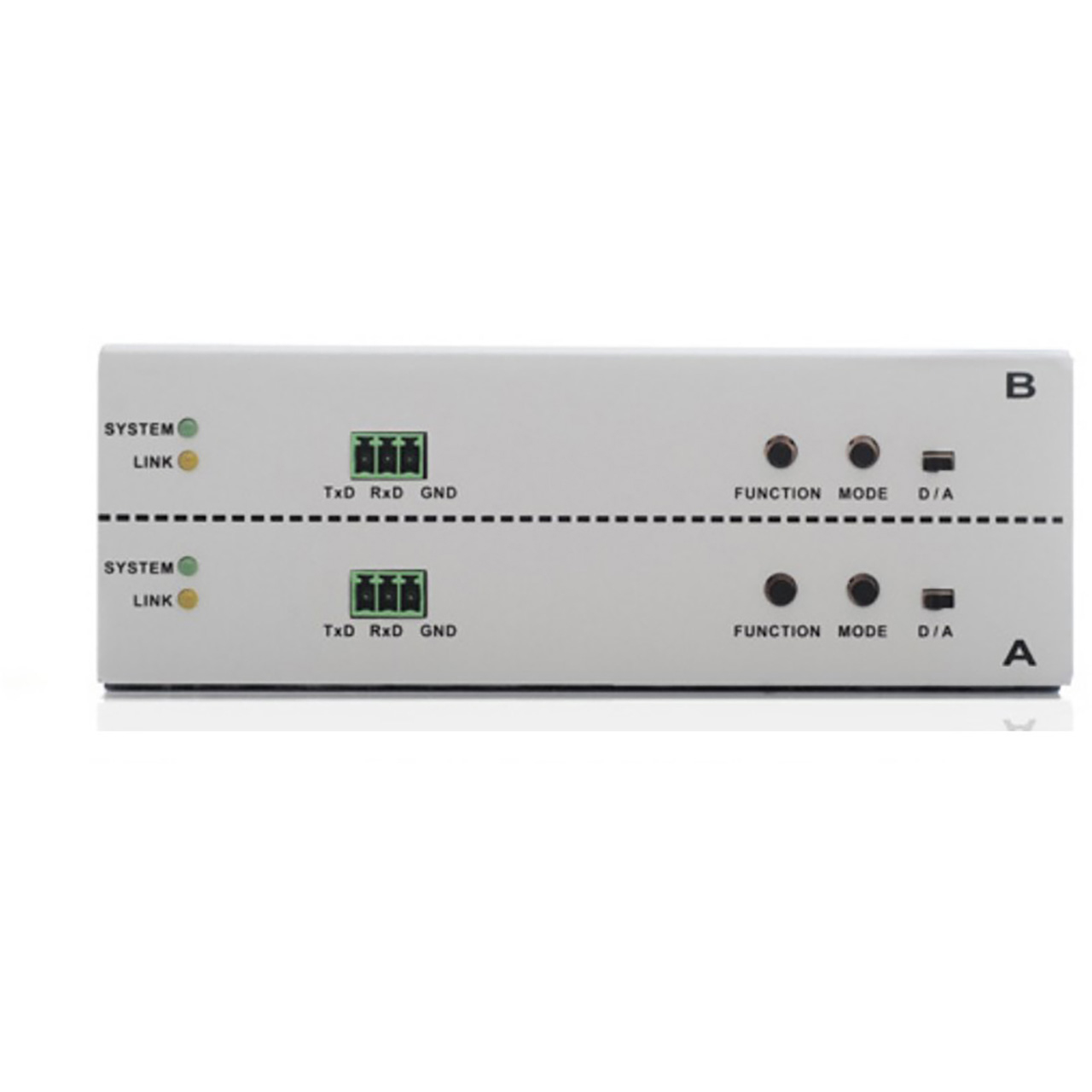

  Front View
  • 2x system status LED
  • 2x link status LED
  • 2x 3-pin - RS-232
  • 4x buttons - function & mode
  • 2x switch - D to A

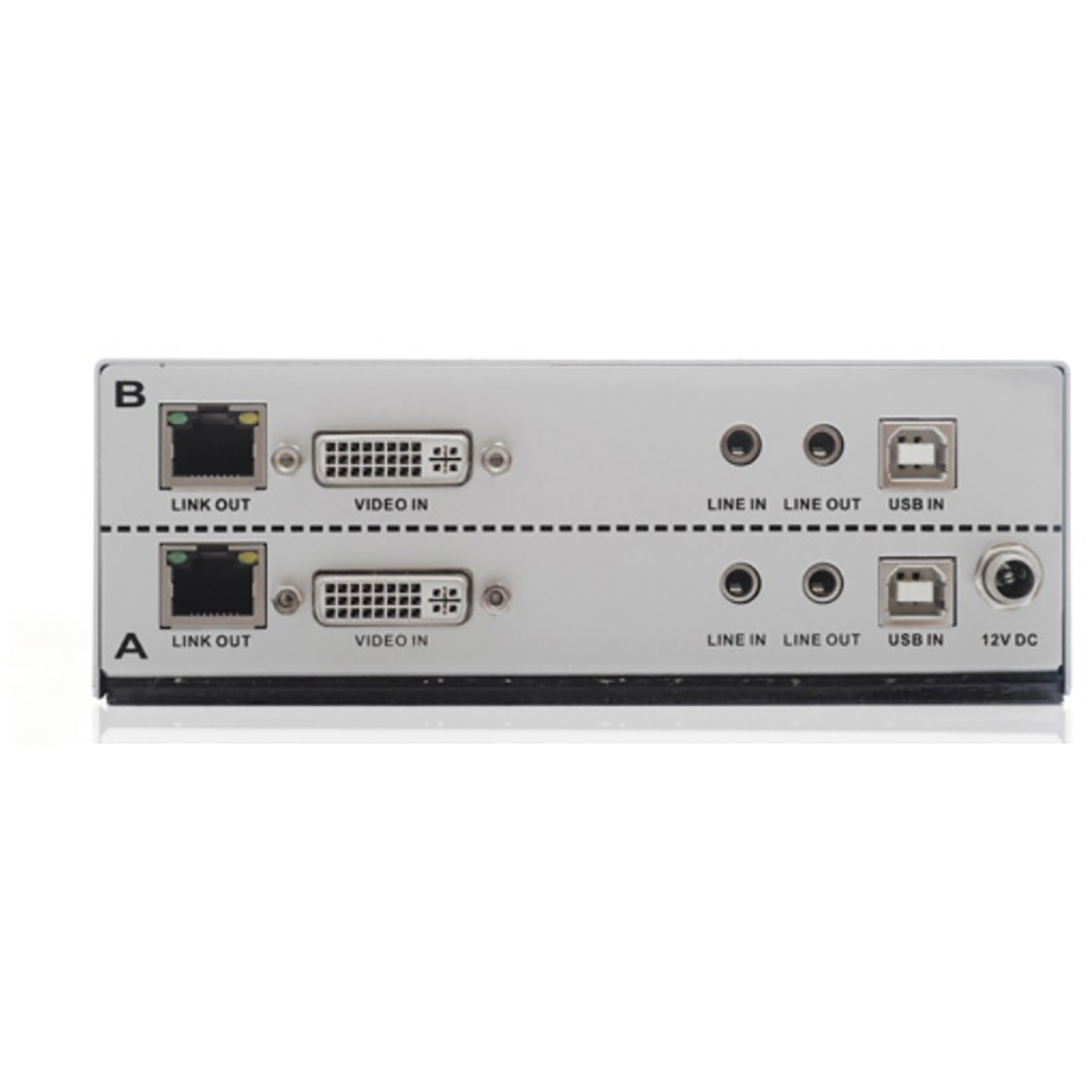

    Rear View
  • 2x RJ45 link out
  • 2x DVI-I (HDMI/DVI/VGA) input
  • 2x phone jack - audio line in
  • 2x phone jack - audio line out
  • 2x USB Type B (PC) In
  • 1x 12V DC
  • RS-232 Baud Rate: 3-pin Phoenix connector/Up to 115,200bps/Full duplex
  • Video Resolution:
    - HDMI/VGA: 1920x1080@60Hz
    - DVI: 1920x1200@60Hz
  • Interconnect Cable Standard: CAT6/CAT6a/CAT7 network cable
  • Maximum Cable Length: 170m point-to-point, 100m when connected to a switch
  • Temperatures:
    - Operating Temperature: 32°F - 122°F (0°C - 50°C)
    - Storage Temperature: -4°F - 185°F (-20°C - 85°C)
  • Environmental Humidity: 0% - 80% (non-condensing)
  • Power: DC 12V, 3.5A; Consumption 800mA
  • Weight: 2.20lbs (1000g)
  • Dimensions: 6.04" x 3.47" x 2.48" (153.4mm x 88.2mm x 63mm)


• Item Includes:

  • 1x Apantac KVM-IP-TX2 transmitter only
