Apantac KVM-SET-12-II MT Hood KVM-IP-Tx Extender and KVM-IP-Rx Receiver over IP Bundle

KVM-SET-12-II - Overview

• Features:

  • Based on Gigabit Ethernet Technology (IGMP and Jumbo frame)
  • Supports up to 170 meters point to point extension with CAT6 cable
  • Supports up to 100 meters when used with a GigE switch
  • Supports HDMI, DVI or VGA inputs and output signals
  • Supports point-to-point (unicast), point-to-multi-point (multicast) for audio/video distribution
  • Perform similarly to an expandable KVM switch when bundled with a GigE switch
  • Receiver has 4x USB ports that support both HID and transparent USB (for USB storage and tablets)
  • Supports bi-directional stereo audio; embedded HDMI and external stereo input
  • Supports RS-232 communication between Tx and Rx
  • Built-in webpage for configuration
  • Connection manager software for Tx/Rx management
  • Supports resolutions up to 1920x1080P (HDMI/VGA) / 1920x1200 (DVI)
  • Advanced EDID management functionality. Built-in EDID, EDID pass through, copy EDID and sharing EDID
  • Built-in scaler
  • LED status indicators
  • Plug and play


• Specifications:

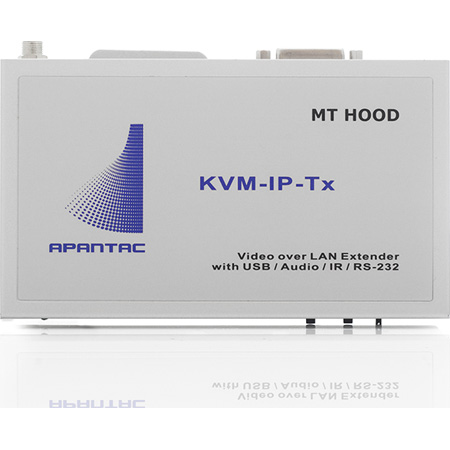

  • KVM-IP-Tx
  • Description: Transmitter
  • Video Input: DVI-I (HDMI/DVI+VGA)
  • Output: N/A
  • Audio Input: 3.5mm Stereo phone Jack
  • Audio Output: 3.5mm Stereo phone Jack
  • Microphone: N/A
  • USB Upstream: USB Type B (Female)
  • USB Downstream: N/A
  • System Link Input: N/A
  • System Link Output: RJ-45
  • IR Frequency: 3.5mm stereo phone Jack 20 ~ 60 KHz
  • RS232 / Baud Rate: 3-pin Pheonix Terminal Block / up to 115,200 bps / Full Duplex
  • Video Resolution: HDMI/VGA: 1920x1080@60Hz / DVI: 1920x1200@60Hz
  • Interconnect Cable: Standard CAT6/6a/7 network cable
  • Maximum Cable Length: 170m point to point, 100m when working with a switch
  • Operating Temperature: 0 ~ 50°C
  • Storage Temperature: -20 ~ 85°C
  • Environmental Humidity: 0 ~ 80% (Non-condensing)
  • Power Consumption: 400mA
  • Power Supply: DC 12V, 1.5A
  • Weight: 600g
  • Dimensions: 153.4 x 88.2 x 31.5 mm

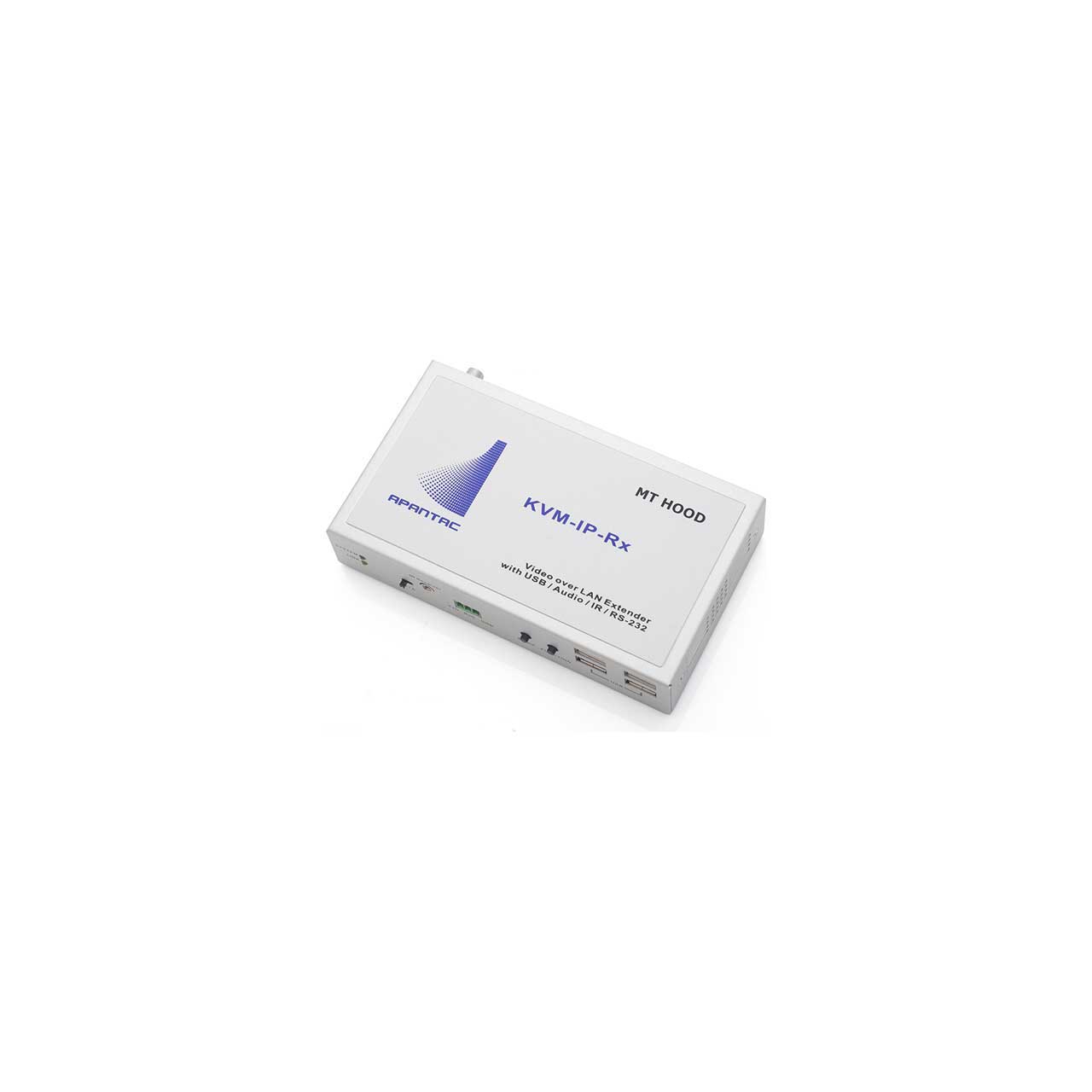

    KVM-IP-Rx
  • Description: Receiver
  • Video Inputs: N/A
  • Video Outputs: DVI-1 (HDMI/DVI+VGA)
  • Audio Inputs: 3.5mm Stereo phone Jack
  • Audio Outputs: N/A
  • Microphone: 3.5mm Stereo phone Jack
  • USB Upstream: N/A
  • USB Downstream: 4 USB Type A (Female)
  • System Link Input: RJ45
  • System Link Output: N/A
  • IR Frequency: 3.5mm stereo phone Jack 20 ~ 60 KHz
  • RS232 / Baud Rate: 3-pin Pheonix Terminal Block / up to 115,200 bps / Full Duplex
  • Video Resolution: HDMI/VGA: 1920x1080@60Hz / DVI: 1920x1200@60Hz
  • Interconnect Cable: Standard CAT6/6a/7 network cable
  • Maximum Cable Length: 170m point to point, 100m when working with a switch
  • Operating Temperature: 0 ~ 50°C
  • Storage Temperature: -20 ~ 85°C
  • Environmental Humidity: 0 ~ 80% (Non-condensing)
  • Power Consumption: 400mA
  • Power Supply: DC 12V, 1.5A
  • Weight: 600g
  • Dimensions: 153.4 x 88.2 x 31.5 mm


• Item Includes:

  • 1x KVM-IP-Tx: KVM Extender (Transmitter)
  • 1x KVM-IP-Rx: KVM Receiver (Receiver)
  • 2x 12 V DC power supply
  • 1x Type A to Type B USB Cable comes with KVM-1-EH-LAN
