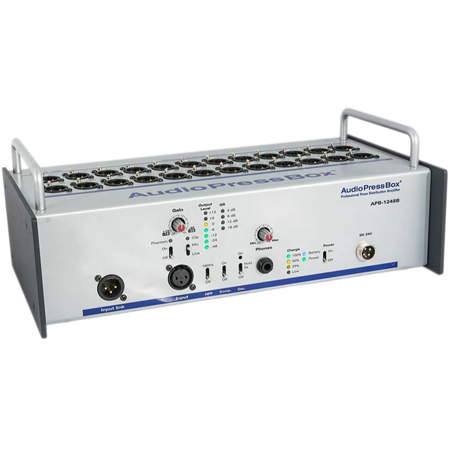

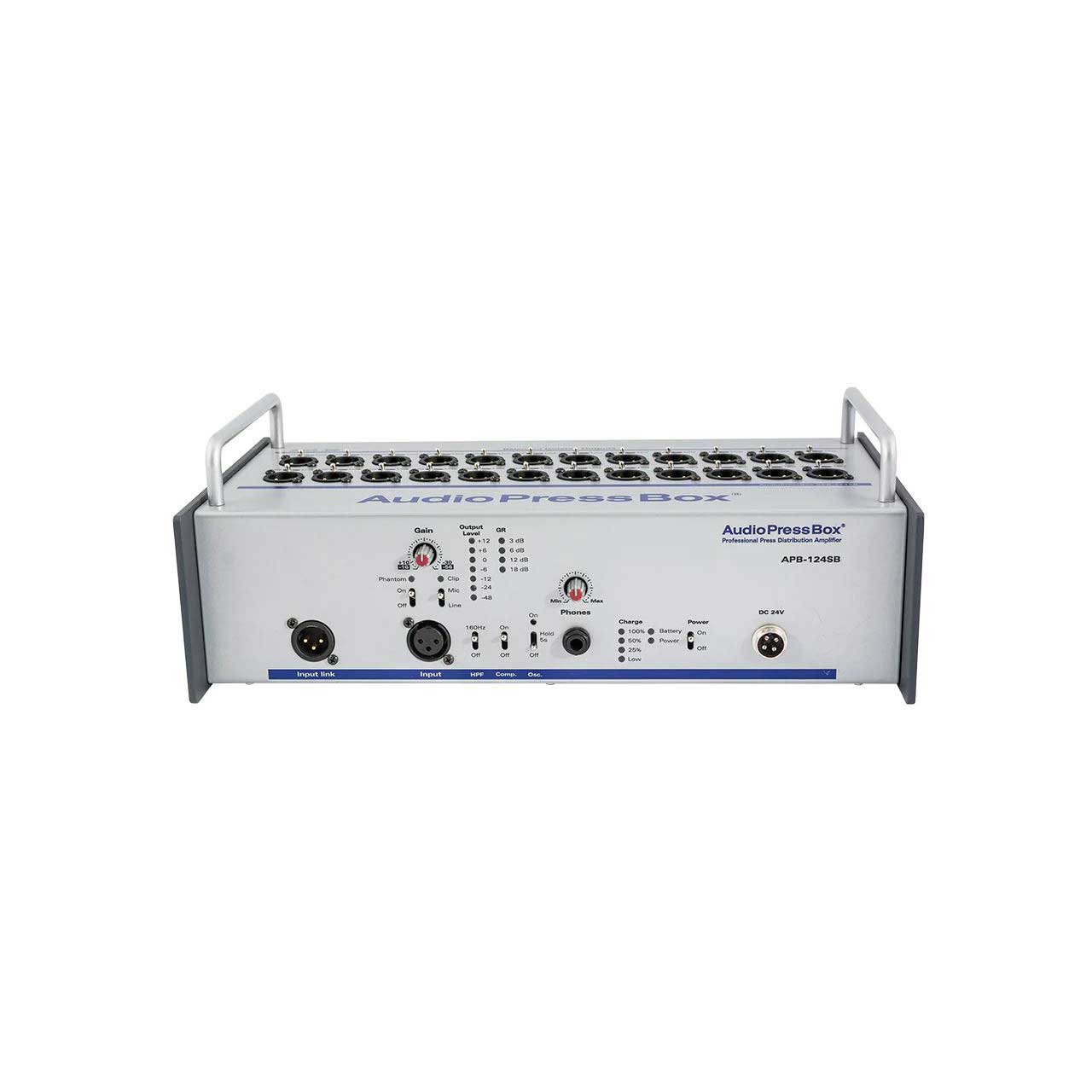

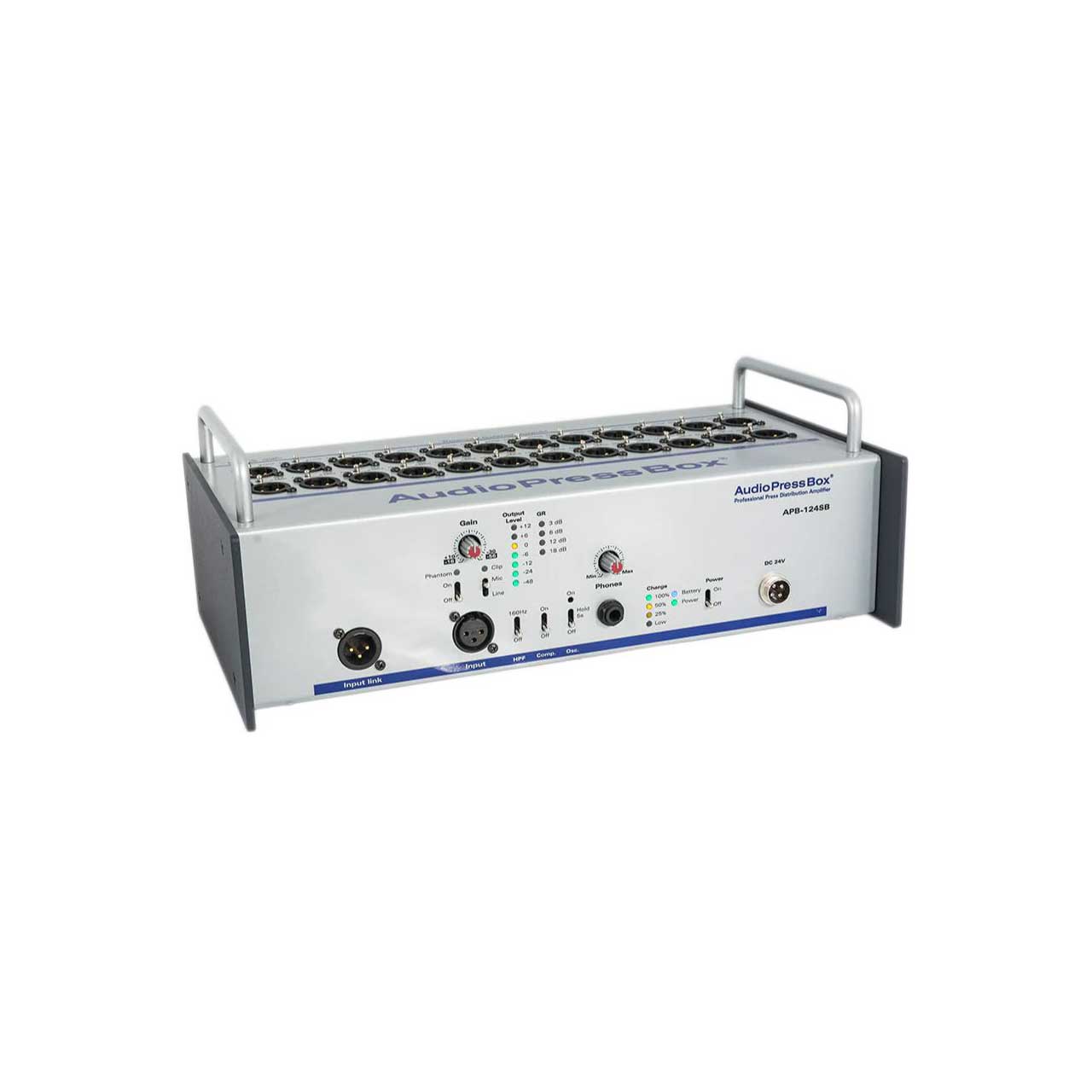

APB-124 SB - Overview

The APB-124 SB is a professional portable active press box (Audio Splitter) suitable for both indoor and outdoor press conferences. It features 1 MIC/Line Input and 24 Line/Mic Outputs. Each Output is independently transformer balanced and isolated. The APB-124 SB also includes a rechargeable AccuPack Battery so it can run on its own up to 8 hours and a link Output so you can daisy chain more if you need additional Line/MIC Outputs.

PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • 1 MIC (phantom power) / LINE Input - balanced with gain control and 26dB PAD

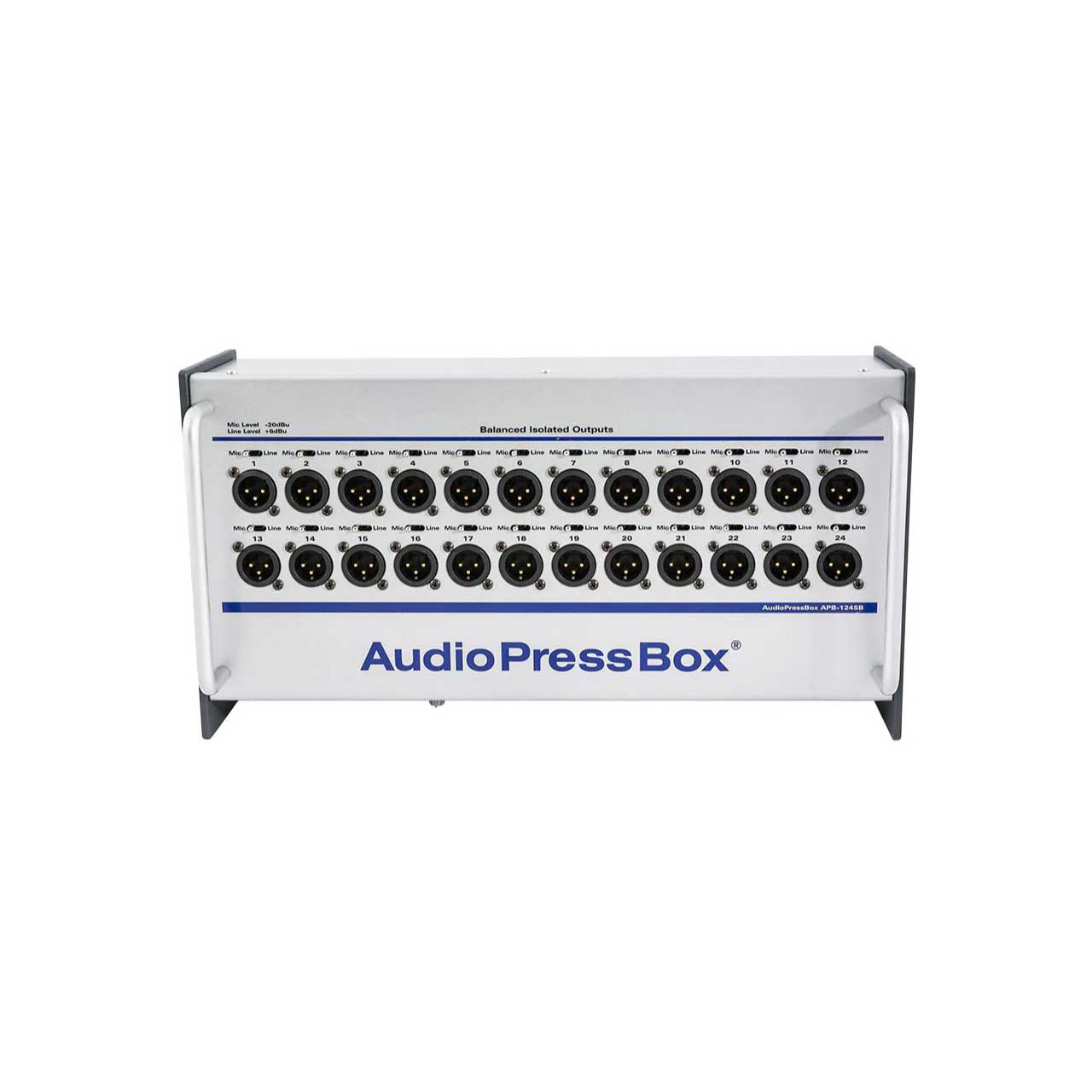

    • 24 High quality independent transformer balanced and isolated outputs
    • Each Output is switchable between MIC or LINE level
    • Switchable High-Pass filter for each Input channel
    • Switchable Compressor and Limiter for each Input channel
    • Constant level Test signal oscillator with no mistake switch operation
    • Li-Ion AccuPack with microprocessor controlled battery management
    • 8 hour full load capacity. Note: AccuPack is placed inside the unit

  • Specifications:

    • Type: 1 in 24
    • Groups: 1
    • Input section
    • Inputs: 1
    • Input connectors: Balanced, XLR
    • Max. input level: Limiter ON - Mic: -10/-30dBu - Line: +36/-4dBu
    • Limiter OFF: Mic: -2/-42dBu - Line: +24/-16dBu
    • Phantom Voltage: 48V
    • Input Impedance: Mic: 2,4 kOhm Line: 3,5 kOhm
    • Output section
    • Outputs: 24 MIC/LINE level
    • Output connectors: Balanced, XLR
    • Nominal Output Level: +6dBu
    • Maximum Output Level: +20dBu (no load)
    • Output impedance: Mic: 220 Ohm Line: 600 Ohm
    • Transformer isolated outputs: Yes (each output)
    • SNR: 86dB
    • Frequency Response: 30/160Hz (filter) to 30kHz/-1dB
    • Controls: Mic/Line PAD, Input gain, Phantom, High-pass filter, Compressor, Oscillator, Phones level, Power, Output PAD
    • Indicators: Input clip, Phantom power, Output level, Gain reduction, Power, Battery status

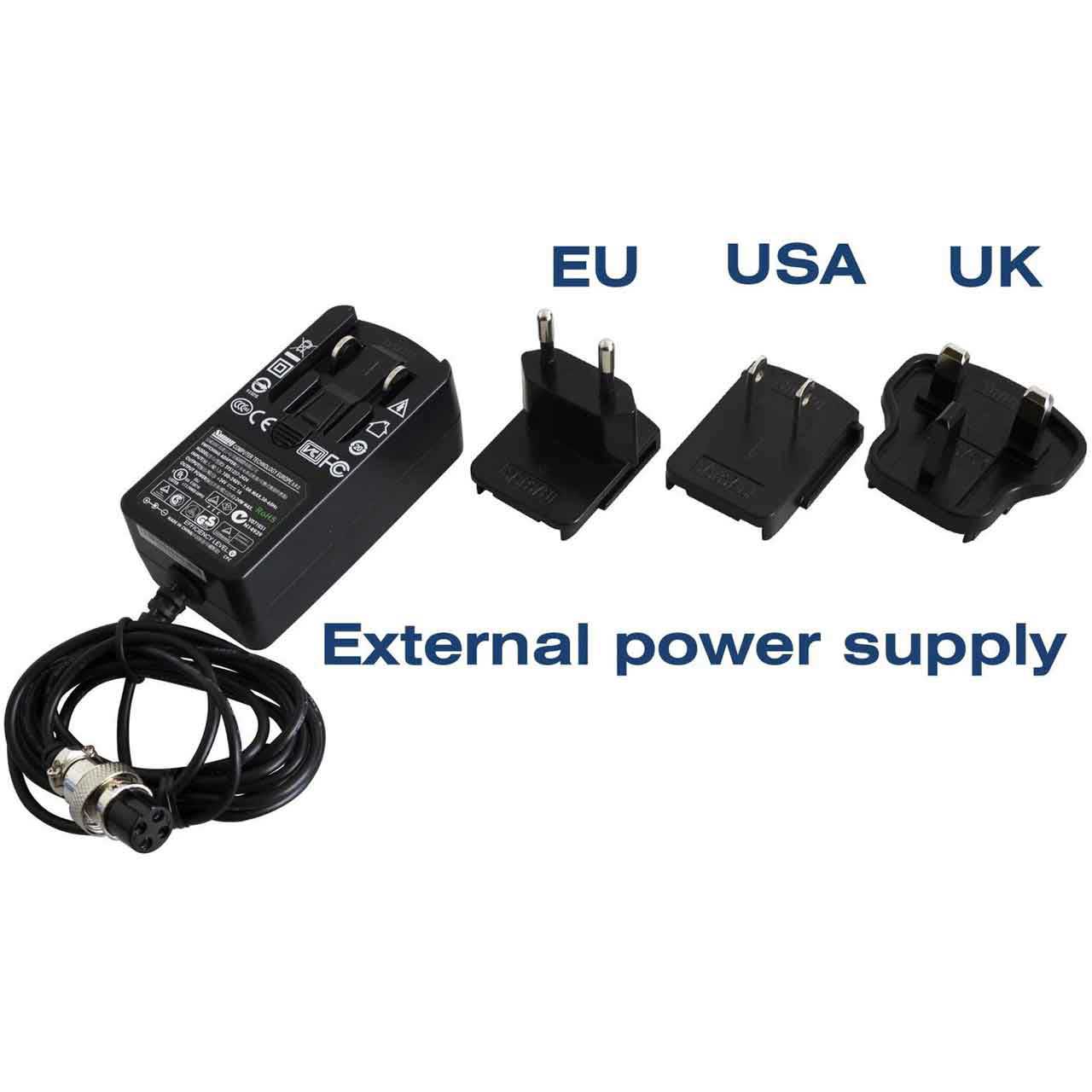

    • Power Supply: 24V DC, 1A external adaptor
    • Battery: Li-Ion, 14,4V 2200mAh
    • Battery Operation Time: min. 12hrs
    • Dimensions (WxHxD): 365x195x135mm
    • Weight: 4530 g
