Whirlwind PRESSPOWER3 4RU Active Microphone Pressbox with Case - 2 Mic/Line Inputs with Individual Gain Controls


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    PRESSPOWER 3 - Overview

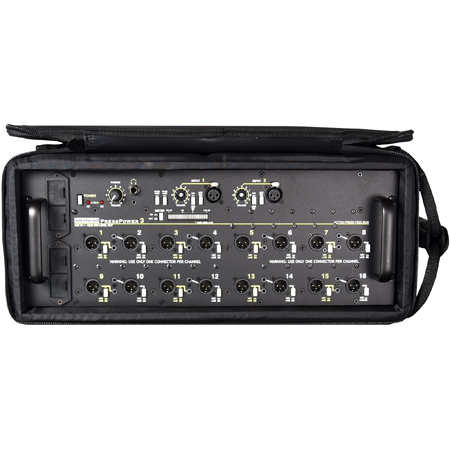

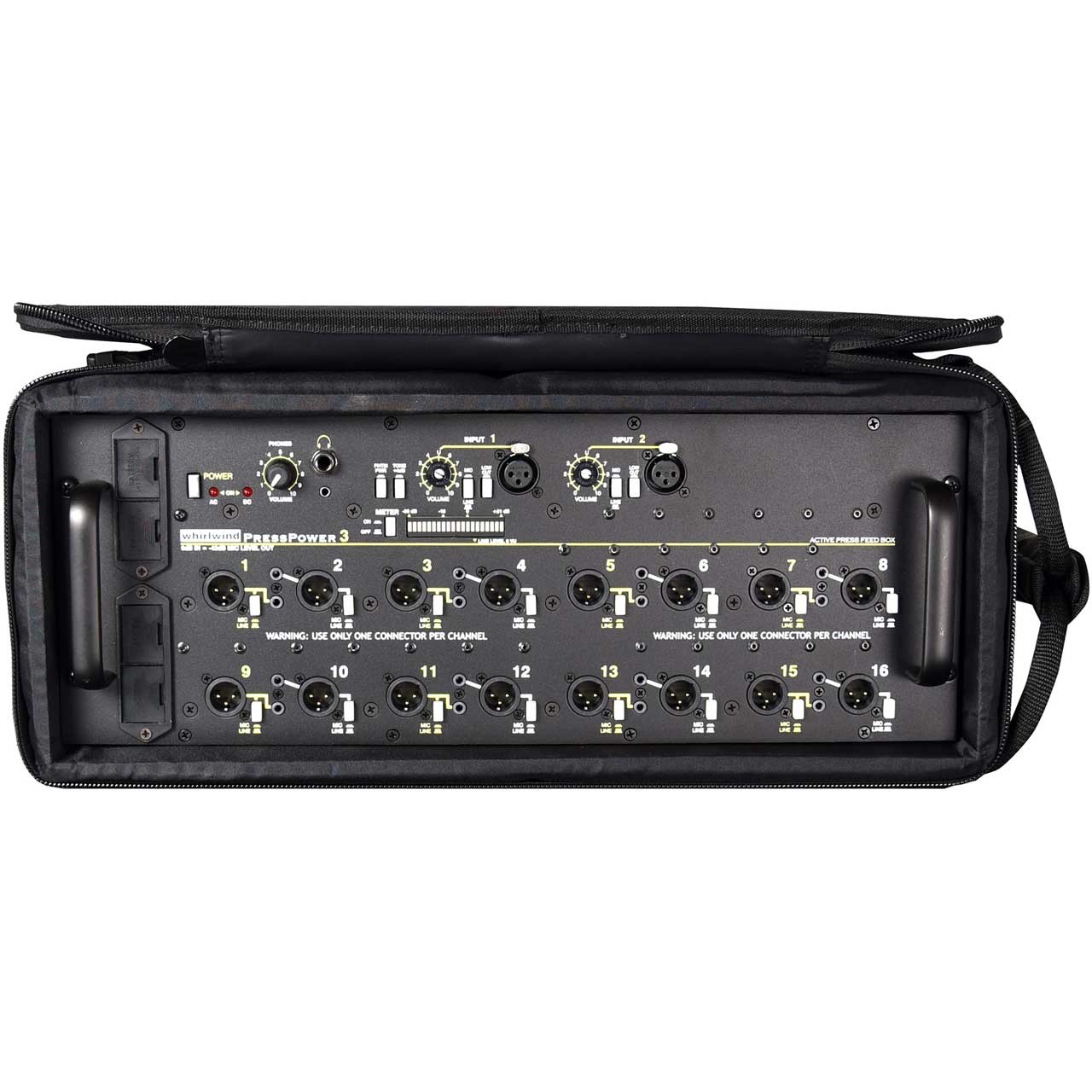

    It features 2 mic/line inputs with individual gain controls and 16 transformer isolated outputs that are individually switchable for mic or line level operation. The Whirlwind PRESSPOWER 3 includes a 20-segment LED level meter, an internal test tone generator, a built-in headphone monitor amp with volume control, high-pass filters, and phantom power -- all conveniently front-panel accessible.

    The high-performance input stage provides clean audio even in high RF environments.

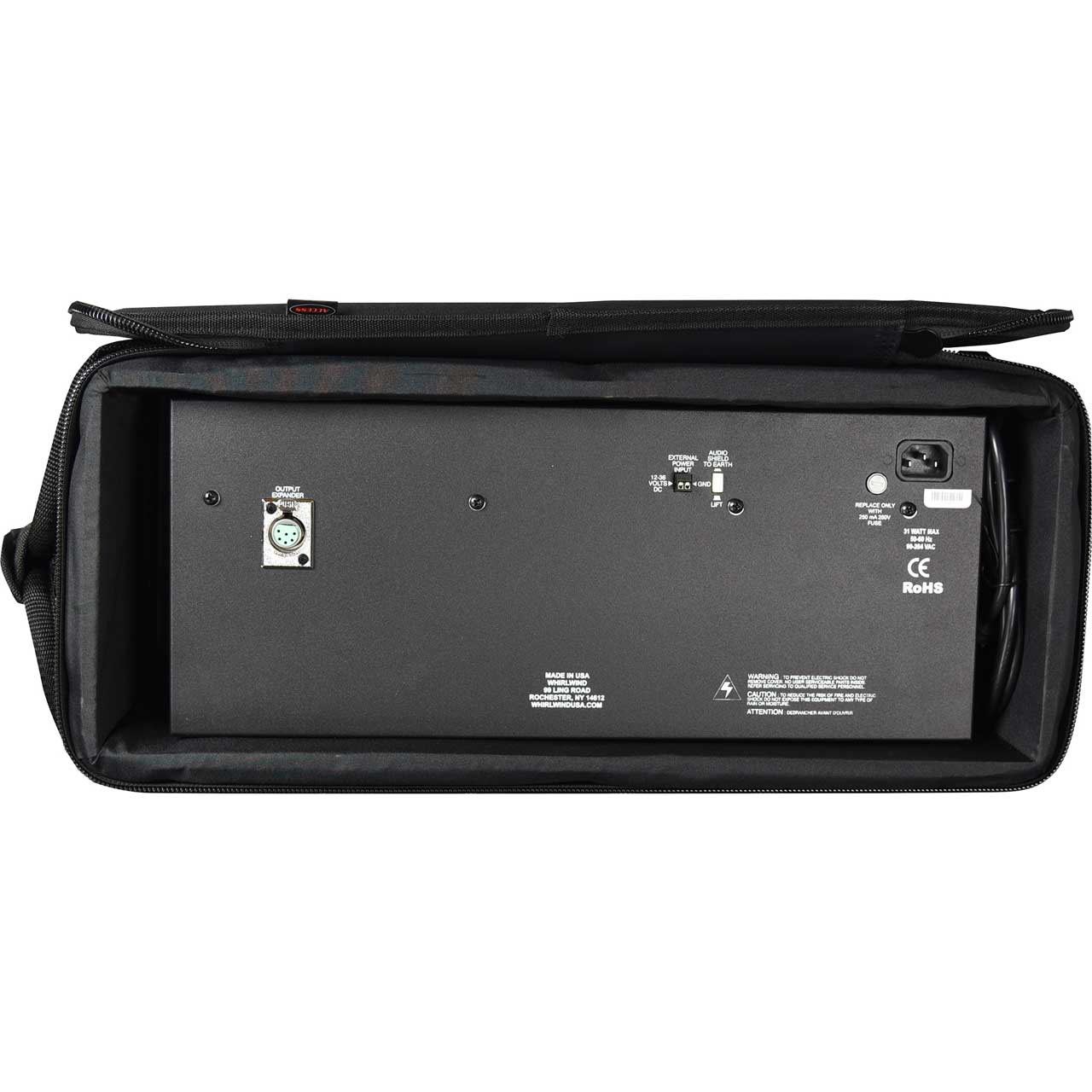

    The unit can be powered by 115 / 230 VAC - 50 / 60 Hz, by (4) 9 V internal batteries or with an external DC supply (12 - 36 VDC) connected via rear terminals. This allows the unit to be powered by a car battery, cigarette lighter, camera pack battery, etc. In the event of an AC power failure or battery exhaustion, the unit will automatically switch to alternate power by selecting the strongest Voltage available.

    Additional active mic/line outputs can be added with an optional 16 channel PRESS2XP expander modules, giving you 32 total active outputs. Additional mic outputs can be achieved by adding passive PB Series Press Boxes to outputs set to line level.

    • Specifications:

      • Frequency Response:
      • -.5dBm 20Hz to -2dBm 16kHz

        Input Impedance:
      • Mic: 1.5k Ohms
      • Line: 200k Ohms

        Maximum Input Level:
      • Mic: -5dBm
      • Line: +50dBm

        Output Impedance:
      • Mic: 150 Ohms
      • Line: 150 Ohms

        Maximum Output Level:
      • Mic: -5 dBm into 2k Ohms
      • Line: +23 dBm into 2k Ohms

        Total Harmonic Distortion:
      • .075% at 1 kHz, mic @ unity gain

        Isolation Between Outputs:
      • Mic: Greater than 95 dBm
      • Line: Greater than 60 dBm

        Power Draw AC mode:
      • 31 W max.

      • Size (inside case): 20" X 9.5" X 8.5"
      • 4RU removed from case.
      • Weight w/ case: 17 lb.
      • Weight w/ out case: 12 lb.
      • Shipping weight w/ case: 20 lb.
    • Item Includes:

      • 1x Whirlwind PRESSPOWER3 4RU Active Microphone Pressbox with Case - 2 Mic/Line Inputs with Individual Gain Controls

    PRESSPOWER 3 - Required Accessories
